Karcher (Керхер) Управление педаль (0.206-919.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

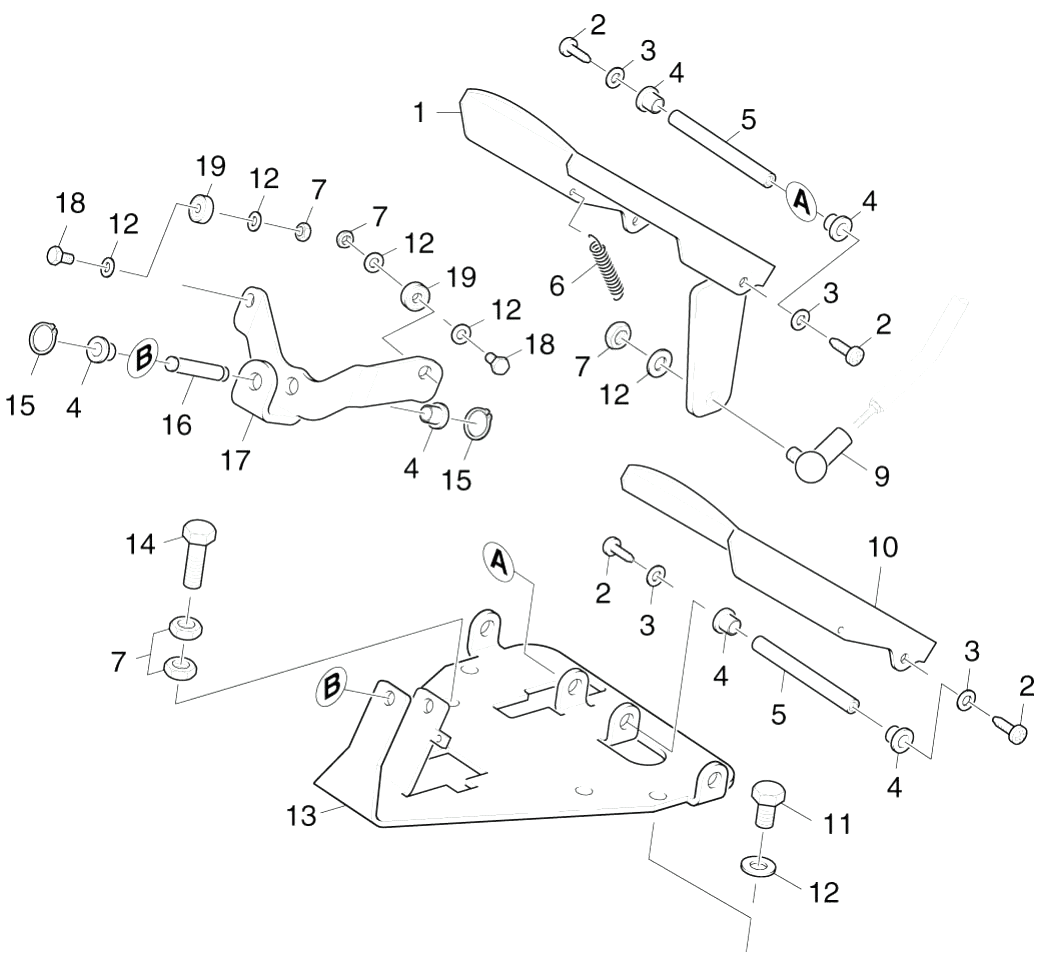

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.481-141.0	Pedal complete
2	7.306-181.0	Screw M 5x 12-A2-70 (In6Rd)
3	7.312-002.0	Washer 5-200HV-A3E ISO 7090
4	6.437-485.0	Bearing bush
5	5.316-879.0	Bolt
6	6.330-056.0	Extension spring
7	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
8	7.462-013.0	Fork head G8x32 -St-A2E DIN71752
9	6.431-159.0	Bowden wire brake right
9	7.462-023.0	Angle joint CS13 -A2E DIN 71802
10	6.431-158.0	Bowden wire brake left
10	5.481-283.0	Pedal backwards
11	6.413-029.0	Extension spring
11	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
12	7.306-181.0	Screw M 5x 12-A2-70 (In6Rd)
12	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
13	7.312-002.0	Washer 5-200HV-A3E ISO 7090
13	4.038-824.0	Sheet metal component complete base plat
14	6.437-485.0	Bearing bush
14	7.304-407.0	Hexagonal head screw M 8x45-8.8-A2E ISO
15	5.316-879.0	Bolt
15	7.343-014.0	Locking ring 8x0,8-FST-PHR DIN 471
16	5.316-872.0	Bolt
17	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
17	5.048-302.0	Sheet metal component
18	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
18	7.462-009.0	Fork head G 6x12-ST-A2E DIN 71752
18	7.306-042.0	Cylinder head screw M8x25 -8.8-A2E ISO4
19	5.443-347.0	Hose stem
19	5.001-928.0	Plate locking pawl brake
19	7.401-149.0	Ball bearing 608-2RS -W?lzl.St DIN 625
20	6.388-517.0	Hose clip
20	6.431-129.0	Bowden wire complete
20	6.431-220.0	Bowden wire complete
21	5.441-005.0	Piece of tube barrel recoil DN 5,5
21	6.316-093.0	Bolt D 6
22	6.388-555.0	Hose clip 9,0mm
23	6.970-156.0	Fuel valve
23	7.316-214.0	Bolt B-10x14 -St-A2E ISO 2341
24	6.414-685.0	Filter gasoline
24	7.316-341.0	Cotter 3,2x16-St-A2E ISO 1234
26	5.017-548.0	Angle brake light switch
30	6.330-163.0	Leg spring
31	5.049-788.0	Sheet metal component switch brake light
37	7.303-032.0	Screw M4x12 -St-R2R (In6Rd)
38	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
39	6.630-130.0	Switch
40	4.481-180.0	Pedal complete
