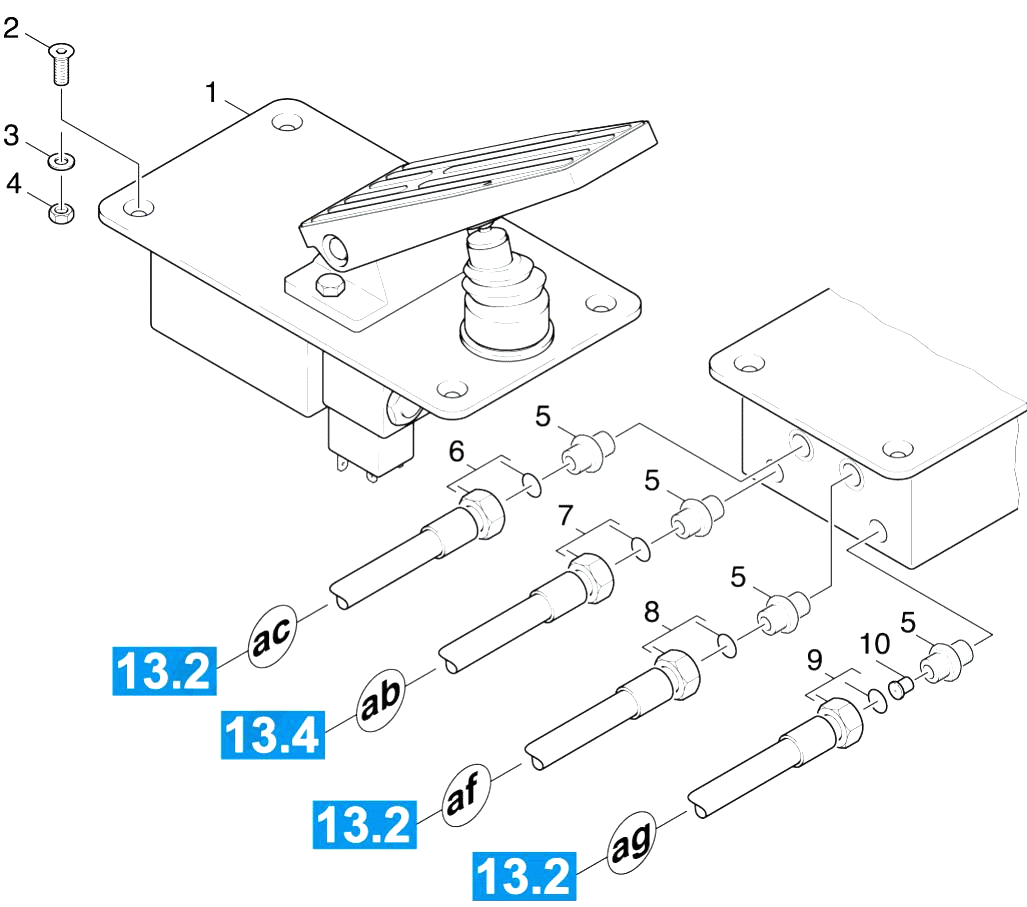

Karcher (Керхер) Педаль гидравлическая система (0.207-797.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.439-191.0	Pedal
2	7.305-031.0	Countersunk screw M6x16-8.8-A2R (In6Rd)
3	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
4	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
5	6.386-163.0	"""Connection piece 8-L G1/4"""" """
6	6.391-070.0	Hydraulic hose
7	6.391-072.0	Hydraulic hose
8	6.391-069.0	Hydraulic hose
9	6.391-071.0	Hydraulic hose
10	5.665-022.0	Throttle throttle pedal
11	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
12	6.310-126.0	Cage nut zinc-plated M 8
13	7.362-003.0	Joint ring A10x13,5 -Cu DIN 7603
15	5.441-006.0	Piece of tube intake DN7,5
16	7.306-047.0	Cylinder head screw M8x60 -8.8-A2E ISO4
17	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
18	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
19	5.443-347.0	Hose stem
20	6.388-517.0	Hose clip
21	5.441-005.0	Piece of tube barrel recoil DN 5,5
22	6.388-555.0	Hose clip 9,0mm
23	6.970-156.0	Fuel valve
24	6.414-685.0	Filter gasoline
