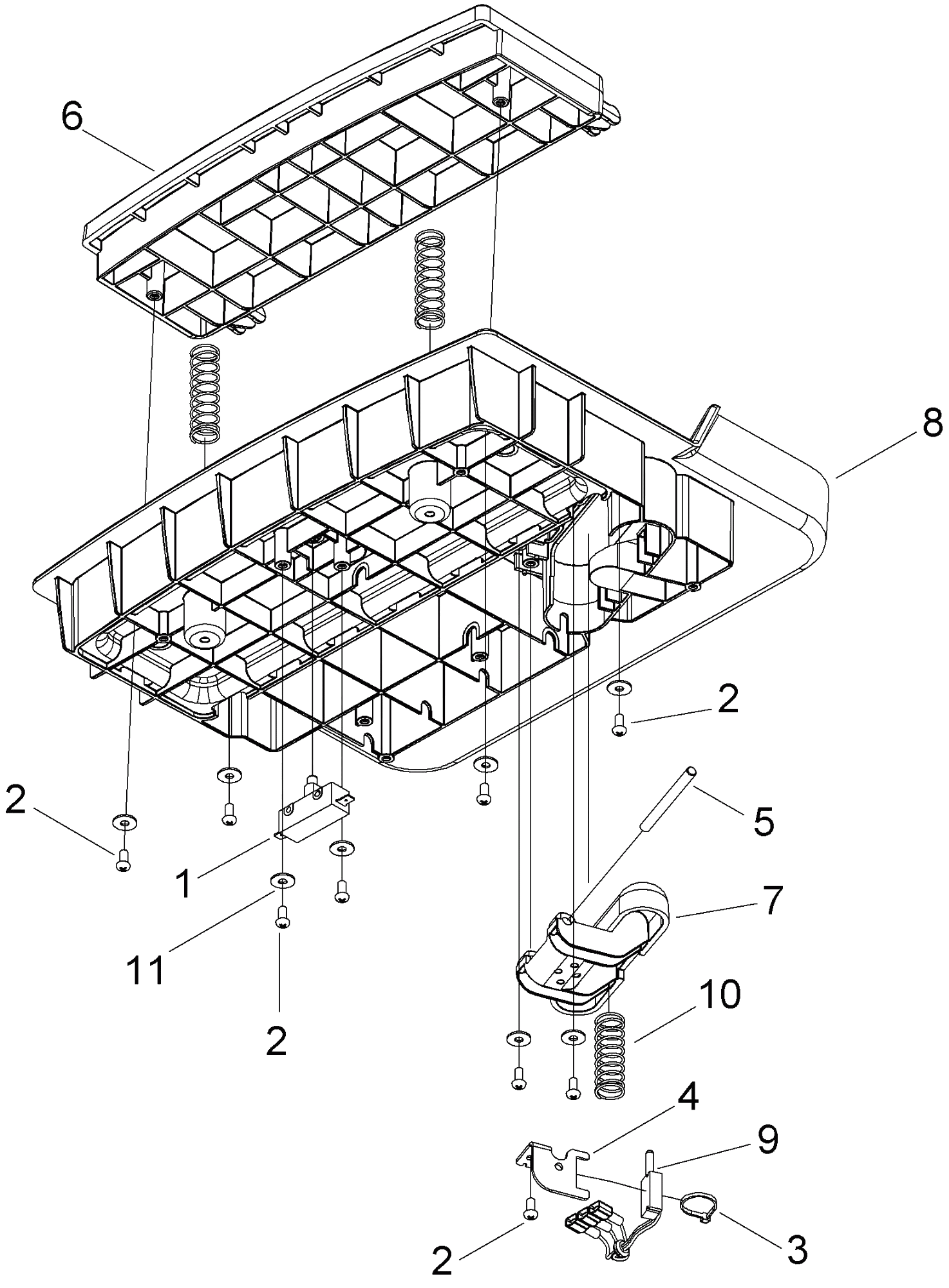

Karcher (Керхер) Педаль детали (0.165-973.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.600-711.0 |
Switch 25A SPST 125-250V SNAP |
|
| 1 |
8.627-264.0 |
PIN, CLEVIS 3/8 X 1.13 PLTD |
|
| 1 |
8.600-017.0 |
"""PAD DRIVER, 12"""" SD """ |
|
| 1 |
8.627-161.0 |
Nut 5/8-18 HEX NYLOCK THN |
|
| 1 |
8.600-489.0 |
KNOB,ALUM 3/8-16 NYLOCK NUT SS |
|
| 1 |
6.273-213.0 |
Rubber lip set standard |
|
| 1 |
6.273-207.0 |
Rubber lip set oil resistant BR-BD530,55 |
|
| 1 |
6.273-229.0 |
Rubber lip set anti stripe oil resistant |
|
| 1 |
8.629-104.0 |
BRKT, SIDE CHNL DLX, BLK |
|
| 1 |
8.623-317.0 |
CLAMP, 3/8 NYLON UL/CSA |
|
| 1 |
8.600-693.0 |
Screw 5/16-18 X 1.00 BSHCS SS |
|
| 1 |
2.860-166.0 |
Toolkit steering wheel blower ICC1/ICC2 |
|
| 2 |
8.617-298.0 |
SCR, KA50X10,PT OHS,WN1412,PLTD |
|
| 2 |
8.627-678.0 |
SCR, 5/16-18 X 3/4 HHCS SS |
|
| 2 |
8.600-020.0 |
"""Brush 12"""" MILD GRIT SD """ |
|
| 2 |
8.600-018.0 |
"""Brush 12"""" POLYPROPYLENE SD """ |
|
| 2 |
8.600-019.0 |
"""Brush 12"""" NYLON SD """ |
|
| 2 |
8.628-382.0 |
"""BRUSH, 12"""" SUPER AGGRESSIVE SD """ |
|
| 2 |
6.640-353.0 |
Cap steering wheel K?RCHER |
|
| 2 |
8.600-627.0 |
PIN, CLEVIS 5/16 X 1.63 PLTD |
|
| 2 |
5.128-339.0 |
Additional weight suction bar |
|
| 2 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 2 |
8.626-492.0 |
"""CABLE TIE, 7"""" UL/CSA """ |
|
| 2 |
8.619-704.0 |
NUT, 5/16-18 HEX ACORN PLTD |
|
| 2 |
8.600-153.0 |
HOSEBARB, 1/2MPT X 1/2 HOSE 90 |
|
| 3 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 3 |
8.600-507.0 |
Lock PAD CENTER SNAP,TWO STEP |
|
| 3 |
6.435-799.0 |
Steering wheel |
|
| 3 |
8.600-778.0 |
Spring COMP .60D X2.0L X.045W |
|
| 3 |
2.885-326.0 |
End piece left / right spare parts set |
|
| 3 |
8.627-607.0 |
SCR, 5/16-18 X 3/4 CARRIAGE SS |
|
| 3 |
8.625-497.0 |
SPRING, COMP 18MMOD X 83 X 2 |
|
| 3 |
8.601-067.0 |
Washer 5/16 FLAT SS |
|
| 3 |
8.618-821.0 |
NIP, 1/2 X 3/8 HEX BR |
|
| 4 |
8.632-615.0 |
BRKT, LINEAR POT |
|
| 4 |
7.311-006.0 |
Hexagon nut M10 -8-A3E ISO 4032 |
|
| 4 |
8.629-193.0 |
KIT, DRIVER HARDWARE |
|
| 4 |
8.600-563.0 |
NUT HEX NYL LOC-THIN SS 3/8-16 |
|
| 4 |
8.627-746.0 |
SCR, 5/16-18 X 5/8 BSHCS SS |
|
| 4 |
8.622-185.0 |
LINK, THROTTLE |
|
| 4 |
8.622-884.0 |
Bearing FLANGED.314IDX.502OD |
|
| 4 |
8.627-689.0 |
Screw 5/16-18X3/4 PTHMS SS |
|
| 4 |
8.624-801.0 |
Nut 8-32 ACORN CAP, PLATED |
|
| 5 |
8.632-614.0 |
PIN, DOWEL .25 X 2.75, STEEL |
|
| 5 |
7.310-041.0 |
Knurled nut M10- St-E2E DIN 467 |
|
| 5 |
6.371-234.0 |
Diamond pad green set 5x ?306 |
|
| 5 |
6.371-249.0 |
Diamond pad yellow set 5x ?306 |
|
| 5 |
8.622-879.0 |
Bearing FLANGE .88ODX.75IDX.75 |
|
| 5 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 5 |
5.033-601.0 |
Suction nipple |
|
| 5 |
8.601-393.0 |
BRKT, SIDE CHNL L, BLK |
|
| 5 |
8.627-738.0 |
SCR, M4.8 X 16 PHTF |
|
| 5 |
8.625-941.0 |
Washer THRUST.51 ID X1ODX.063 |
|
| 5 |
8.601-067.0 |
Washer 5/16 FLAT SS |
|
| 6 |
8.633-424.0 |
PEDAL, HEEL, BLK |
|
| 6 |
8.627-466.0 |
SCR, 3/8-16 X 1.5 HHCS GR5 PLT |
|
| 6 |
6.371-248.0 |
Diamond pad white set 5x ?306 |
|
| 6 |
8.631-483.0 |
Зажим |
|
| 6 |
8.601-067.0 |
Washer 5/16 FLAT SS |
|
| 6 |
7.306-142.0 |
Cylinder head screw M 8x25-A4-70 ISO 47 |
|
| 6 |
8.600-711.0 |
Switch 25A SPST 125-250V SNAP |
|
| 6 |
8.625-940.0 |
Washer THRUST.51 ID X 1 ODBRO |
|
| 6 |
8.627-913.0 |
Washer 5/16 SPLIT LOCK PLTD |
|
| 7 |
8.633-469.0 |
PEDAL, ACCELERATOR, YEL |
|
| 7 |
8.632-058.0 |
BRKT, DECK LINKAGE |
|
| 7 |
8.600-561.0 |
Nut 7/8 DIA PUSHLOCK |
|
| 7 |
8.600-135.0 |
BUSHING, SPANNER .435 X 1.10 |
|
| 7 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 7 |
8.622-475.0 |
SPRING, COMP, .48OD X .91L |
|
| 7 |
8.625-489.0 |
Spring EXT, .50D X 4.0L |
|
| 8 |
8.633-423.0 |
PLATFORM, OPERATOR, BLK |
|
| 8 |
8.600-577.0 |
Nut 3/8-16 HEX NYLOCK |
|
| 8 |
8.631-709.0 |
RING, EXT PUSH ON RTNR, 3/4 |
|
| 8 |
8.601-102.0 |
"""Wheel 3"""" DIA CUSHION RUBBER """ |
|
| 8 |
8.627-806.0 |
Screw set M4 X 4MM NP |
|
| 8 |
8.619-943.0 |
"""CASTER SWIVEL 4"""" 250# CPCTY """ |
|
| 8 |
8.631-579.0 |
BRKT, BUMPER MTG |
|
| 9 |
8.631-156.0 |
POTENTIOMETER ASM, LINEAR |
|
| 9 |
8.600-573.0 |
Nut 3/8-16 HEX |
|
| 9 |
8.621-960.0 |
JOINT, UNIVERSAL FEMALE |
|
| 9 |
8.600-565.0 |
Nut 5/16-18 HEX |
|
| 9 |
5.100-559.0 |
Suction bar support plate |
|
| 9 |
8.622-326.0 |
PLUNGER, PLATFORM SWITCH |
|
| 9 |
8.613-673.0 |
SCREW, M6-1 X 40 PNHMS BLKOX |
|
| 9 |
8.631-906.0 |
BUMPER, LEFT, BLACK |
|
| 10 |
8.625-497.0 |
SPRING, COMP 18MMOD X 83 X 2 |
|
| 10 |
6.401-419.0 |
Eye screw LB M10x60 DIN 444 |
|
| 10 |
8.627-290.0 |
"""RING, 3/4"""" KLIP """ |
|
| 10 |
8.627-695.0 |
Screw 1/4-20 X 3/4 CARRIAGE SS |
|
| 10 |
8.627-434.0 |
SCR, M6 X 16 PHMS SS |
|
| 10 |
8.623-259.0 |
"""CASTER, 4"""" HARD RUBBER RIGID """ |
|
| 10 |
8.633-109.0 |
Буфер справа |
|
| 11 |
8.617-333.0 |
WASHER, M5, FLAT, ISO7093, SS |
|
| 11 |
4.481-251.0 |
Поперечная балка B 90 R |
|
| 11 |
8.627-187.0 |
NUT, 1/4-20 HEX NYLCK THIN SS |
|
| 11 |
5.007-217.0 |
Plate |
|
| 11 |
8.617-335.0 |
WASHER, M5, FLAT, ISO7089, SS |
|
| 11 |
8.600-135.0 |
BUSHING, SPANNER .435 X 1.10 |
|
| 11 |
8.633-552.0 |
WHEEL, 10 X 2.5, PLSTC HUB, W/BEARINGS |
|
| 12 |
8.621-965.0 |
KEY, 5MM SQ X 39MM L |
|
| 12 |
8.600-704.0 |
Screw 5/16-18X1 THUMB SS TYPE P |
|
| 12 |
5.112-810.0 |
Sleeve VA |
|
| 12 |
8.631-277.0 |
PLATFORM |
|
| 12 |
8.601-102.0 |
"""Wheel 3"""" DIA CUSHION RUBBER """ |
|
| 12 |
8.600-871.0 |
"""Ring 3/4"""" EXT SNAP H-D """ |
|
| 13 |
8.600-867.0 |
"""Cotter 3/8"""" RING """ |
|
| 13 |
8.622-867.0 |
"""Bearing 3/4""""BORE FLANGED """ |
|
| 13 |
8.627-182.0 |
NUT, 5/16-18 X .028-.056PR CAGE |
|
| 13 |
5.305-296.0 |
Wing screw M8x40 VA |
|
| 13 |
8.622-281.0 |
PLATE, COVER |
|
| 13 |
8.627-184.0 |
Nut 5/16-18 HEX NYLOCK THIN SS |
|
| 13 |
8.623-213.0 |
Cap 2.75 ID X 1.0 L BLK VINYL |
|
| 14 |
8.627-607.0 |
SCR, 5/16-18 X 3/4 CARRIAGE SS |
|
| 14 |
8.629-201.0 |
KIT, DISK SQUEEGEE BLADE, RED |
|
| 14 |
8.629-202.0 |
KIT, DISK SQUEEGEE BLADE, NAT |
|
| 14 |
8.625-028.0 |
Potentiometer 5K OHMS |
|
| 14 |
8.600-813.0 |
SPACER, 3/8ODX..062WX.312L,AL |
|
| 14 |
8.600-892.0 |
BOOT, RUBBER TERM. ISOLATOR |
|
| 15 |
8.622-480.0 |
SPROCKET, STEERING SHAFT |
|
| 15 |
8.600-866.0 |
"""Cotter 5/16"""" RING """ |
|
| 15 |
2.885-294.0 |
End piece left / right spare parts set |
|
| 15 |
8.627-187.0 |
NUT, 1/4-20 HEX NYLCK THIN SS |
|
| 15 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 16 |
8.601-067.0 |
Washer 5/16 FLAT SS |
|
| 16 |
8.627-699.0 |
Screw 3/8-16 X 3.5 CARRIAGE SS |
|
| 16 |
2.639-561.0 |
Add-on kit support wheels suction bar |
|
| 16 |
8.622-977.0 |
BLOCK, SHUNT MOUNT |
|
| 17 |
8.613-597.0 |
KEY, 3/16 SQ X 5/8 LONG |
|
| 17 |
8.600-839.0 |
TUBE ASM, SQUEEGEE VAC |
|
| 17 |
7.311-422.0 |
Hexagon nut M 6-1.4305 ISO 10511 |
|
| 17 |
8.627-679.0 |
Screw 5/16-18 X 1.75 HHCS SS |
|
| 17 |
8.627-398.0 |
Screw 10-32 X 3/4 PPHMS SS |
|
| 18 |
8.627-519.0 |
Screw 3/8-16 X 1.25 HHCS SS |
|
| 18 |
8.606-644.0 |
BAND, REAR SQUEEGEE |
|
| 18 |
7.312-026.0 |
Washer 6 -A2 ISO 7090 |
|
| 18 |
8.625-428.0 |
SPACER, 1.00 ODX .32ID X .375 |
|
| 19 |
8.600-861.0 |
Flanged bearing PRESS STEEL |
|
| 19 |
8.600-640.0 |
Rivet 5/32 OF X 1/8 GRIP |
|
| 19 |
5.044-304.0 |
Holder roller |
|
| 19 |
8.600-407.0 |
GRIP, POLISHER HANDLE |
|
| 20 |
8.600-103.0 |
Bearing BALL 3/4 BORE SPHERED |
|
| 20 |
8.600-917.0 |
LATCH, SQUEEGEE STRAP |
|
| 20 |
7.312-052.0 |
Washer 5 -A2 ISO 7089 |
|
| 21 |
8.622-432.0 |
SPACER, .63 OD X .385ID X .64L |
|
| 21 |
8.600-918.0 |
STRIKER, SQUEEGEE STRAP REAR |
|
| 21 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 22 |
8.622-481.0 |
SPROCKET, DRIVE WHEEL STEERING |
|
| 22 |
8.606-645.0 |
BAND, SQG REAR RH |
|
| 22 |
6.435-401.0 |
Wheel D54 |
|
| 23 |
8.601-063.0 |
Washer 1/4 ID X 5/8 OD SS |
|
| 23 |
8.600-563.0 |
NUT HEX NYL LOC-THIN SS 3/8-16 |
|
| 23 |
8.600-991.0 |
VIAL, LEVEL |
|
| 23 |
5.105-245.0 |
Axle |
|
| 24 |
8.600-571.0 |
Nut 1/4-20 HEX W/STAR WASHER |
|
| 24 |
8.600-275.0 |
Chain ISO 08B, 12.7MM PITCH |
|
| 24 |
8.600-920.0 |
KNOB, 3/8-16 4 PRONG ALUM |
|
| 24 |
7.304-550.0 |
Hexagonal head screw M 6x45-A4-70 ISO 4 |
|
| 25 |
8.627-193.0 |
NUT HEX NYL LOC 3/8-16 |
|
| 25 |
8.627-894.0 |
Washer 1/4 ID X 1-1/4 OD PLT |
|
| 25 |
8.627-744.0 |
SCR, 3/8-16 X 2.50 LG BSHCS SS |
|
| 25 |
6.321-239.0 |
Star grip VA ?50x43 |
|
| 26 |
8.627-607.0 |
SCR, 5/16-18 X 3/4 CARRIAGE SS |
|
| 26 |
8.601-078.0 |
Washer 1/4 SPLIT LOCK PLTD |
|
| 26 |
8.627-746.0 |
SCR, 5/16-18 X 5/8 BSHCS SS |
|
| 26 |
5.094-231.0 |
Sleeve suction bar in VA |
|
| 27 |
8.627-519.0 |
Screw 3/8-16 X 1.25 HHCS SS |
|
| 27 |
8.627-433.0 |
SCR, M6 X 20 HHMS PLTD |
|
| 27 |
8.607-092.0 |
BRKT, SQG WHEEL |
|
| 27 |
5.515-267.0 |
Deflector roll suction bar |
|
| 28 |
8.627-415.0 |
Screw 1/4-20 X 1.75 HHCS PLTD |
|
| 28 |
8.627-913.0 |
Washer 5/16 SPLIT LOCK PLTD |
|
| 28 |
8.627-671.0 |
SCR, 5/16-18 X 2.0 CARRIAGE SS |
|
| 28 |
8.600-920.0 |
KNOB, 3/8-16 4 PRONG ALUM |
|
| 29 |
8.623-278.0 |
Chain MASTERLINK 12.7MM |
|
| 29 |
8.608-783.0 |
STRAP , SQUEEGEE |
|
| 29 |
8.627-744.0 |
SCR, 3/8-16 X 2.50 LG BSHCS SS |
|
| 30 |
8.636-860.0 |
WASHER, 2.50ODx1.25IDx.125THK, DELRIN |
|
| 30 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 30 |
8.608-327.0 |
PLATE, SQG VERTICAL FILLER (F) |
|
| 30 |
8.631-487.0 |
BRKT, SQUEEGEE MTG |
|
| 31 |
8.627-942.0 |
Washer .75IDX1.25ODX.125THK NY |
|
| 31 |
8.627-700.0 |
SCR, 1/4-20 X 1.5 CARRAIGE SS |
|
| 31 |
8.607-107.0 |
BRKT, SQG QUICK CONNECT LOCK |
|
| 32 |
8.627-137.0 |
NUT, 1/4-20 FLANGE LOCK |
|
| 32 |
8.623-278.0 |
Chain MASTERLINK 12.7MM |
|
| 32 |
8.627-745.0 |
SCR, 3/8-16 X 2 LG CARRIAGE SS |
|
| 32 |
8.627-486.0 |
SCR, M8X20 HHMS |
|
| 33 |
8.608-328.0 |
PLATE, SQG VERTICAL FILLER (R) |
|
| 33 |
8.613-731.0 |
WASHER, M8 SPLIT LOCK |
|
| 34 |
8.608-326.0 |
"""Plate SQG BOTTOM 33"""" """ |
|
| 34 |
8.600-563.0 |
NUT HEX NYL LOC-THIN SS 3/8-16 |
|
| 35 |
8.602-517.0 |
DISK SQUEEGE ASM, CHARIOT |
|
| 36 |
8.607-106.0 |
BRKT, SQG QUICK CONNECT MTG |
|
| 37 |
8.607-107.0 |
BRKT, SQG QUICK CONNECT LOCK |
|
| 38 |
8.608-325.0 |
"""PLATE, SQG TOP 33"""" """ |
|
| 39 |
8.608-329.0 |
PLATE, SQG WHEEL MNT BUMPER |
|
