Karcher (Керхер) Приборная панель (0.206-944.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

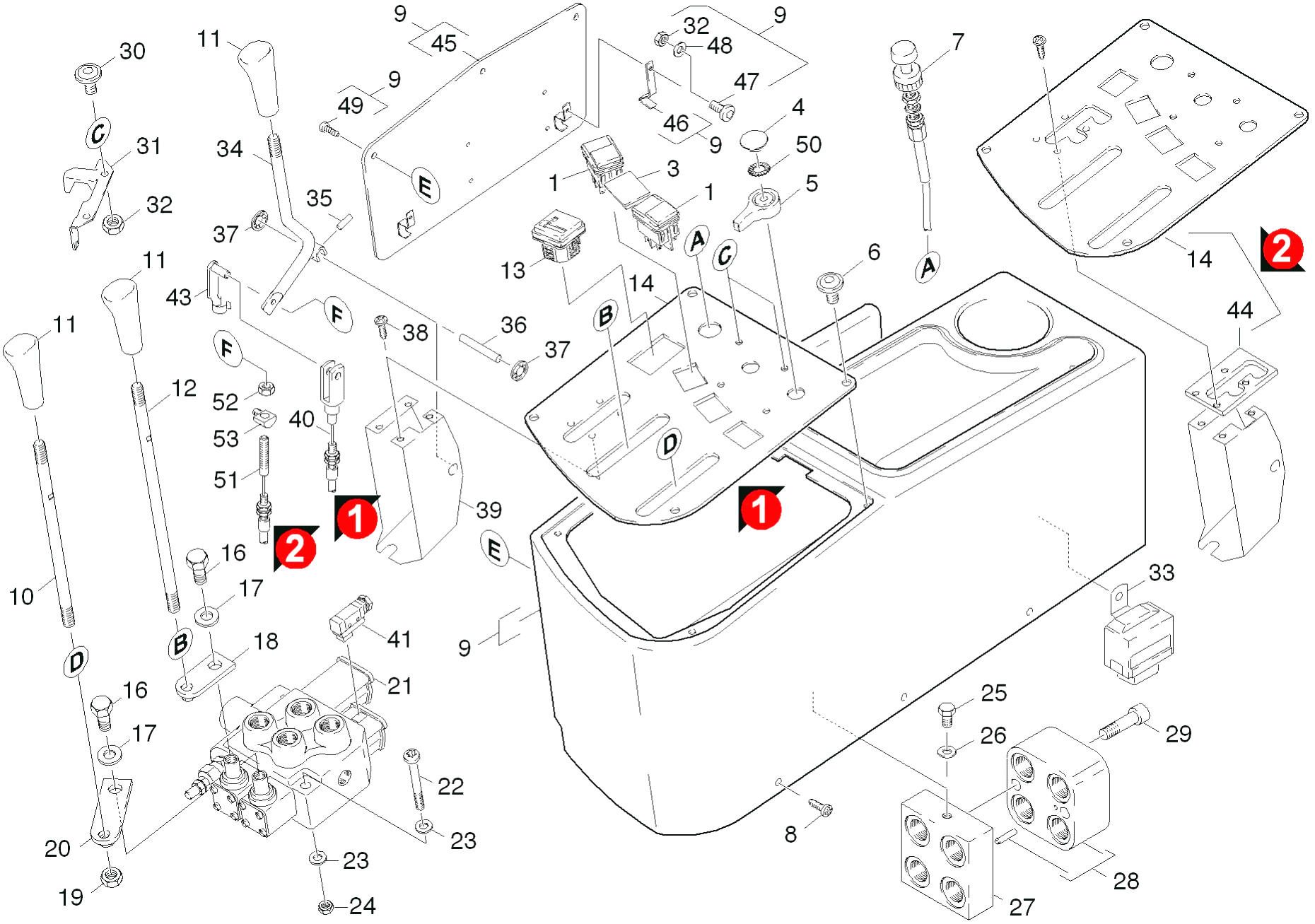

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.630-006.0	Switch
3	6.631-736.0	Blind plug
4	5.132-010.0	Plug
5	5.321-612.0	Handhold abridged
6	6.304-142.0	Oval head screw M 5X 8
7	6.906-086.0	Throttle cable
8	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
9	4.053-226.0	Operating unit complete
10	5.481-272.0	Lever
11	6.321-140.0	Hand grip
12	5.481-271.0	Lever control block bracket
13	6.681-081.0	Hour counter
13	6.681-088.0	Счетчик продолж-ти эксплуатации оборудов
14	5.006-670.0	Plate
14	4.038-735.0	Sheet metal component complete bracket
15	6.394-159.0	Screen hour counter
16	7.304-410.0	Hexagonal head screw M10x16-8.8-A3E ISO
17	7.312-005.0	Washer 10-200HV-A3E ISO 7090
18	4.042-928.0	Strap complete small
20	4.042-927.0	Strap complete large
21	6.501-003.0	Control block complete
22	7.306-129.0	Screw M6x40 -8.8-R3R (In6Rd)
23	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
24	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
25	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
26	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
27	5.006-137.0	Flange plate
28	6.413-071.0	Valve block
29	7.306-021.0	Cylinder head screw M10x50 -A2-70 ISO 4
31	5.049-198.0	Sheet metal component
32	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
33	6.491-662.0	Relay
34	4.038-907.0	Lever
35	7.314-844.0	Grooved pin 5,0x35-ST-A3E ISO 8742
36	5.316-323.0	Bolt
37	6.343-149.0	Quick-fastener
39	5.049-471.0	Sheet metal component holder lever GSK
40	6.431-188.0	Bowden wire bulk waste flap
41	6.630-204.0	Switch
43	6.316-089.0	Bolt
44	5.006-671.0	Plate
45	4.058-127.0	Plate complete operating unit
46	5.337-033.0	Plate spring
47	7.306-443.0	Винт с цилиндрической головкой М4х12
48	7.312-002.0	Washer 5-200HV-A3E ISO 7090
49	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
50	7.312-230.0	Serrated lock washer A4,3-FSt-A3E DIN67
51	6.431-206.0	Bowden wire
52	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
53	5.044-124.0	Holder rope
