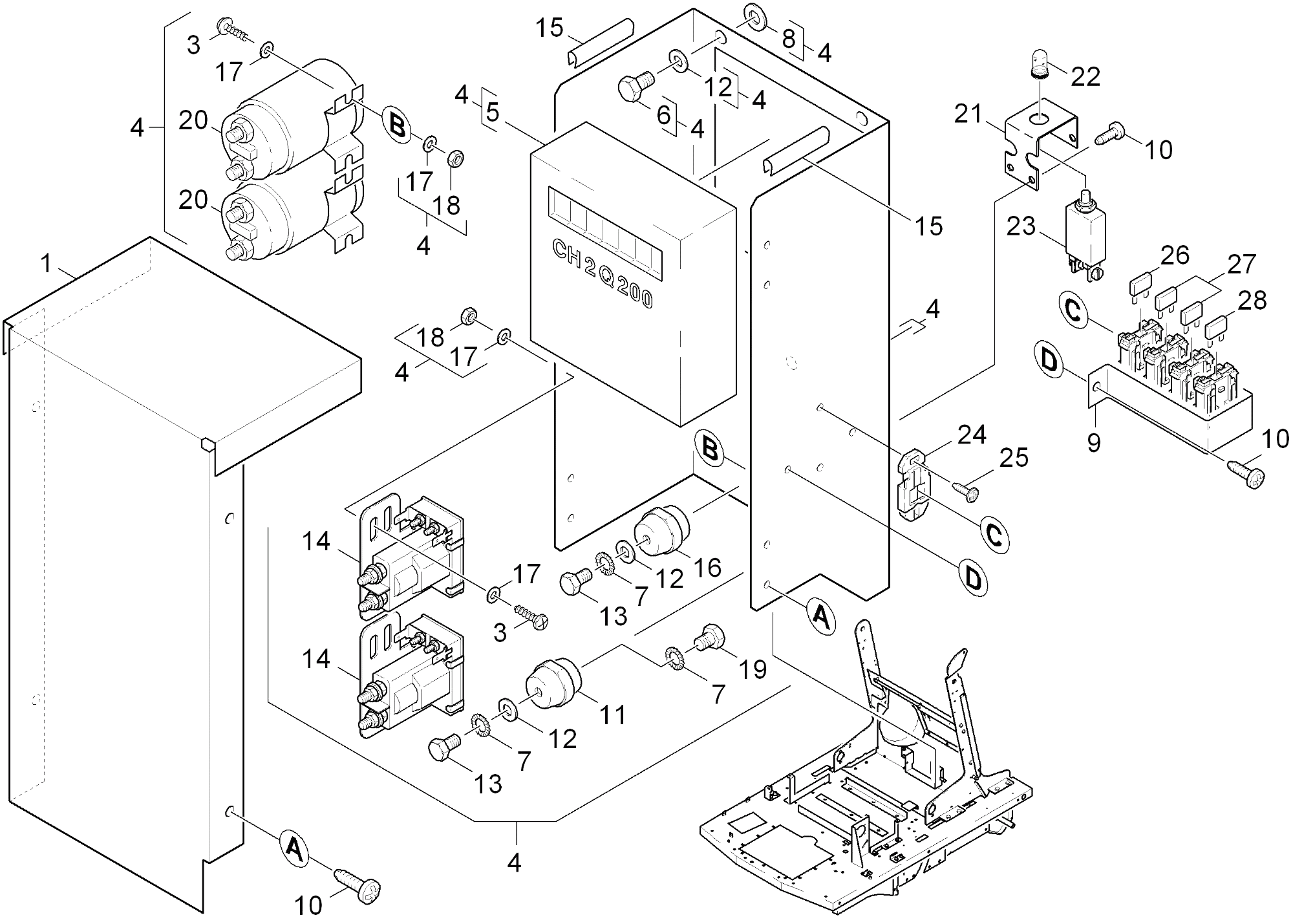

Karcher (Керхер) Электрическое оборудование (0.209-965.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.001-797.0	Cover plate
1	6.454-078.0	Worm gearing
2	7.318-070.0	Parallel key 5x5x20-C45R DIN 6885-1
2	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
3	7.306-206.0	Screw M4x10 -A2-70 (In6Rd)
3	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
3	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
4	6.682-430.0	Control system complete
4	7.306-500.0	Cylinder head screw M6x12-8.8-A2E DIN 6
4	5.017-019.0	Angle
5	6.682-432.0	Control system 24V
5	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
5	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
6	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
6	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
7	7.312-232.0	Serrated lock washer A6,4-FSt-A3E DIN 6
7	6.905-986.0	Side broom
7	5.048-034.0	Sheet metal component
8	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
8	5.120-288.0	Втулка боковая щетка
8	7.305-637.0	Countersunk screw M8x16-A2-70 ISO 10642
9	5.034-631.0	Retaining bracket
9	5.625-305.0	Belt pulley
9	5.003-986.0	Strap
10	7.303-036.0	Screw M5x8 -St-A2R (In6Rd)
10	7.307-410.0	Threaded pin M5x16 -St-45H-A2E ISO 402
10	5.017-018.0	Angle
11	6.652-022.0	Isolator
11	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
12	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
12	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
12	5.048-551.0	Sheet metal component
13	7.304-382.0	Hexagonal head screw M 6x12-8.8-A2E ISO
13	4.038-592.0	Side arm left
13	6.368-219.0	Antigliss screed
14	6.633-389.0	Power relay
14	6.330-103.0	Extension spring
15	5.364-212.0	Edge protection
15	7.343-302.0	Lock washer 8 -St-ph DIN 6799
16	6.652-023.0	Isolator
16	5.105-237.0	Axle
17	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
17	4.038-571.0	Boom side broom left
18	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
18	7.316-342.0	Cotter 3,2x20 -St-A2E ISO 1234
19	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
20	6.632-319.0	Contactor two-pole 24 V
21	5.049-366.0	Sheet metal component Sicherungsautomat
21	5.047-719.0	Sheet metal component
22	7.304-404.0	Hexagonal head screw M8x40-8.8-A2E ISO
22	6.635-388.0	Protecting cap
22	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
23	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
23	6.644-313.0	Safety cutout 4130-G411-K4M1-50A
23	7.303-047.0	Screw M6x16 -St-R3R (In6Rd)
24	7.316-225.0	Bolt B10,0x65-ST-A2E ISO 2341
24	6.644-276.0	Plate
25	6.432-025.0	Chain 214LG
25	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
26	5.031-433.0	Covering
26	6.644-299.0	Fuse insert
27	6.644-246.0	Fuse 40A-SAE J 1888
28	7.343-201.0	Lock washer 6-FST-PHR DIN 6799
28	7.644-013.0	Fuse insert C 5 DIN 72581-3
29	5.115-806.0	Washer
30	7.401-174.0	Ball bearing 628/8-2Z -W?lzl.St DIN 625
31	5.100-274.0	Shaft
32	7.462-009.0	Fork head G 6x12-ST-A2E DIN 71752
33	6.316-093.0	Bolt D 6
34	6.431-265.0	Bowden wire complete
35	5.047-605.0	Sheet metal component
36	6.348-337.0	Round belt d.8
44	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
45	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
46	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
47	6.288-107.0	Grease spray
