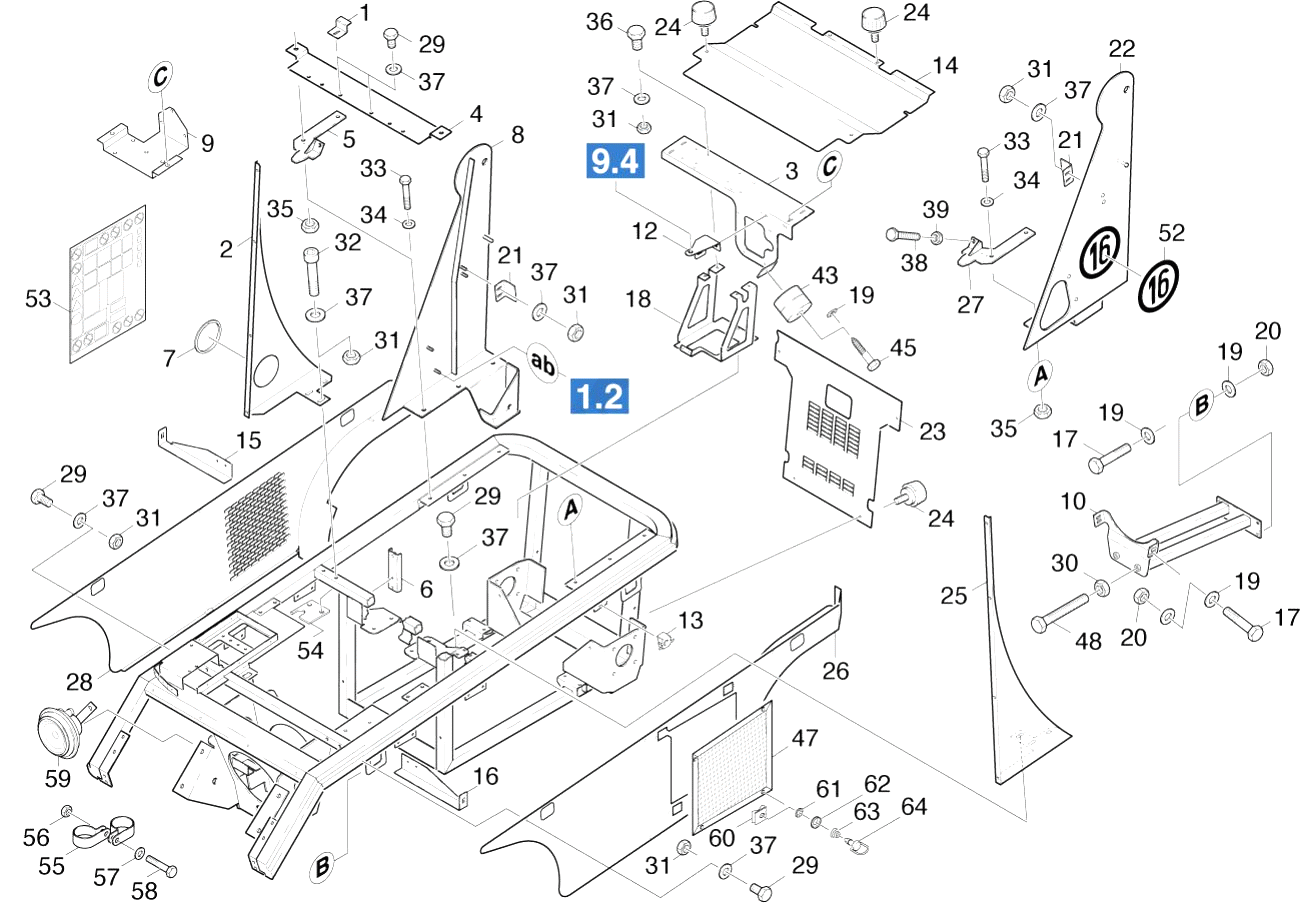

Karcher (Керхер) Основная рамка (0.207-620.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.048-429.0	Lever water tank
2	5.365-235.0	Profile gasket footwell window door
2	5.048-696.0	Sheet metal component only for replaceme
2	5.048-698.0	Sheet metal component only for replaceme
2	5.047-991.0	Sheet metal component side cladding righ
3	5.048-008.0	Sheet metal component holder gas-pressur
3	5.048-192.0	Sheet metal component holder
4	6.372-031.0	Ring CUZN
4	4.038-745.0	Sheet metal component complete water tan
5	6.439-159.0	Sliding window left
6	6.439-158.0	Sliding window right
6	4.038-800.0	Sheet metal component complete
7	6.339-173.0	Gas-pressurized spring door 250N
7	6.368-106.0	Edge protection
8	4.038-659.0	Sheet metal component complete hinge
8	4.038-769.0	Carrier only for replacement
8	4.038-768.0	Carrier only for replacement
8	4.038-767.0	Carrier only for replacement
9	6.439-163.0	Doorhandle external
9	5.048-365.0	Sheet metal component holder relay
10	4.055-081.0	Stay frame
11	5.006-066.0	Window glass footwell window
12	4.068-224.0	Door left
13	6.363-039.0	Sealing profile door
13	6.310-081.0	Cage nut M 8
14	5.058-680.0	Sheet metal component covering cap motor
15	5.048-781.0	Sheet metal component holder side claddi
16	5.316-910.0	Bolt door
16	5.048-782.0	Sheet metal component holder side claddi
17	6.375-267.0	Lock inside left
17	7.304-537.0	Hexagonal head screw M 8x30-A4-70 ISO 4
18	6.375-266.0	Lock inside right
18	5.048-197.0	Sheet metal component
19	6.961-886.0	Notch sliding window
19	7.312-261.0	Washer 8 -100HV-A3E ISO 7094
20	5.048-862.0	Sheet metal component door handle
20	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
21	5.048-428.0	Angle water tank
21	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
22	4.038-766.0	Carrier only for replacement
22	4.038-764.0	Carrier only for replacement
22	6.315-058.0	Blind rivet 4
22	4.038-965.0	Carrier complete left
23	5.001-907.0	Plate covering rear
23	4.610-058.0	Blower complete cockpit
23	5.007-749.0	Sheet metal component covering rear ONYX
24	6.961-538.0	Screw M 8X 20
24	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
25	5.048-693.0	Sheet metal component only for replaceme
25	5.048-695.0	Sheet metal component only for replaceme
26	4.038-961.0	Sheet metal component complete
26	4.040-223.0	Sheet metal component complete left ONYX
27	4.038-904.0	Sheet metal component box left
27	4.040-121.0	Sheet metal component complete left
28	4.038-721.0	Sheet metal component complete side clad
28	4.038-960.0	Sheet metal component complete
28	4.040-228.0	Sheet metal component complete right ONY
29	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
29	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
30	7.311-071.0	Hexagon nut M12-A2-70 ISO 4032
30	6.961-888.0	Slider set ventilation
31	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
32	7.306-047.0	Cylinder head screw M8x60 -8.8-A2E ISO4
32	5.873-007.0	Key
33	7.304-529.0	Hexagonal head screw M12x50 -A4-70 ISO 4
34	7.312-008.0	Washer 12-200HV-A3E ISO 7090
35	7.311-008.0	Hexagon nut M12-8-A3E ISO 4032
36	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
37	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
38	7.304-514.0	Hexagonal head screw M10x50-A2-70 ISO 4
39	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
43	6.373-738.0	Pipe clamp STAUFF 2X20MM
45	7.303-147.0	Screw M 8x50-ST-A3E (IN6RD)
47	4.038-893.0	Sheet metal component complete radiator
47	4.040-227.0	Sheet metal component complete radiator
48	7.304-257.0	Hexagonal head screw M12x80-A4-70 ISO 4
50	7.315-007.0	Blind rivet 3,2x10 -A1/A2 ISO 15983
51	6.330-149.0	Spring
52	5.382-654.0	Label 16 KM
53	5.383-356.0	Adhesive label
54	5.006-654.0	Plate plain bearing
55	7.373-001.0	Зажим 1-12-W1-2 DIN 72571
56	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
57	7.312-002.0	Washer 5-200HV-A3E ISO 7090
58	7.306-078.0	Screw M5x20 -8.8-R2R (In6Rd)
59	6.635-326.0	Signal horn
60	6.375-242.0	Closure
61	6.313-016.0	Locking ring
62	6.312-068.0	Washer
63	6.330-102.0	Pressure spring
64	6.375-240.0	Closure
