Karcher (Керхер) Боковая щетка справа (0.208-011.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

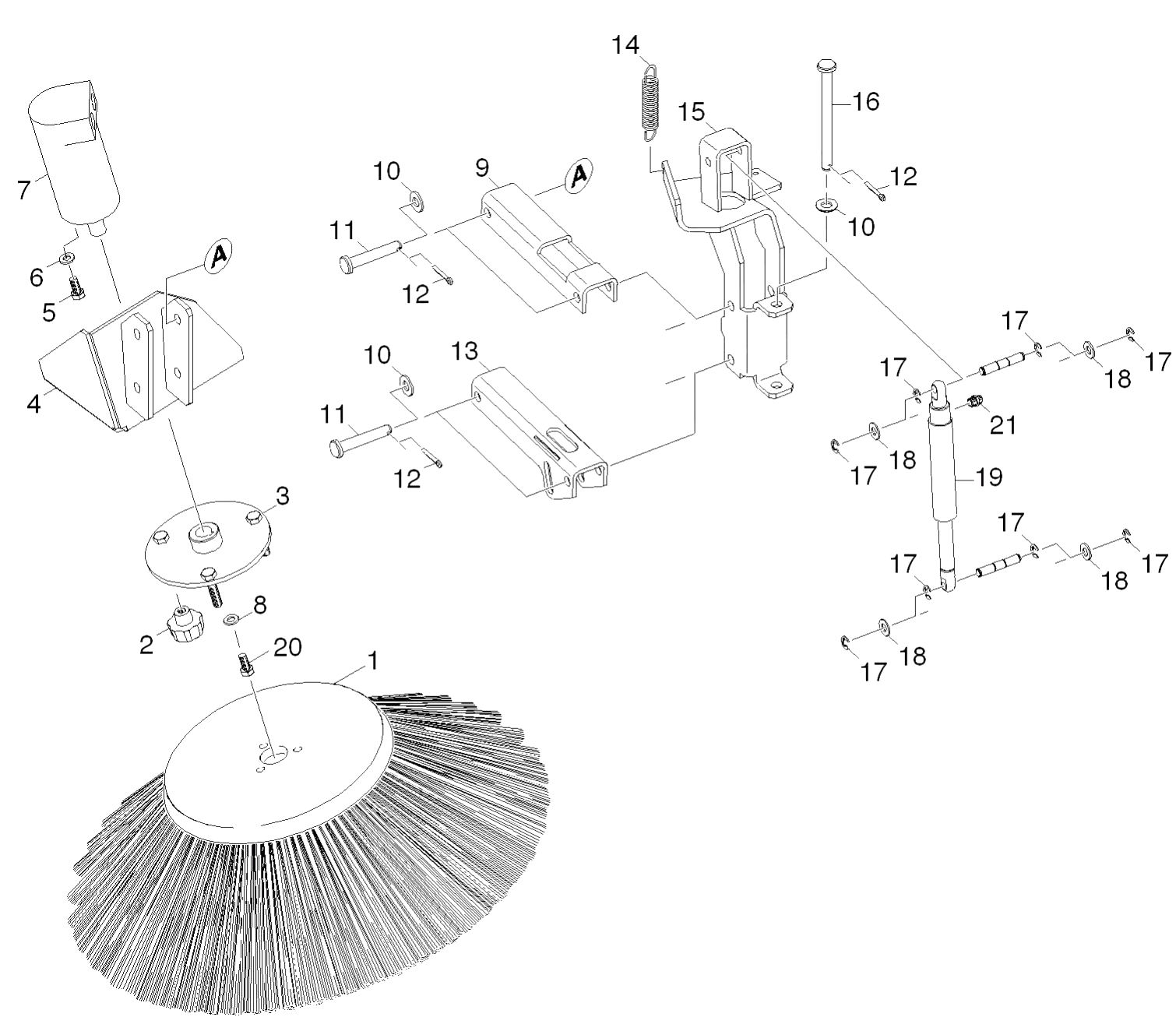

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.906-705.0	Side broom D 600
1	6.906-721.0	Side broom hard D 600
1	6.906-720.0	Side broom soft D 600
2	6.310-066.0	Star grip M 8
3	4.040-353.0	Держатель боковая щетка
4	4.040-429.0	Hydraulic motor holder right
5	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
6	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
7	6.503-038.0	Hydraulic motor OMS 70 C
8	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
9	5.023-668.0	Профиль U
10	7.312-005.0	Washer 10-200HV-A3E ISO 7090
11	7.316-226.0	Bolt B-10x60-St-A2E ISO 2341
12	7.316-341.0	Cotter 3,2x16-St-A2E ISO 1234
13	5.023-669.0	U-Section
14	6.330-428.0	Extension spring
15	4.040-443.0	Retainer rhomboid
16	7.316-228.0	Bolt B-10x120 -St-A2E ISO 2341
17	7.343-300.0	Lock washer 7-A2 DIN 6799
18	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
19	6.504-059.0	Hydraulic cylinder
20	7.306-031.0	Screw M 6x16-A2-70 DIN 7984
21	6.386-529.0	Screw union G1/8A
33	7.303-037.0	Screw M5x10 -St-P2R (In6Rd)
35	6.368-064.0	Drain plug
36	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
37	7.306-040.0	Cylinder head screw M8x16 -8.8-A2E ISO4
38	5.065-730.0	Sheet metal component
39	6.997-125.0	Pipe clamp 6X15
40	5.006-748.0	Cord rubber
41	5.033-582.0	Covering right LPG
42	7.303-068.0	Screw M8x20 -St-R3R (In6Rd)
43	7.312-066.0	Washer 10 -A2 ISO 7090
44	7.311-524.0	Hexagon nut M10-A2-70 ISO 7040
