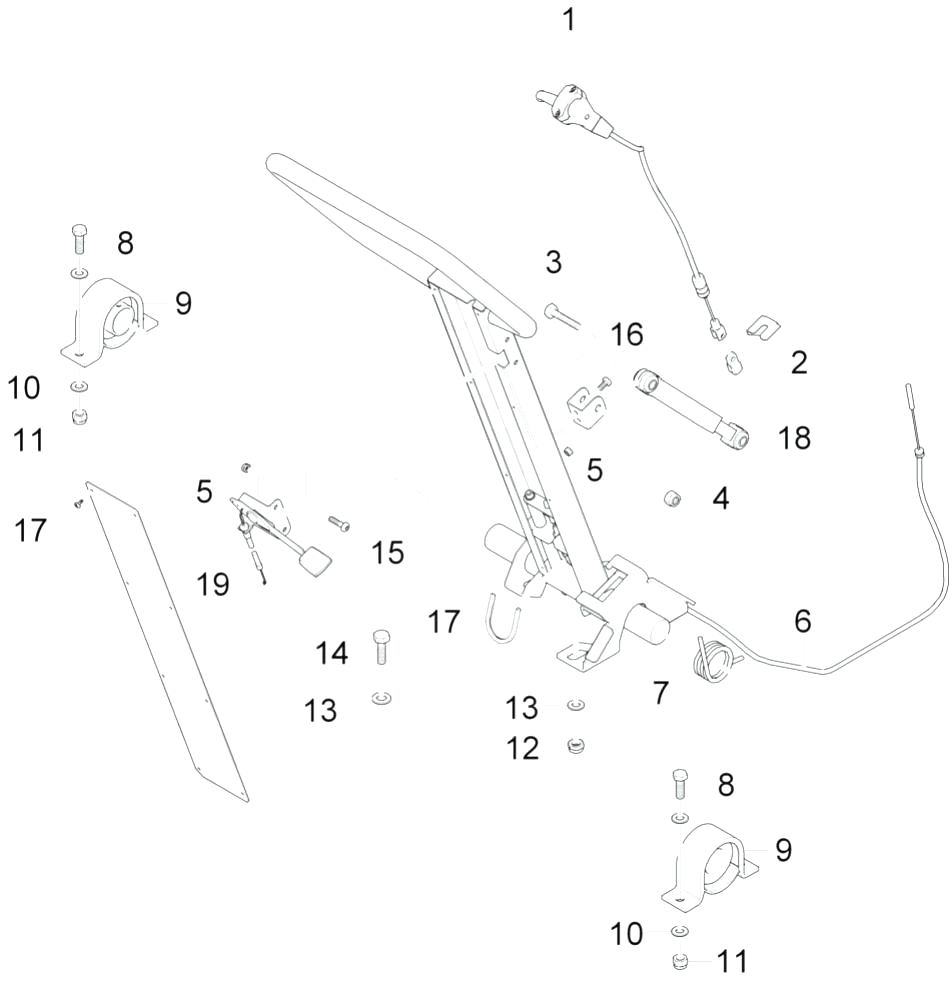

Karcher (Керхер) Дышло (0.208-595.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.431-255.0	Bowden wire brake with hand grip
1	6.339-243.0	Gas spring
2	6.348-441.0	Fork head
2	5.064-345.0	Cover
3	7.304-426.0	Hexagonal head screw M10x45-8.8-A3E ISO
3	5.105-619.0	Handhold suction tube
4	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
5	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
5	4.025-907.0	Suction nipple complete
6	6.431-256.0	Bowden wire brake
6	6.365-375.0	Sealing profile
7	5.094-268.0	Leg spring
7	5.094-320.0	Sheet metal component hinge
8	7.304-417.0	Hexagonal head screw M10x30-8.8-A3E ISO
8	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
9	6.401-355.0	Flanged bearing
9	7.312-018.0	Washer 20-200HV-A3E ISO 7090
10	7.312-005.0	Washer 10-200HV-A3E ISO 7090
10	7.343-007.0	Locking ring 20x1,2-FST-RF DIN 471
11	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
11	6.365-510.0	Sealing profile
12	7.311-429.0	Hexagon nut M12-04-A2E ISO 10511
12	5.094-298.0	Plate air circulation
13	7.312-008.0	Washer 12-200HV-A3E ISO 7090
13	5.094-321.0	Sheet metal component holder
14	7.304-441.0	Hexagonal head screw M12x35-8.8-A3E ISO
14	6.391-609.0	Clamp 90-110
15	7.306-094.0	Screw M6x25 -8.8-R3R (In6Rd)
15	6.391-669.0	Suction hose
16	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
16	5.129-099.0	Suction tube
17	6.368-089.0	Edge protection
17	5.094-295.0	Plate support arm
18	6.437-659.0	Damper 120N l=185mm
18	6.310-189.0	Star grip M8
19	6.491-877.0	Throttle cable
19	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
21	4.040-667.0	Clamp suction tube
22	5.321-000.0	Handhold
23	5.094-244.0	Grate filter
25	6.368-048.0	Ornamental hub cap
26	6.491-878.0	Мусоросборник 240 l
