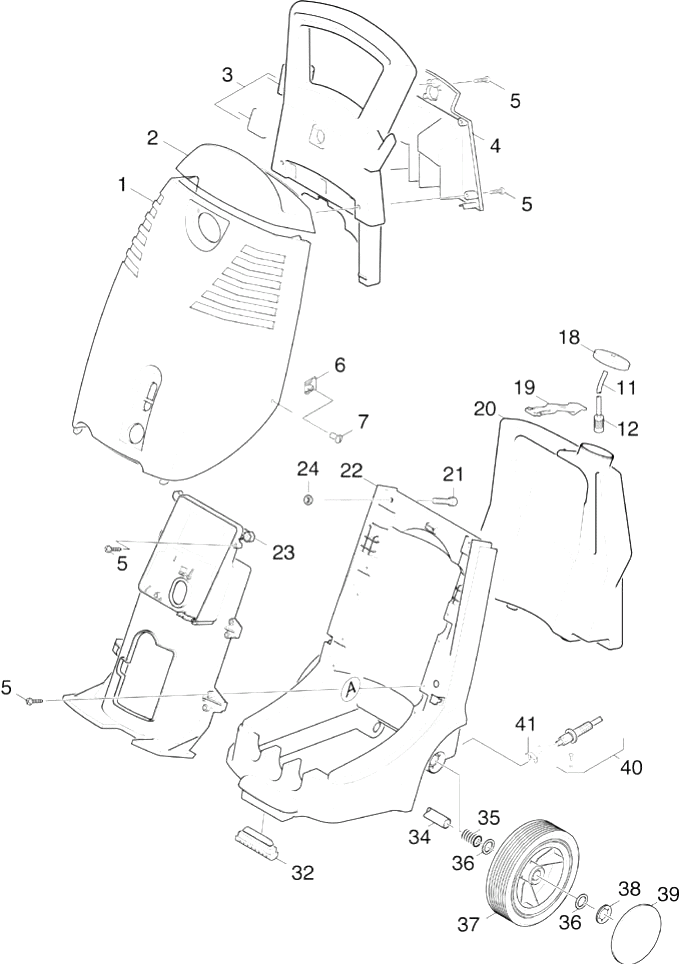

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.067-018.0 | Device cover for replacement | |
| 2 | 5.042-958.0 | Hose holder | |
| 3 | 4.321-105.0 | Handhold complete only for replacement | |
| 4 | 4.063-613.0 | Cover complete | |
| 5 | 6.303-200.0 | Screw 5x25-IN6RD | |
| 6 | 6.310-053.0 | Putting nut | |
| 7 | 6.304-099.0 | Saucer-head screw M 6x 18-4.8-R2R | |
| 11 | 6.388-216.0 | Hose DN 5 | |
| 12 | 5.731-652.0 | Filter with weight | |
| 18 | 5.063-796.0 | Cover | |
| 19 | 5.042-970.0 | Holder | |
| 20 | 5.071-095.0 | Tank chemistry | |
| 21 | 7.306-151.0 | Cylinder head screw M8x65 -8.8-A2E ISO4 | |
| 22 | 5.605-227.0 | Housing chassis | |
| 23 | 5.060-685.0 | Air circulation | |
| 24 | 7.311-427.0 | Hexagon nut M8 -04-A2E ISO 10511 | |
| 32 | 5.057-062.0 | Support | |
| 34 | 5.028-938.0 | Tube axle | |
| 35 | 5.332-411.0 | Helical spring | |
| 36 | 5.115-255.0 | Washer | |
| 37 | 6.435-336.0 | Wheel D200 | |
| 38 | 6.343-216.0 | Lock washer | |
| 39 | 6.435-337.0 | Wheel cap | |
| 40 | 6.647-802.0 | Cable with plug | |
| 40 | 6.647-848.0 | Cable without plug | |
| 41 | 6.343-170.0 | Retaining clip |
