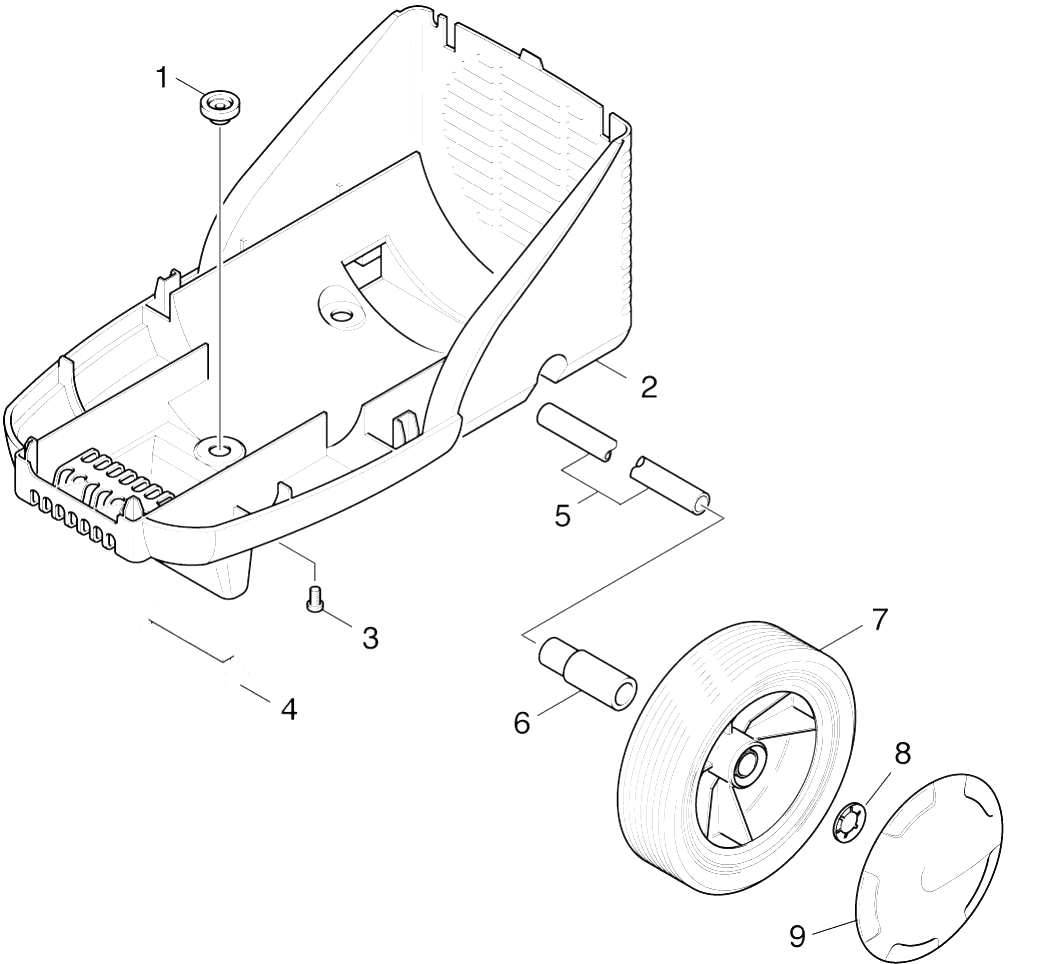

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.057-053.0 | Support | |
| 2 | 5.066-500.0 | Cover bottom part | |
| 3 | 6.303-075.0 | Screw M5x18-ST-A2R (KOMB-IN6RD) | |
| 4 | 5.057-054.0 | Support | |
| 5 | 5.028-336.0 | Tube | |
| 6 | 5.110-453.0 | Sleeve | |
| 7 | 6.435-196.0 | Wheel D 180 | |
| 8 | 6.343-168.0 | Lock washer | |
| 9 | 5.411-067.0 | Screw plug | |
| 9 | 6.435-197.0 | Wheel cap zinc yellow | |
| 10 | 6.365-351.0 | Compact seal 16 x 24 x 4 | |
| 10 | 6.362-584.0 | O-Ring seal 12,42X 1,78 | |
| 11 | 5.112-402.0 | Bush | |
| 11 | 5.332-157.0 | Helical spring | |
| 12 | 7.306-090.0 | Screw M6x16 -8.8-R3R (In6Rd) | |
| 12 | 5.582-058.0 | Valve disc | |
| 13 | 5.060-395.0 | Housing | |
| 13 | 5.107-259.0 | Bar | |
| 14 | 6.362-571.0 | O-Ring seal complete /1ST.-R | |
| 15 | 6.362-398.0 | O-Ring seal 27,5 X 1,5-NBR 70 | |
| 15 | 4.427-179.0 | Manifold | |
| 16 | 5.115-492.0 | Washer | |
| 16 | 5.031-259.0 | Moulded part | |
| 17 | 6.365-354.0 | Grooved ring 16X24X5,3 | |
| 17 | 6.389-853.0 | Hose assembly standard DN6 25MPa 10m | |
| 19 | 6.363-115.0 | O-Ring seal complete 1ST.-R. |
