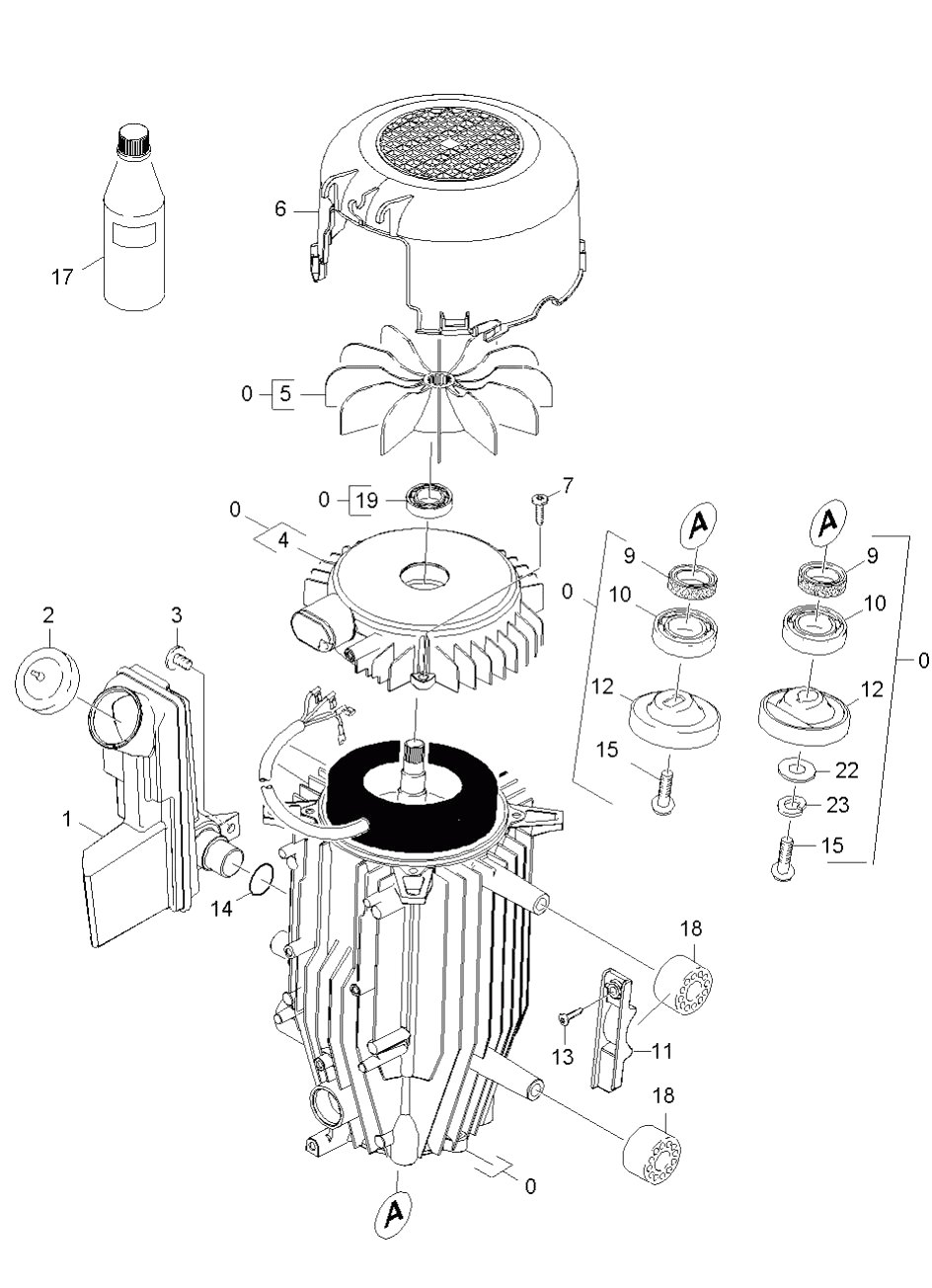

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.623-675.0 | Motor complete | |
| 0 | 4.623-683.0 | Motor complete | |
| 0 | 4.623-868.0 | Motor complete only for replacement | |
| 0 | 4.623-754.0 | Motor complete | |
| 0 | 4.623-850.0 | Motor complete only for replacement | |
| 1 | 5.070-639.0 | Tank oil | |
| 2 | 5.063-389.0 | Крышка | |
| 2 | 5.063-195.0 | Cover | |
| 3 | 6.303-153.0 | Screw M5x15-ST-R2R (IN6RD) | |
| 4 | 5.094-148.0 | Bearing cover B | |
| 4 | 5.064-197.0 | Bearing cover B | |
| 5 | 5.600-060.0 | Blower wheel | |
| 6 | 5.692-081.0 | Air circulation | |
| 7 | 6.303-320.0 | Screw M 5x 20-St-R2R | |
| 9 | 7.367-001.0 | Radial shaft seal ring A24x37x7 -NBR DI | |
| 10 | 6.401-332.0 | Angular contact ball bearing | |
| 11 | 5.802-288.0 | Mounting part | |
| 12 | 6.401-307.0 | Wobble plate | |
| 12 | 4.120-213.0 | Wobble plate | |
| 12 | 4.120-222.0 | Wobble plate complete only for replaceme | |
| 12 | 4.120-219.0 | Wobble plate complete | |
| 13 | 7.303-108.0 | Screw 5x20 -10.9-R2R (In6Rd) | |
| 14 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 15 | 7.306-042.0 | Cylinder head screw M8x25 -8.8-A2E ISO4 |
