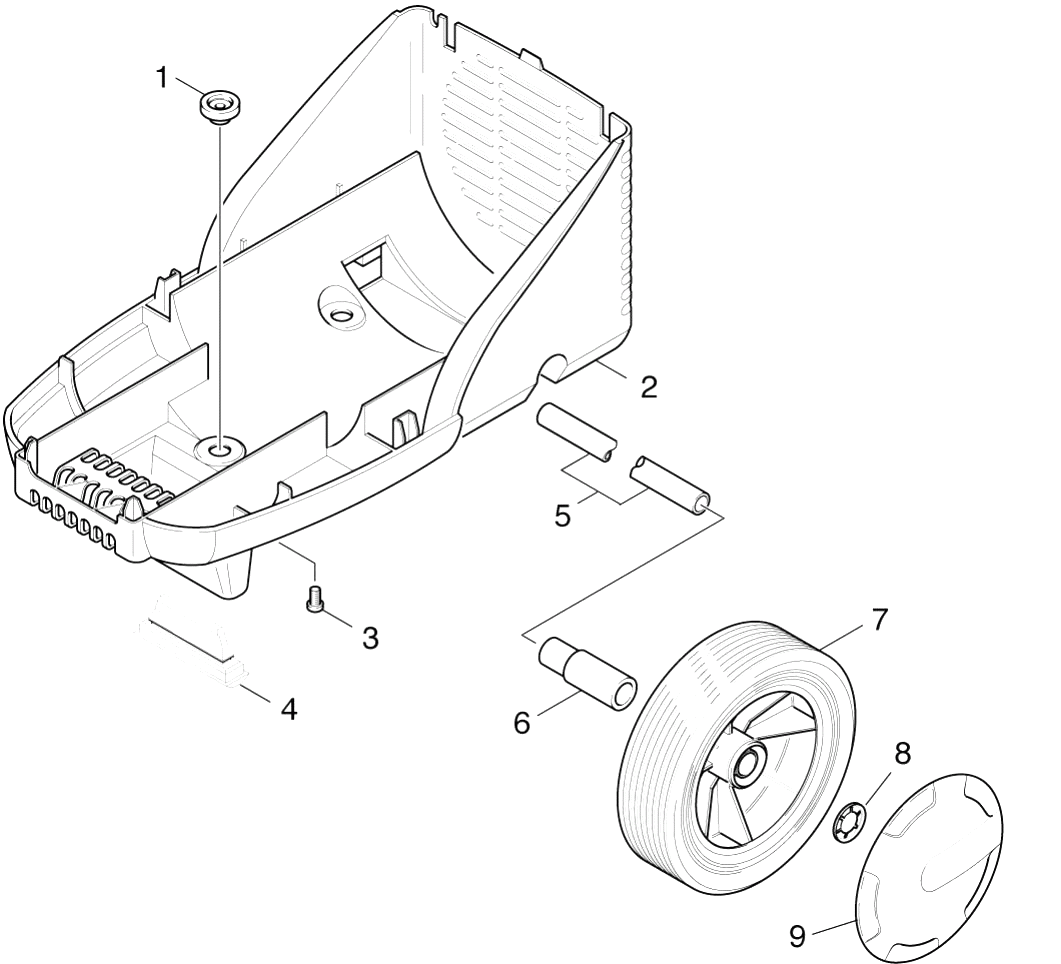

Karcher (Керхер) Нижняя часть (0.101-535.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.775-554.0 |
Ручной распылитель Low End Nippel |
|
| 1 |
5.057-053.0 |
Support |
|
| 1 |
7.303-026.0 |
Screw 4x16 -A2-70 (In6Rd) |
|
| 1 |
5.030-533.0 |
Moulded part |
|
| 1 |
5.321-419.0 |
Захватная пара |
|
| 2 |
5.066-500.0 |
Cover bottom part |
|
| 2 |
5.030-780.0 |
Moulded part |
|
| 2 |
5.332-209.0 |
Helical spring |
|
| 2 |
6.303-122.0 |
M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO |
|
| 3 |
6.303-075.0 |
Screw M5x18-ST-A2R (KOMB-IN6RD) |
|
| 3 |
6.631-469.0 |
Protective cover (Y30600101) |
|
| 3 |
5.582-080.0 |
Valve disc |
|
| 3 |
5.481-052.0 |
Lever |
|
| 4 |
5.057-054.0 |
Support |
|
| 4 |
6.630-118.0 |
Rocker switch |
|
| 4 |
6.362-768.0 |
O-Ring seal 88.0X 2.2 |
|
| 4 |
4.427-150.0 |
Узловая деталь |
|
| 5 |
5.028-336.0 |
Tube |
|
| 5 |
4.063-194.0 |
Cover complete |
|
| 5 |
5.030-500.0 |
Moulded part |
|
| 5 |
5.411-054.0 |
Screw plug |
|
| 6 |
5.110-453.0 |
Sleeve |
|
| 6 |
6.273-117.0 |
Ring cellular rubber |
|
| 6 |
5.332-206.0 |
Helical spring |
|
| 6 |
6.362-480.0 |
O-Ring seal 12,42x 1,78 |
|
| 7 |
6.435-196.0 |
Wheel D 180 |
|
| 7 |
6.303-153.0 |
Screw M5x15-ST-R2R (IN6RD) |
|
| 7 |
5.553-267.0 |
Piston |
|
| 7 |
5.332-157.0 |
Helical spring |
|
| 8 |
6.343-168.0 |
Lock washer |
|
| 8 |
6.647-122.0 |
Cable with plug |
|
| 8 |
6.365-322.0 |
Grooved ring 16X24X7 |
|
| 8 |
5.582-058.0 |
Valve disc |
|
| 9 |
6.435-197.0 |
Wheel cap zinc yellow |
|
| 9 |
7.303-031.0 |
Screw M4x10 -St-P2R (In6Rd) |
|
| 9 |
5.115-493.0 |
Washer |
|
| 9 |
5.107-067.0 |
Bar |
|
| 10 |
6.365-351.0 |
Compact seal 16 x 24 x 4 |
|
| 10 |
7.362-502.0 |
O-Ring seal 2,8x1,6-NBR 70 DIN 3770 |
|
| 11 |
6.343-170.0 |
Retaining clip |
|
| 11 |
5.112-402.0 |
Bush |
|
| 12 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 12 |
6.362-802.0 |
O-Ring seal 7,8 X 3,6 |
|
| 13 |
4.066-202.0 |
Top part cover only for replacement |
|
| 13 |
5.060-395.0 |
Housing |
|
| 13 |
5.110-477.0 |
Sleeve |
|
| 14 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 14 |
4.481-035.0 |
Lever |
|
| 15 |
4.427-183.0 |
Manifold |
|
| 15 |
6.661-298.0 |
Capacitor 40µf |
|
| 15 |
6.362-398.0 |
O-Ring seal 27,5 X 1,5-NBR 70 |
|
| 16 |
5.031-259.0 |
Moulded part |
|
| 16 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 16 |
5.115-492.0 |
Washer |
|
| 17 |
6.389-853.0 |
Hose assembly standard DN6 25MPa 10m |
|
| 17 |
6.303-149.0 |
Oval head screw 5,0X40 |
|
| 17 |
6.365-354.0 |
Grooved ring 16X24X5,3 |
|
| 17 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 18 |
5.031-088.0 |
Moulded part |
|
| 18 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 19 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 19 |
6.362-254.0 |
Washer 12X5X2,0 |
|
| 26 |
6.362-451.0 |
O-Ring seal 8,0 x 1,0 |
|
