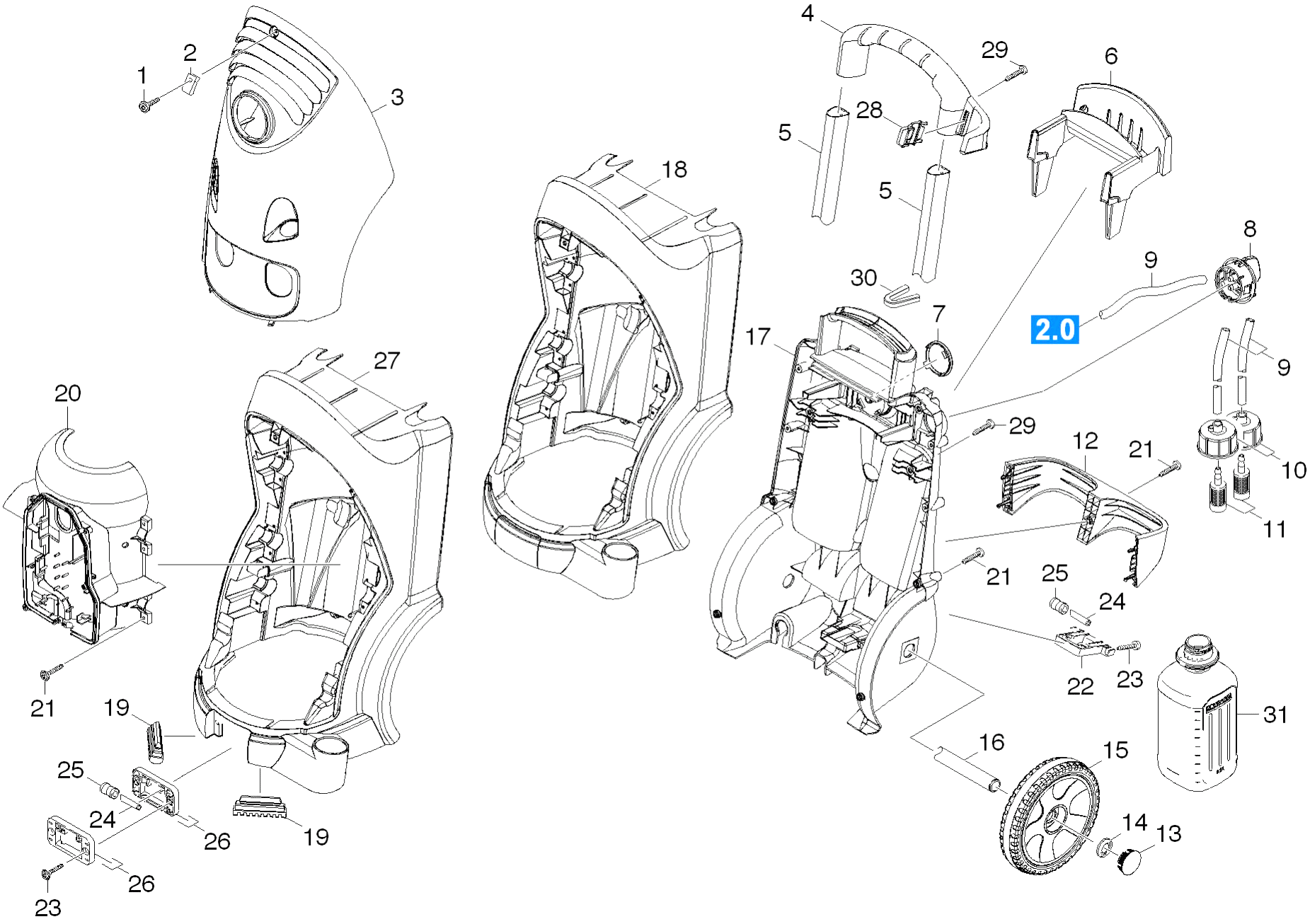

Karcher (Керхер) Корпус (0.101-110.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-823.0 |
Motor complete only for replacement |
|
| 0 |
4.623-681.0 |
Motor complete |
|
| 0 |
4.623-812.0 |
Motor complete HD 7/11-4M *KAP (f. Ersat |
|
| 0 |
4.623-755.0 |
Motor complete only for replacement |
|
| 0 |
4.623-807.0 |
Motor complete only for replacement |
|
| 0 |
4.623-784.0 |
Motor complete |
|
| 0 |
4.623-848.0 |
Motor complete only for replacement HD 6 |
|
| 1 |
6.304-099.0 |
Saucer-head screw M 6x 18-4.8-R2R |
|
| 1 |
5.070-658.0 |
Tank oil |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
5.321-692.0 |
Handle |
|
| 1 |
5.310-076.0 |
Nut |
|
| 2 |
6.310-053.0 |
Putting nut |
|
| 2 |
6.303-320.0 |
Screw M 5x 20-St-R2R |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 2 |
5.443-291.0 |
Hose stem |
|
| 3 |
4.069-018.0 |
Cover HD Basis/Mittelklasse |
|
| 3 |
5.064-367.0 |
Cover oil |
|
| 3 |
5.063-389.0 |
Крышка |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
5.064-200.0 |
Cover electric control box |
|
| 3 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 3 |
5.064-454.0 |
Cover qusty grey |
|
| 4 |
5.321-751.0 |
Handhold |
|
| 4 |
7.367-156.0 |
Radial shaft seal ring A30x40x7-NBR DIN |
|
| 4 |
7.303-031.0 |
Screw M4x10 -St-P2R (In6Rd) |
|
| 4 |
6.414-141.0 |
Strainer |
|
| 5 |
5.107-262.0 |
Bar |
|
| 5 |
6.362-722.0 |
O-Ring seal 28,0 X 3,0 |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
5.365-181.0 |
Profile gasket |
|
| 5 |
4.064-005.0 |
Suction cover complete |
|
| 6 |
5.044-735.0 |
Holder |
|
| 6 |
6.288-219.0 |
Engine oil 1 L |
|
| 6 |
6.630-201.0 |
Motor protecting switch |
|
| 6 |
6.362-388.0 |
O-Ring seal 8,0x1,5 -EPDM 70 |
|
| 7 |
5.032-475.0 |
Covering cap cover |
|
| 7 |
7.318-070.0 |
Parallel key 5x5x20-C45R DIN 6885-1 |
|
| 7 |
4.037-013.0 |
Hook |
|
| 7 |
6.661-168.0 |
Capacitor - 40 MUEF |
|
| 7 |
6.363-536.0 |
O-Ring seal 21x1,5 |
|
| 8 |
4.580-645.0 |
Proportioning valve chemistry |
|
| 8 |
6.401-399.0 |
Taper roller bearing |
|
| 8 |
5.110-596.0 |
Sleeve |
|
| 8 |
6.647-081.0 |
Cable tape |
|
| 8 |
5.583-177.0 |
Valve screw M20x1 |
|
| 9 |
6.388-216.0 |
Hose DN 5 |
|
| 9 |
4.120-214.0 |
Wobble plate |
|
| 9 |
6.303-200.0 |
Screw 5x25-IN6RD |
|
| 9 |
4.422-011.0 |
Манометр в сборе |
|
| 10 |
4.060-625.0 |
Cover cleaning agents |
|
| 10 |
7.306-092.0 |
Screw M6x20-ST- 8.8-R3R (IN6RD) |
|
| 10 |
6.391-238.0 |
High pressure hose DN6-10m |
|
| 10 |
5.263-058.0 |
Tensioning part |
|
| 10 |
2.884-512.0 |
Valve (3 Stueck) |
|
| 11 |
5.731-652.0 |
Filter with weight |
|
| 11 |
7.312-260.0 |
Washer 6 -100HV-A3E ISO 7094 |
|
| 11 |
6.343-186.0 |
Locking ring |
|
| 11 |
5.034-494.0 |
Retaining bracket |
|
| 12 |
5.032-747.0 |
Retaining bracket |
|
| 12 |
5.132-107.0 |
Plug |
|
| 12 |
4.775-526.0 |
Rotary controller 270 l |
|
| 12 |
6.650-197.0 |
Cable without plug |
|
| 12 |
4.744-221.0 |
Switch complete only for replacement |
|
| 12 |
4.744-168.0 |
Switch complete |
|
| 12 |
4.744-201.0 |
Switch complete |
|
| 13 |
5.392-038.0 |
Wheel cap |
|
| 13 |
7.343-069.0 |
Locking ring 25x1,2-1.4122 DIN 471 |
|
| 13 |
6.648-399.0 |
Cable gland black M16x1,5 |
|
| 14 |
6.343-217.0 |
Clamping washer D25 |
|
| 14 |
5.321-668.0 |
Handle |
|
| 14 |
6.648-415.0 |
Locknut black M16 |
|
| 14 |
5.443-624.0 |
Nipple |
|
| 15 |
4.515-255.0 |
Колесо |
|
| 15 |
6.391-417.0 |
Hose assembly standard DN6 25MPa 15m |
|
| 15 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 16 |
5.105-413.0 |
Axle |
|
| 16 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 16 |
6.661-219.0 |
Capacitor 140MF |
|
| 16 |
4.483-001.0 |
Valve screw |
|
| 17 |
5.050-431.0 |
Frame rear panel |
|
| 17 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 17 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 18 |
5.050-258.0 |
Frame front part |
|
| 18 |
7.312-160.0 |
Toothed lock washer A10,5 -FSt-A3E DIN |
|
| 18 |
6.362-528.0 |
O-Ring seal 9,5 X 2,0 |
|
| 19 |
5.057-062.0 |
Support |
|
| 19 |
5.411-168.0 |
Valve screw M16x1 |
|
| 20 |
5.692-084.0 |
Air circulation |
|
| 20 |
5.692-075.0 |
Air circulation |
|
| 20 |
5.692-087.0 |
Air circulation UL |
|
| 21 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 21 |
5.411-070.0 |
Screw plug |
|
| 22 |
5.044-647.0 |
Holder roller rear |
|
| 22 |
5.332-258.0 |
Helical spring |
|
| 23 |
7.303-110.0 |
Screw 5x35 -10.9-R2R (In6Rd) |
|
| 23 |
4.550-804.0 |
Cylinder head |
|
| 23 |
4.550-813.0 |
Spare part set cylinder head |
|
| 23 |
4.550-700.0 |
Cylinder head |
|
| 24 |
5.128-511.0 |
Axle |
|
| 24 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 25 |
5.515-191.0 |
Roller |
|
| 25 |
5.584-091.0 |
Valve pin check valve |
|
| 26 |
5.044-646.0 |
Holder roller front |
|
| 26 |
2.884-852.0 |
Spare part set nozzle insert |
|
| 26 |
2.884-853.0 |
Spare part set nozzle insert |
|
| 27 |
5.050-252.0 |
Frame front part |
|
| 27 |
4.769-052.0 |
Nozzle insert complete |
|
| 28 |
5.044-216.0 |
Holder |
|
| 28 |
4.481-237.0 |
Valve seat complete only for replacement |
|
| 29 |
7.303-048.0 |
Screw M6x20 -St-R3R (In6Rd) |
|
| 29 |
2.884-856.0 |
Spare part set excess-current |
|
| 30 |
5.032-782.0 |
Moulded part |
|
| 30 |
7.306-023.0 |
Cylinder head screw M6x25 -8.8-A2E ISO4 |
|
| 31 |
6.362-690.0 |
O-Ring seal 7x2 - NBR 70 |
|
| 31 |
6.394-491.0 |
Bottle PE 2,5 L |
|
| 32 |
2.884-551.0 |
Spare part set |
|
| 33 |
4.591-054.0 |
Set excess-current |
|
| 33 |
4.591-058.0 |
Set excess-current |
|
| 34 |
7.311-510.0 |
Hexagon nut M 8-8-A2E ISO 7040 |
|
| 35 |
2.884-869.0 |
Spare part set control piston |
|
| 36 |
4.411-011.0 |
Spare part set HD 7/18 M |
|
| 37 |
4.580-594.0 |
Valve complete |
|
