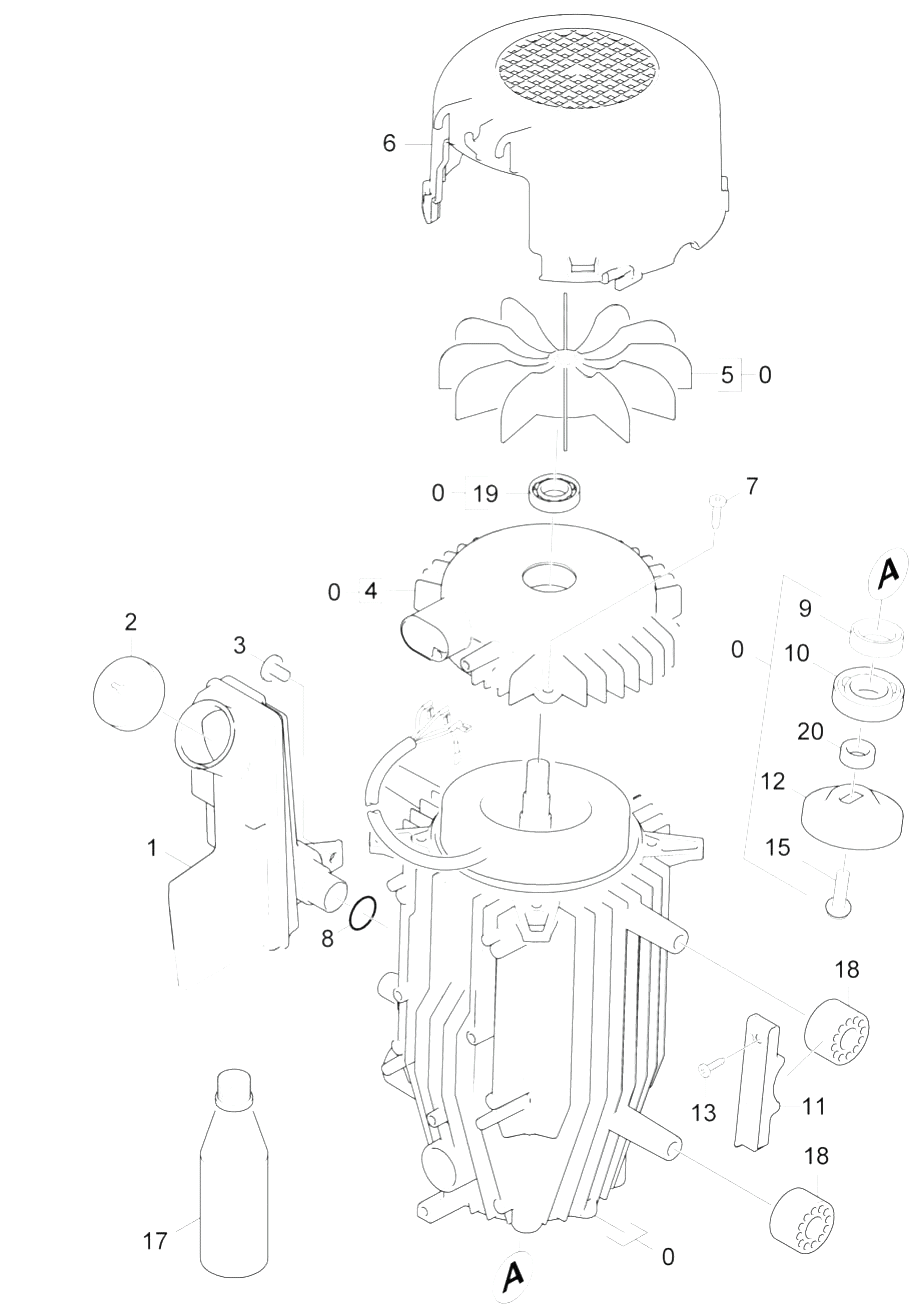

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.624-093.0 | Motor complete only for replacement | |
| 1 | 5.070-639.0 | Tank oil | |
| 2 | 5.064-454.0 | Cover qusty grey | |
| 3 | 6.303-153.0 | Screw M5x15-ST-R2R (IN6RD) | |
| 4 | 5.094-148.0 | Bearing cover B | |
| 5 | 5.600-060.0 | Blower wheel | |
| 6 | 5.692-081.0 | Air circulation | |
| 7 | 6.303-320.0 | Screw M 5x 20-St-R2R | |
| 8 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 9 | 7.367-001.0 | Radial shaft seal ring A24x37x7 -NBR DI | |
| 10 | 6.401-437.0 | Ball bearing | |
| 11 | 5.802-288.0 | Mounting part | |
| 12 | 6.401-395.0 | Wobble plate | |
| 13 | 7.303-108.0 | Screw 5x20 -10.9-R2R (In6Rd) | |
| 15 | 9.086-169.0 | Болт с шайбой M8x16 | |
| 17 | 6.288-050.0 | Engine oil 1L | |
| 18 | 5.767-005.0 | Rubber buffer | |
| 19 | 7.401-128.0 | Ball bearing 6202-2RS -W?lzl.St DIN 625 | |
| 20 | 5.116-144.0 | Washer | |
| 23 | 6.343-168.0 | Lock washer | |
| 24 | 7.303-046.0 | Screw M6x12 -St-R3R (In6Rd) | |
| 25 | 7.311-088.0 | Hexagon nut M10-8-A2K EN 1664 | |
| 26 | 5.107-248.0 | Bar shearing shackle |
