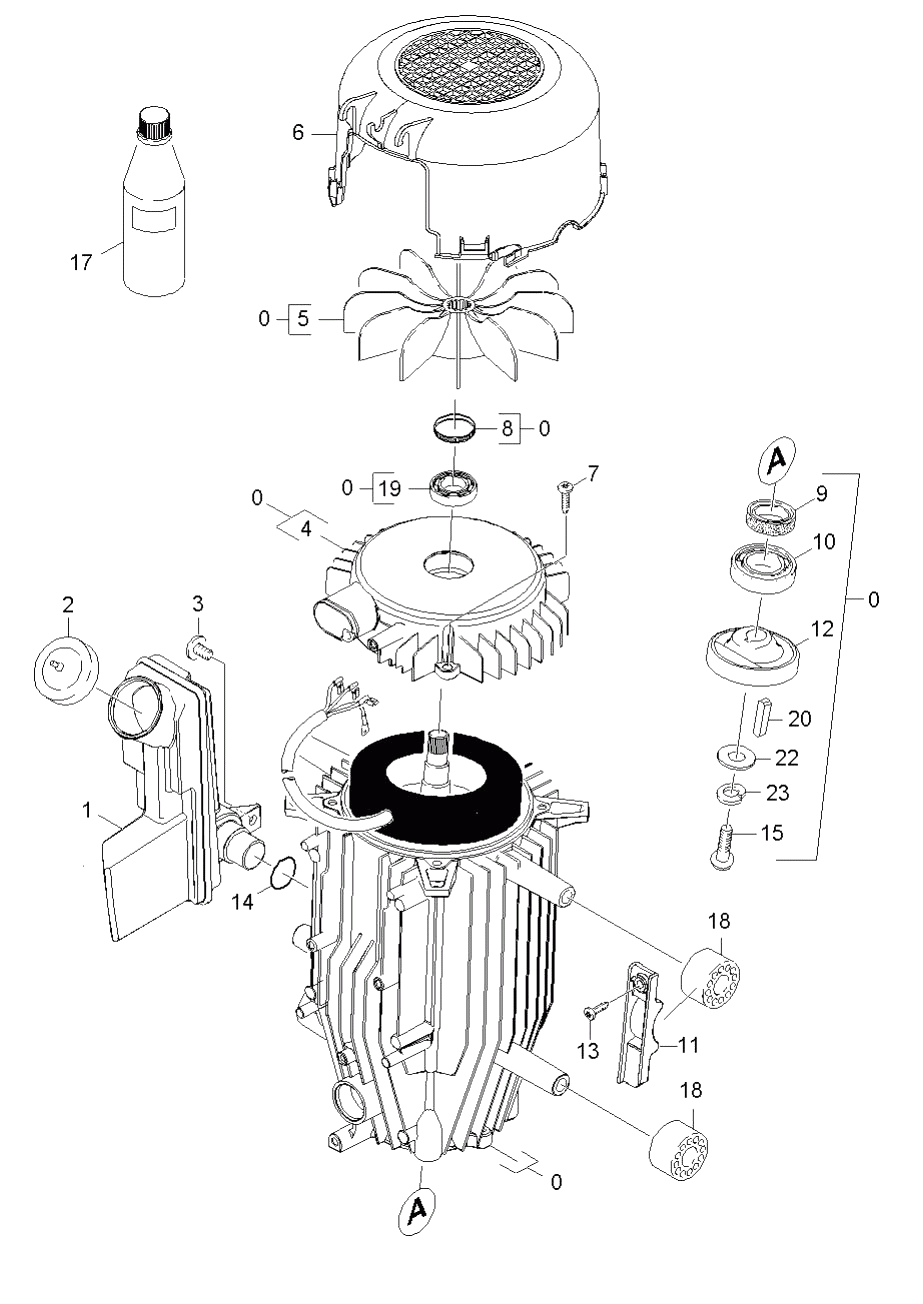

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.623-814.0 | Motor complete only for replacement | |
| 1 | 5.070-639.0 | Tank oil | |
| 2 | 5.063-389.0 | Крышка | |
| 3 | 6.303-153.0 | Screw M5x15-ST-R2R (IN6RD) | |
| 4 | 5.064-197.0 | Bearing cover B | |
| 5 | 5.600-060.0 | Blower wheel | |
| 6 | 5.692-081.0 | Air circulation | |
| 7 | 6.303-320.0 | Screw M 5x 20-St-R2R | |
| 8 | 6.343-015.0 | Tolerance ring 35X6 | |
| 9 | 7.367-001.0 | Radial shaft seal ring A24x37x7 -NBR DI | |
| 10 | 6.401-332.0 | Angular contact ball bearing | |
| 11 | 5.802-288.0 | Mounting part | |
| 12 | 4.120-220.0 | Spare part set wobble plate | |
| 13 | 7.303-108.0 | Screw 5x20 -10.9-R2R (In6Rd) | |
| 14 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 15 | 7.306-042.0 | Cylinder head screw M8x25 -8.8-A2E ISO4 | |
| 17 | 6.288-050.0 | Engine oil 1L | |
| 18 | 5.767-005.0 | Rubber buffer | |
| 20 | 7.318-002.0 | Parallel key 5x5x16 -C45R DIN 6885-1 | |
| 22 | 7.312-277.0 | Washer 8-200HV-A2E ISO7093-1 | |
| 23 | 7.313-004.0 | Spring washer B 8-FSt-A3E DIN 127 | |
| 29 | 7.311-088.0 | Hexagon nut M10-8-A2K EN 1664 |
