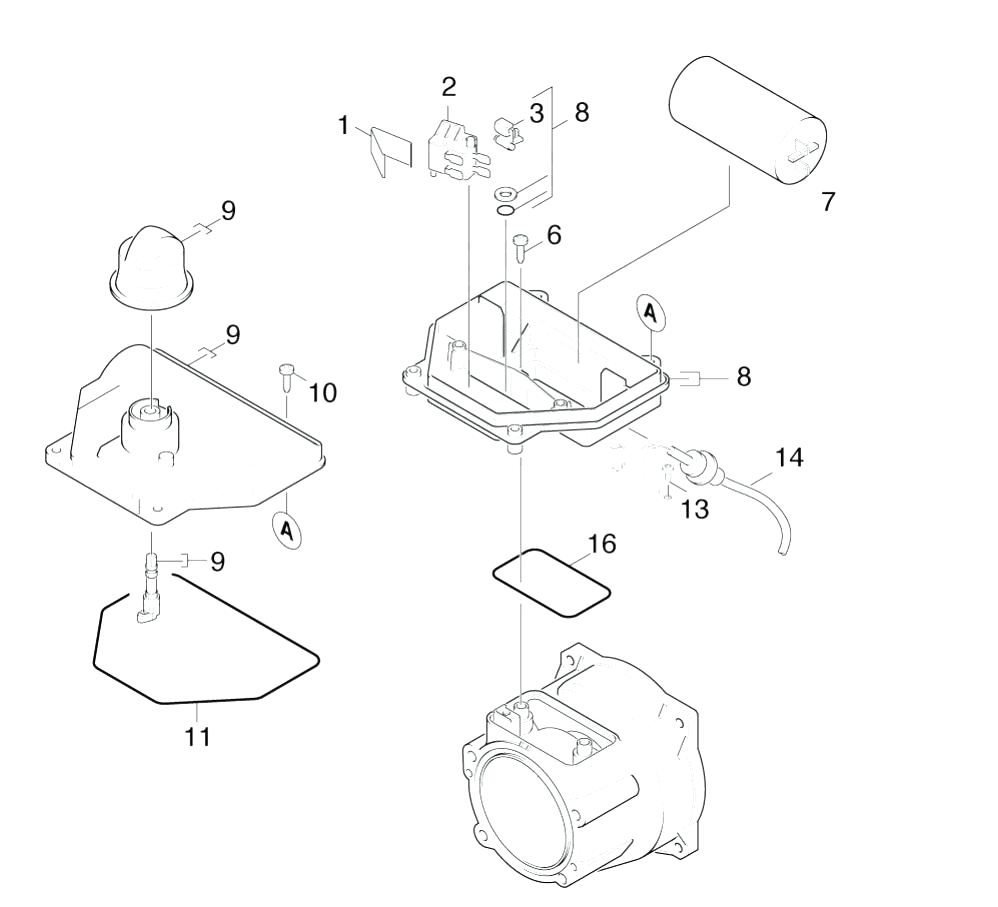

Karcher (Керхер) Электроприборный шкаф (0.112-736.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.337-027.0	Plate spring
2	6.631-946.0	Micro switch
3	5.387-620.0	Warning sticker-Prevent from freezing
3	4.047-003.0	Rocker switch complete
4	7.312-026.0	Washer 6 -A2 ISO 7090
5	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
6	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
7	5.042-846.0	Holder pistol
7	6.661-177.0	Capacitor
7	6.661-129.0	Capacitor 25MF
8	5.605-204.0	Housing chassis
8	4.800-845.0	Electric box complete only for replaceme
8	4.800-846.0	Electric box complete
9	5.031-087.0	Moulded part
9	4.063-667.0	Крышка распределительный щит только для
9	4.063-636.0	Cover electric box
10	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
11	6.388-216.0	Hose DN 5
11	6.273-070.0	Seal string cellular rubber 4
12	5.031-511.0	Covering cap
13	5.110-688.0	Sleeve
13	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
14	5.731-652.0	Filter with weight
14	6.647-739.0	Cable with plug
14	6.648-361.0	Cable with plug *RA H05RN-F 3G1/5,6M
14	6.649-699.0	Cable with plug China H07 RN-F 3G1/5,75m
14	6.647-404.0	Cable with plug *GB
14	6.649-169.0	Cable with plug *JP
15	5.337-026.0	Plate spring
16	6.362-526.0	O-Ring seal 29,1 X 2,55 -NBR 70
16	6.362-887.0	O-Ring seal 65,0 X 2,5
17	5.105-191.0	Axle
18	6.435-196.0	Wheel D 180
19	6.435-197.0	Wheel cap zinc yellow
20	5.066-832.0	Крышка аппарата HD 640 S
21	4.063-224.0	Cap of a tank only for replacement
22	6.303-200.0	Screw 5x25-IN6RD
23	6.389-567.0	Hose clip
