Karcher (Керхер) Мотор (0.116-839.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

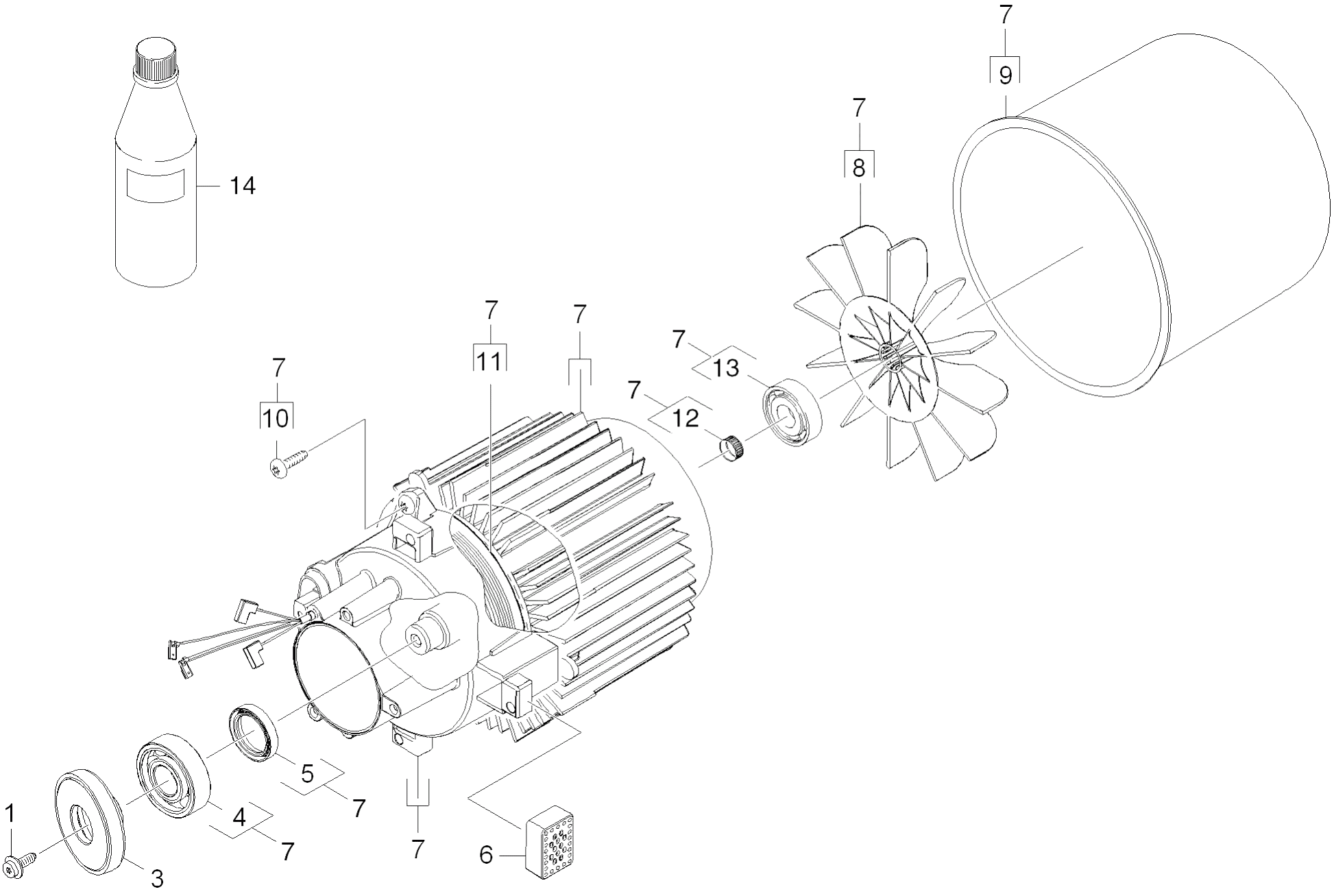

REF.	АРТИКУЛ	ОПИСАНИЕ
1	9.086-169.0	Болт с шайбой M8x16
3	4.120-255.0	Wobble plate 12°45' (D67)
4	6.401-437.0	Ball bearing
5	7.367-024.0	Radial shaft seal ring A26x37x7 -FKM DIN
6	5.767-029.0	Резиновый амортизатор
7	4.624-226.0	Мотор для заменитель HD 5/12
8	5.600-105.0	Blower wheel
9	7.367-001.0	Radial shaft seal ring A24x37x7 -NBR DI
9	5.692-102.0	Air circulation
10	6.401-427.0	Angular contact ball bearing
10	6.401-437.0	Ball bearing
10	6.303-320.0	Screw M 5x 20-St-R2R
11	5.802-288.0	Mounting part
11	5.363-743.0	Joint ring
12	6.401-289.0	Wobble plate
12	6.401-395.0	Wobble plate
12	6.343-218.0	Tolerance ring 15x6
13	7.303-108.0	Screw 5x20 -10.9-R2R (In6Rd)
13	7.401-128.0	Ball bearing 6202-2RS -W?lzl.St DIN 625
14	6.288-050.0	Engine oil 1L
15	9.086-169.0	Болт с шайбой M8x16
17	6.288-050.0	Engine oil 1L
18	5.767-005.0	Rubber buffer
19	7.401-128.0	Ball bearing 6202-2RS -W?lzl.St DIN 625
20	5.116-144.0	Washer
