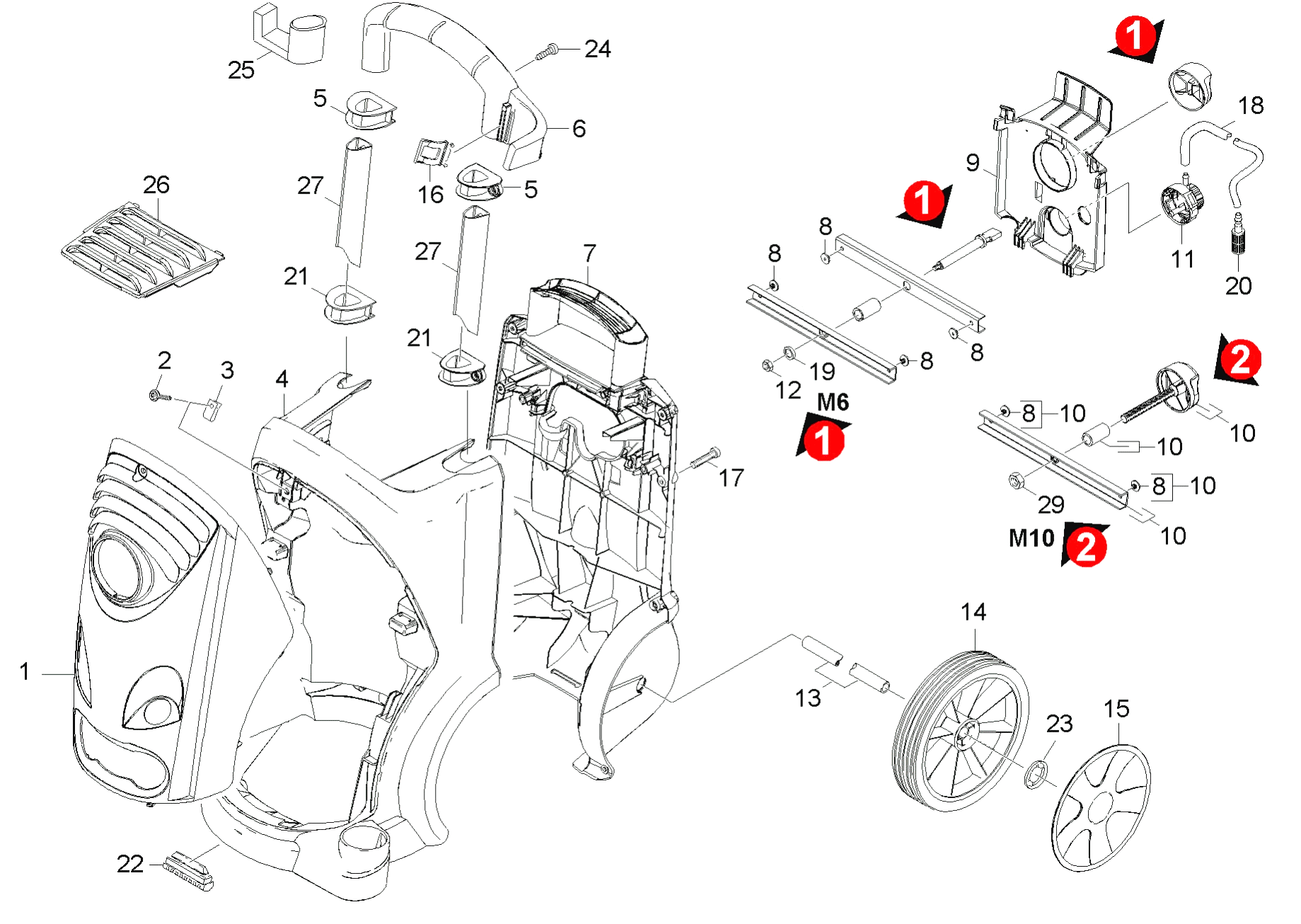

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.069-121.0 | Корпус | |
| 1 | 5.069-202.0 | Device cover | |
| 2 | 6.304-099.0 | Saucer-head screw M 6x 18-4.8-R2R | |
| 3 | 6.310-053.0 | Putting nut | |
| 4 | 5.050-206.0 | Frame front part | |
| 4 | 5.050-286.0 | Frame front part | |
| 5 | 5.032-554.0 | Guide | |
| 6 | 5.321-721.0 | Hand grip | |
| 7 | 5.050-207.0 | Frame rear panel | |
| 8 | 6.315-086.0 | Rivet | |
| 9 | 5.032-556.0 | Covering cap | |
| 10 | 2.885-007.0 | Spare part set Griff | |
| 11 | 4.063-778.0 | Proportioning valve chemistry | |
| 12 | 7.311-061.0 | Hexagon nut M6-LH -8-A2E ISO 4032 | |
| 13 | 5.105-399.0 | Axle | |
| 14 | 6.435-662.0 | Wheel D200 | |
| 14 | 6.435-756.0 | Wheel grey D200 | |
| 15 | 4.515-273.0 | Spare parts set wheel cap | |
| 15 | 4.515-103.0 | Spare parts set wheel cap | |
| 16 | 6.363-166.0 | O-Ring seal | |
| 16 | 5.044-216.0 | Holder | |
| 17 | 6.414-666.0 | Filter cartridge only for replacement | |
| 17 | 7.303-108.0 | Screw 5x20 -10.9-R2R (In6Rd) | |
| 18 | 6.414-688.0 | Filter cup | |
| 18 | 6.388-216.0 | Hose DN 5 | |
| 19 | 6.385-881.0 | Union nut | |
| 19 | 6.392-980.0 | Union nut grey only for replacement | |
| 19 | 7.312-260.0 | Washer 6 -100HV-A3E ISO 7094 | |
| 20 | 6.343-137.0 | Quick-fastener | |
| 20 | 5.731-652.0 | Filter with weight | |
| 21 | 6.435-310.0 | Колесо D300 | |
| 21 | 5.032-555.0 | Guide | |
| 22 | 5.110-378.0 | Sleeve | |
| 22 | 5.057-077.0 | Support | |
| 22 | 5.057-062.0 | Support | |
| 23 | 5.050-907.0 | Sheet metal component accessory shed | |
| 23 | 6.343-168.0 | Lock washer | |
| 24 | 7.306-192.0 | Screw M 6x 12-A2-70 (In6Rd) | |
| 24 | 7.303-046.0 | Screw M6x12 -St-R3R (In6Rd) | |
| 25 | 6.339-261.0 | Rubber buffer | |
| 25 | 5.037-170.0 | Hook | |
| 26 | 5.064-217.0 | Cover air inlet | |
| 27 | 6.368-429.0 | Cap | |
| 27 | 6.368-428.0 | Cap | |
| 27 | 5.107-248.0 | Bar shearing shackle | |
| 29 | 7.312-289.0 | Washer 8 -A2 ISO 7093-1 | |
| 29 | 7.311-088.0 | Hexagon nut M10-8-A2K EN 1664 |
