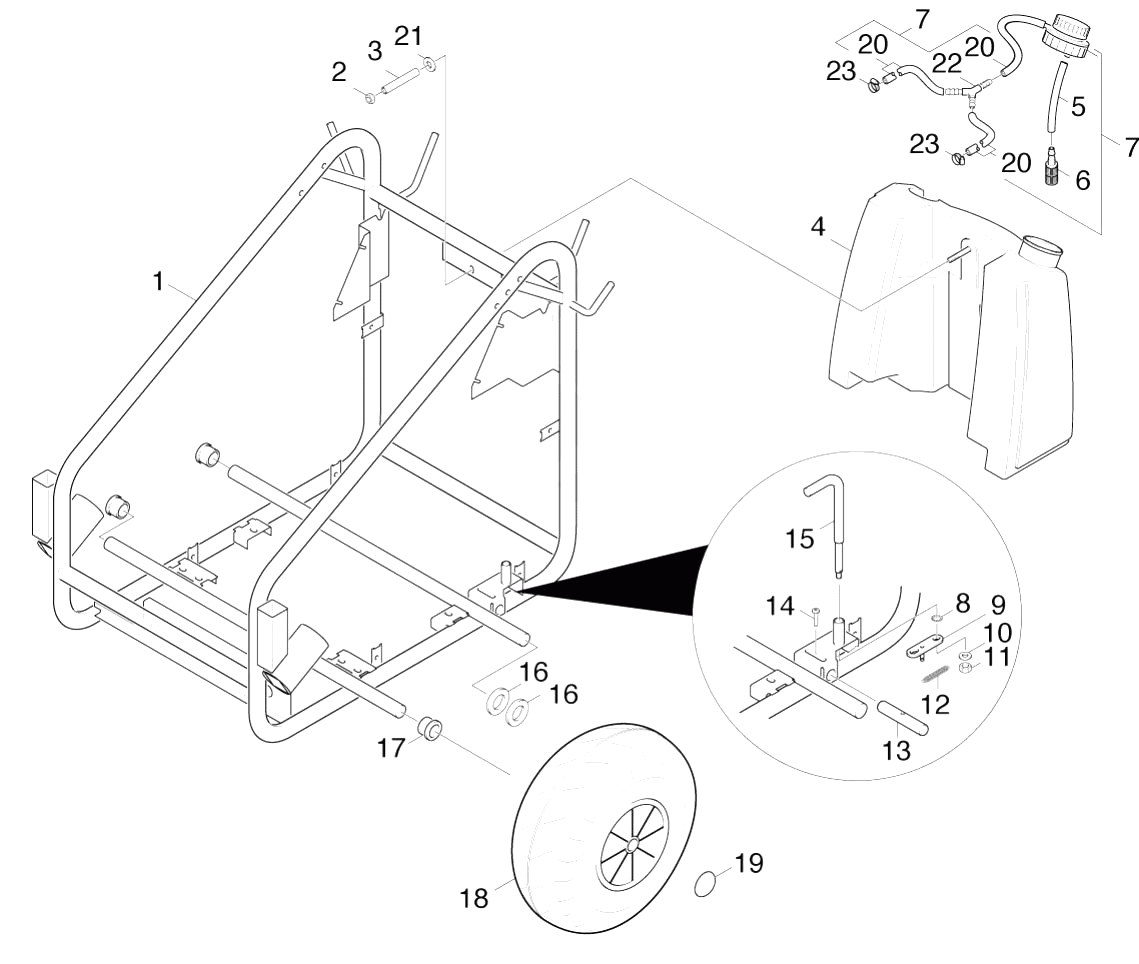

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.050-330.0 | Frame | |
| 2 | 6.343-142.0 | Snap ring WR 22 | |
| 2 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 3 | 5.110-187.0 | Sleeve | |
| 4 | 5.071-069.0 | Tank | |
| 5 | 6.388-216.0 | Hose DN 5 | |
| 6 | 5.731-652.0 | Filter with weight | |
| 7 | 5.115-522.0 | Washer | |
| 7 | 4.580-312.0 | Proportioning valve chemistry | |
| 8 | 5.332-281.0 | Helical spring | |
| 8 | 7.312-158.0 | Washer 11-A2-50 DIN 1441 | |
| 9 | 6.362-796.0 | O-Ring seal 107,62X 2,62 | |
| 9 | 4.481-096.0 | Lever | |
| 10 | 5.060-397.0 | Housing | |
| 10 | 7.312-004.0 | Washer 8 -200HV-A3E ISO 7090 | |
| 11 | 7.306-105.0 | Screw M6x30 -8.8-R3R (In6Rd) | |
| 11 | 7.311-427.0 | Hexagon nut M8 -04-A2E ISO 10511 | |
| 12 | 6.365-059.0 | Grooved ring 22X30X6/8 | |
| 12 | 6.330-095.0 | Extension spring | |
| 13 | 5.115-520.0 | Washer | |
| 13 | 5.316-781.0 | Bolt | |
| 14 | 6.365-056.0 | Compact seal 22X32X6 | |
| 14 | 6.303-172.0 | Oval head screw M 6X 34 | |
| 15 | 5.112-414.0 | Bush | |
| 15 | 5.481-190.0 | Lever | |
| 16 | 5.115-521.0 | Washer | |
| 17 | 6.362-092.0 | O-Ring seal 36,0 X 2,0-NBR 70 | |
| 18 | 6.365-055.0 | Grooved ring 22x30x5 | |
| 19 | 5.550-226.0 | Cylinder head | |
| 20 | 7.306-155.0 | Cylinder head screw M12x100 -8.8-A3E IS | |
| 21 | 6.288-016.0 | Gear oil 1L |
