Karcher (Керхер) Привод (0.112-784.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

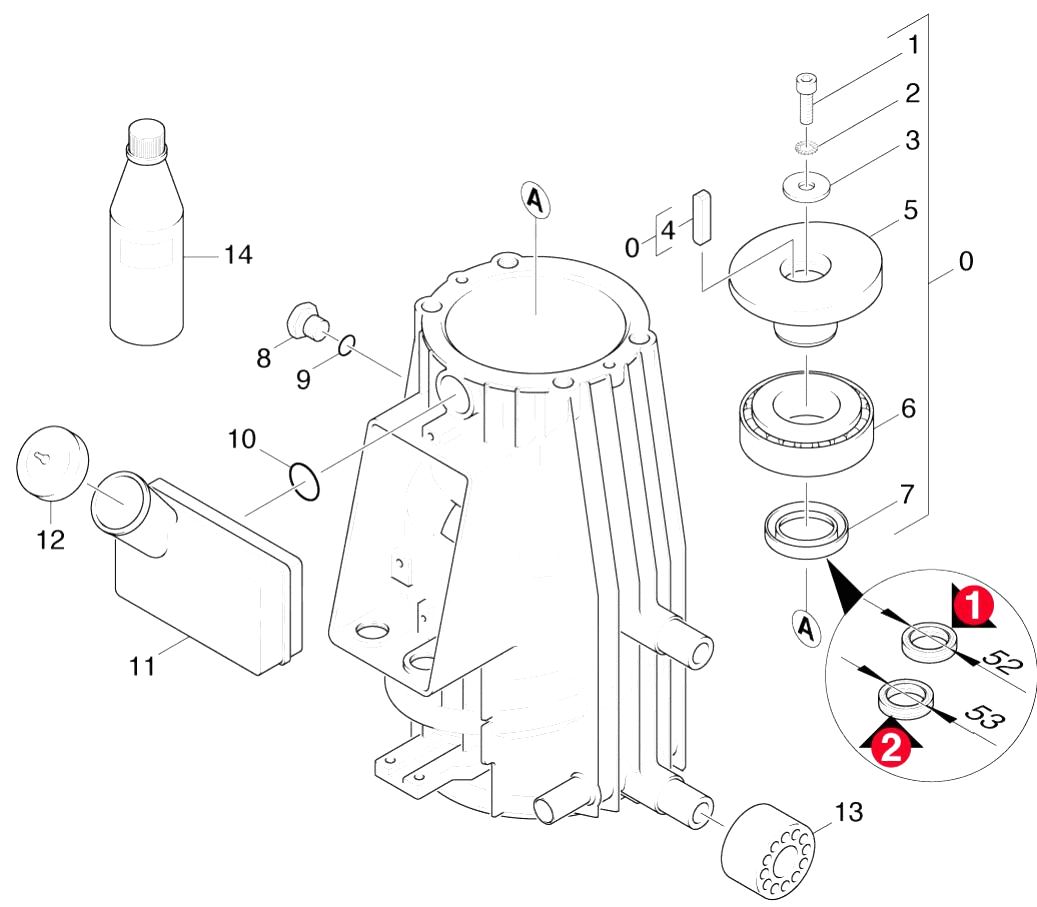

| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-331.0 |
Motor complete |
|
| 1 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 1 |
5.067-031.0 |
Device cover for replacement |
|
| 1 |
5.583-125.0 |
Valve screw |
|
| 1 |
6.631-190.0 |
Motor protecting switch |
|
| 1 |
6.631-428.0 |
Motor protecting switch -22-27A |
|
| 1 |
5.321-534.0 |
Handhold few |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
4.744-239.0 |
Switch complete replacement |
|
| 1 |
4.744-242.0 |
Switch kpl. -nur f?r Ersatz- |
|
| 2 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 2 |
5.321-546.0 |
Handhold |
|
| 2 |
6.362-500.0 |
O-Ring seal complete /1ST.-R. |
|
| 2 |
7.309-016.0 |
Screw M4x22-Z7-1 -4.8-A2E DIN6900 |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
7.343-008.0 |
Locking ring 25x1,2-St-vz DIN 471 |
|
| 2 |
5.034-494.0 |
Retaining bracket |
|
| 3 |
5.115-565.0 |
Washer |
|
| 3 |
7.306-133.0 |
Screw M6x50 -8.8-R3R (In6Rd) |
|
| 3 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 3 |
6.641-708.0 |
Clamping washer 5 |
|
| 3 |
5.322-012.0 |
Hand wheel |
|
| 3 |
5.321-668.0 |
Handle |
|
| 4 |
7.318-035.0 |
Parallel key 8x7x25 -C45R DIN 6885-1 |
|
| 4 |
7.311-003.0 |
Hexagon nut M6 -8-A2E ISO 4032 |
|
| 4 |
4.580-262.0 |
Valve complete |
|
| 4 |
6.362-642.0 |
O-Ring d. 7,65x1,78 -NBR 80 |
|
| 4 |
2.885-132.0 |
Cylinder head -nur fuer Ersatz- |
|
| 4 |
4.775-470.0 |
Rotary controller 416L |
|
| 5 |
5.120-235.0 |
Wobble plate |
|
| 5 |
6.304-099.0 |
Saucer-head screw M 6x 18-4.8-R2R |
|
| 5 |
7.306-091.0 |
Cylinder head screw M12x90- 8.8-A3E ISO |
|
| 5 |
6.472-112.0 |
O-Ring seal 10,0 x 2,4 NBR 70 |
|
| 5 |
5.481-178.0 |
Lever |
|
| 5 |
6.391-351.0 |
Hose assembly only for replacement DN8 4 |
|
| 6 |
6.401-225.0 |
Taper roller bearing 41 |
|
| 6 |
4.580-238.0 |
Proportioning valve chemistry |
|
| 6 |
5.321-556.0 |
Handhold |
|
| 6 |
5.404-079.0 |
Hollow screw |
|
| 6 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 7 |
7.367-009.0 |
Radial shaft seal ring A35x52x7-NBR DIN |
|
| 7 |
7.367-005.0 |
Radial shaft seal ring A35x53x7-NBR DIN |
|
| 7 |
6.388-216.0 |
Hose DN 5 |
|
| 7 |
5.411-117.0 |
Screw plug |
|
| 7 |
6.313-003.0 |
Locking spring |
|
| 7 |
5.553-348.0 |
Piston |
|
| 7 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 8 |
5.411-100.0 |
Screw plug |
|
| 8 |
7.362-004.0 |
Joint ring A12x15,5 -Cu DIN 7603 |
|
| 8 |
5.066-615.0 |
Cover |
|
| 8 |
5.581-243.0 |
Valve seat |
|
| 9 |
6.363-273.0 |
O-Ring seal 11,0 x 2,0 |
|
| 9 |
5.731-652.0 |
Filter with weight |
|
| 9 |
5.442-833.0 |
Piece of tube |
|
| 9 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 9 |
6.273-070.0 |
Seal string cellular rubber 4 |
|
| 9 |
4.037-013.0 |
Hook |
|
| 10 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 10 |
5.071-069.0 |
Tank |
|
| 10 |
5.550-229.0 |
Cylinder head |
|
| 10 |
5.332-413.0 |
Helical spring |
|
| 10 |
5.114-511.0 |
Supportring |
|
| 10 |
5.321-669.0 |
Handhold few |
|
| 11 |
5.070-457.0 |
Tank oil |
|
| 11 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 11 |
5.332-999.0 |
Helical spring |
|
| 11 |
6.362-964.0 |
O-Ring seal complete |
|
| 11 |
6.643-151.0 |
Strip terminal one-pole 16mm? |
|
| 11 |
6.363-244.0 |
O-Ring seal 12.42x1.78 |
|
| 11 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 12 |
5.063-195.0 |
Cover |
|
| 12 |
5.023-334.0 |
C-Profile |
|
| 12 |
7.401-907.0 |
Sphere 3/8 G200-1.4301 DIN 5401 |
|
| 12 |
5.427-214.0 |
Manifold |
|
| 12 |
6.647-408.0 |
Twisting sleeve PG13,5 |
|
| 12 |
2.885-129.0 |
Overflow valve -nur fuer Ersatz- |
|
| 12 |
5.481-331.0 |
Slider |
|
| 13 |
5.057-055.0 |
Support |
|
| 13 |
7.309-015.0 |
Screw assembly M8x16-8.8-A2E-S4-N ISO106 |
|
| 13 |
4.581-019.0 |
Valve seat |
|
| 13 |
6.362-992.0 |
O-Ring seal complete 2,6X1,9 |
|
| 13 |
6.641-394.0 |
Adaptor PG13,5-PG16 |
|
| 13 |
5.581-270.0 |
Valve seat |
|
| 14 |
6.288-016.0 |
Gear oil 1L |
|
| 14 |
6.343-170.0 |
Retaining clip |
|
| 14 |
6.343-186.0 |
Locking ring |
|
| 14 |
6.362-858.0 |
O-Ring seal 11,0 X 1,5 |
|
| 14 |
5.316-400.0 |
Bolt |
|
| 14 |
6.641-356.0 |
Cable gland PG16 |
|
| 14 |
7.401-910.0 |
Sphere 3/8 G80-1.4034 DIN 5401 |
|
| 14 |
5.110-596.0 |
Sleeve |
|
| 15 |
6.647-379.0 |
Cable with plug |
|
| 15 |
6.647-401.0 |
Cable complete |
|
| 15 |
4.421-275.0 |
Adapter pipelines |
|
| 15 |
6.362-151.0 |
O-Ring d. 10 x 2 NBR 70 |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 16 |
6.303-174.0 |
Screw 6,0X20-ST-A2R |
|
| 16 |
4.037-013.0 |
Hook |
|
| 16 |
5.332-999.0 |
Helical spring |
|
| 17 |
4.591-028.0 |
Overflow valve |
|
| 17 |
5.004-641.0 |
Strap |
|
| 17 |
6.362-503.0 |
O-Ring seal 8,0 X 1,0 |
|
| 17 |
5.769-082.0 |
Nozzle insert D2.0/ D2.7/ L38 |
|
| 18 |
5.311-177.0 |
Hexagon nut |
|
| 18 |
5.605-226.0 |
Housing |
|
| 18 |
5.605-230.0 |
Housing |
|
| 18 |
5.332-258.0 |
Helical spring |
|
| 19 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 19 |
6.310-053.0 |
Putting nut |
|
| 19 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 20 |
6.362-575.0 |
O-Ring seal 12,42 KOMPL |
|
| 20 |
5.029-027.0 |
Tube |
|
| 20 |
5.581-212.0 |
Valve seat |
|
| 20 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 21 |
6.362-365.0 |
O-Ring seal complete 1ST.-R.- 7,65X 1,7 |
|
| 21 |
5.110-773.0 |
Sleeve |
|
| 21 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 21 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 22 |
6.362-445.0 |
O-Ring seal 16,0 X 2,4-NBR 80 |
|
| 22 |
6.343-137.0 |
Quick-fastener |
|
| 22 |
6.390-171.0 |
Hose assembly DN8 max. 31,5MPa 20m |
|
| 22 |
5.443-370.0 |
Nipple |
|
| 23 |
7.306-320.0 |
Oval head screw M 5x40-A2-70 ISO 7045 |
|
| 23 |
6.435-308.0 |
Wheel |
|
| 23 |
5.427-295.0 |
Manifold high-pressure |
|
| 24 |
6.630-008.0 |
Micro switch |
|
| 24 |
6.362-486.0 |
O-Ring seal 4,7 X 1,9 -NBR 70 |
|
| 24 |
6.362-386.0 |
O-Ring seal 5,0 x 1,5-NBR 80 |
|
| 25 |
5.057-054.0 |
Support |
|
| 26 |
6.388-194.0 |
Hose DN 7 |
|
| 26 |
5.411-152.0 |
Screw plug |
|
| 27 |
5.337-021.0 |
Plate spring |
|
| 27 |
7.306-197.0 |
Screw M6x35 -A2-70 (In6Rd) |
|
| 27 |
7.306-118.0 |
Screw M 6x35 -8.8-R3R (In6Rd) |
|
| 28 |
5.321-430.0 |
Handhold |
|
| 28 |
4.769-053.0 |
Nozzle insert kpl. |
|
| 29 |
6.363-282.0 |
O-Ring seal 6,3x2,4-NBR 70 |
|
| 31 |
6.362-993.0 |
O-Ring seal complete |
|
| 33 |
4.251-031.0 |
Bearing support complete |
|
| 34 |
4.037-013.0 |
Hook |
|
| 35 |
5.801-122.0 |
Cover plate |
|
| 36 |
5.115-758.0 |
Washer |
|
| 37 |
4.321-102.0 |
Crank complete |
|
| 38 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 39 |
5.031-462.0 |
Guide |
|
| 40 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 41 |
7.311-620.0 |
Cap nut M8 -A2 DIN 986 |
|
| 42 |
5.105-264.0 |
Axle |
|
| 43 |
5.515-112.0 |
Deflection pulley |
|
| 44 |
5.031-463.0 |
Slider |
|
| 45 |
6.343-127.0 |
Quick-fastener |
|
| 46 |
7.343-007.0 |
Locking ring 20x1,2-FST-RF DIN 471 |
|
| 47 |
4.515-037.0 |
Deflection pulley complete |
|
| 48 |
5.044-071.0 |
Holder |
|
