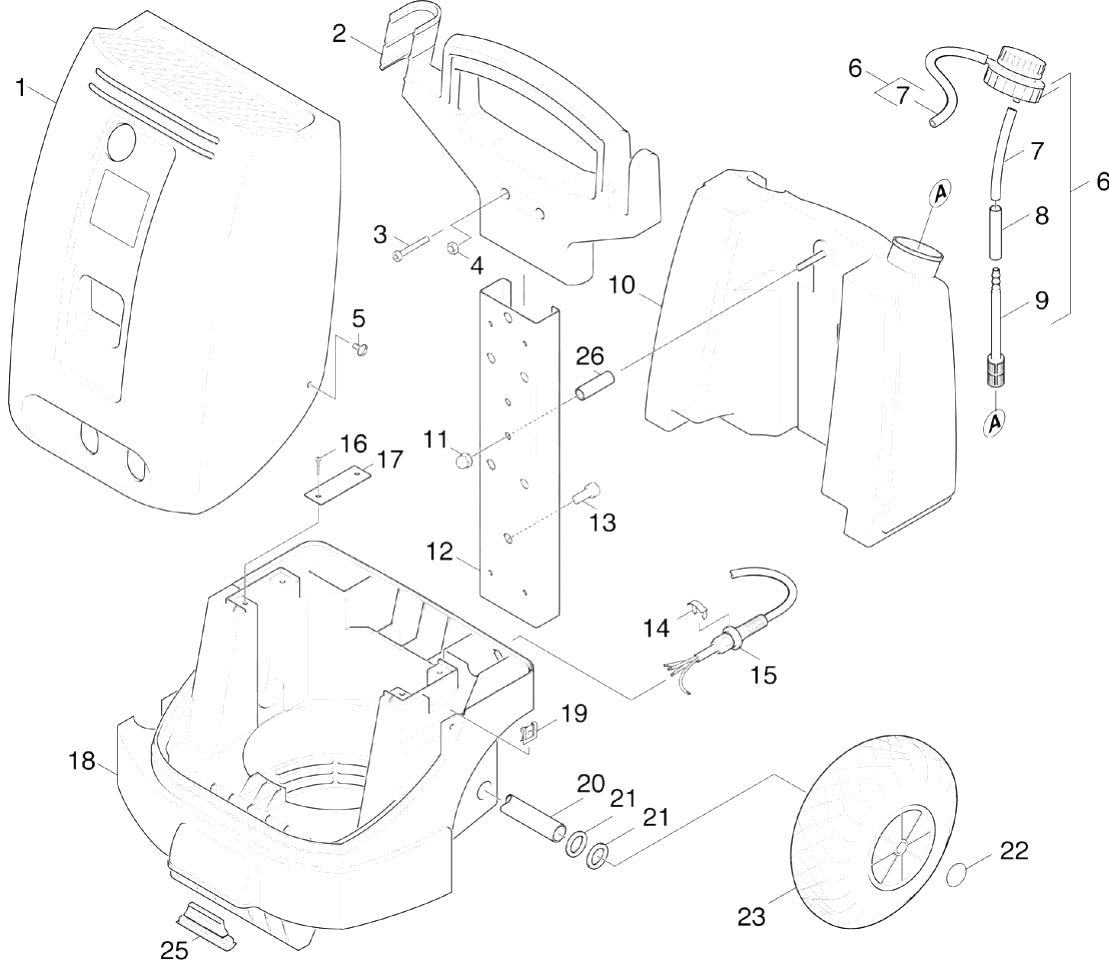

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.067-031.0 | Device cover for replacement | |
| 2 | 5.321-423.0 | Handhold | |
| 3 | 7.306-133.0 | Screw M6x50 -8.8-R3R (In6Rd) | |
| 4 | 7.311-003.0 | Hexagon nut M6 -8-A2E ISO 4032 | |
| 5 | 6.304-099.0 | Saucer-head screw M 6x 18-4.8-R2R | |
| 6 | 4.580-238.0 | Proportioning valve chemistry | |
| 7 | 6.388-194.0 | Hose DN 7 | |
| 8 | 5.025-747.0 | Tube | |
| 9 | 6.414-136.0 | Filter | |
| 10 | 5.071-069.0 | Tank | |
| 11 | 6.310-062.0 | Cap nut M 8 | |
| 12 | 5.023-117.0 | U-Section | |
| 13 | 7.309-015.0 | Screw assembly M8x16-8.8-A2E-S4-N ISO106 | |
| 14 | 6.343-170.0 | Retaining clip | |
| 14 | 6.343-186.0 | Locking ring | |
| 15 | 6.647-379.0 | Cable with plug | |
| 15 | 6.647-401.0 | Cable complete | |
| 16 | 6.303-175.0 | Screw 3,5X14 | |
| 16 | 6.303-174.0 | Screw 6,0X20-ST-A2R | |
| 17 | 7.312-004.0 | Washer 8 -200HV-A3E ISO 7090 | |
| 17 | 5.004-641.0 | Strap | |
| 18 | 7.311-427.0 | Hexagon nut M8 -04-A2E ISO 10511 | |
| 18 | 5.605-226.0 | Housing | |
| 18 | 5.605-230.0 | Housing | |
| 19 | 4.021-082.0 | Angle | |
| 19 | 6.310-053.0 | Putting nut | |
| 20 | 5.029-027.0 | Tube | |
| 21 | 7.313-002.0 | Spring washer B 5-FSt-A3E DIN 127 | |
| 21 | 5.110-773.0 | Sleeve | |
| 22 | 5.045-664.0 | Sheet metal component | |
| 22 | 6.343-137.0 | Quick-fastener | |
| 23 | 6.330-011.0 | Extension spring | |
| 23 | 6.435-308.0 | Wheel | |
| 25 | 6.431-053.0 | Clamping bolt | |
| 25 | 5.057-054.0 | Support | |
| 26 | 7.304-383.0 | Hexagonal head screw M 6X 16-8.8-A2E IS | |
| 26 | 5.028-703.0 | Tube | |
| 27 | 6.641-851.0 | Wire protecting sleeve | |
| 28 | 6.303-105.0 | Screw M6x20-ST-A2R DIN 7500-1 | |
| 30 | 6.339-101.0 | Rubber buffer | |
| 31 | 7.303-384.0 | Sheet metal screw ST4,8X38,0-ST-A2S IS | |
| 33 | 5.110-413.0 | Sleeve | |
| 34 | 6.435-137.0 | Колесо 13X5.00-6 | |
| 35 | 6.343-137.0 | Quick-fastener | |
| 36 | 6.641-640.0 | Wire protecting sleeve D21 | |
| 38 | 6.339-100.0 | Rubber buffer | |
| 39 | 5.321-273.0 | Handhold | |
| 40 | 6.339-060.0 | Rubber buffer M8 | |
| 41 | 5.108-112.0 | Pin | |
| 42 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 43 | 5.443-291.0 | Hose stem | |
| 44 | 5.310-076.0 | Nut | |
| 56 | 6.654-026.0 | Battery 36AH 12V | |
| 61 | 7.312-277.0 | Washer 8-200HV-A2E ISO7093-1 | |
| 62 | 7.312-166.0 | Toothed lock washer A8,4-FSt-A3E DIN 67 | |
| 64 | 6.303-122.0 | M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO | |
| 65 | 7.312-281.0 | Washer 4 -200HV-A2E ISO7093-1 | |
| 66 | 5.045-665.0 | Sheet metal component | |
| 67 | 5.042-406.0 | Holder | |
| 69 | 6.646-203.0 | Plug socket two-pole 12V-8A | |
| 70 | 4.820-517.0 | Cable negative black 16,0mm?x600mm |
