Karcher (Керхер) Привод (0.111-756.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

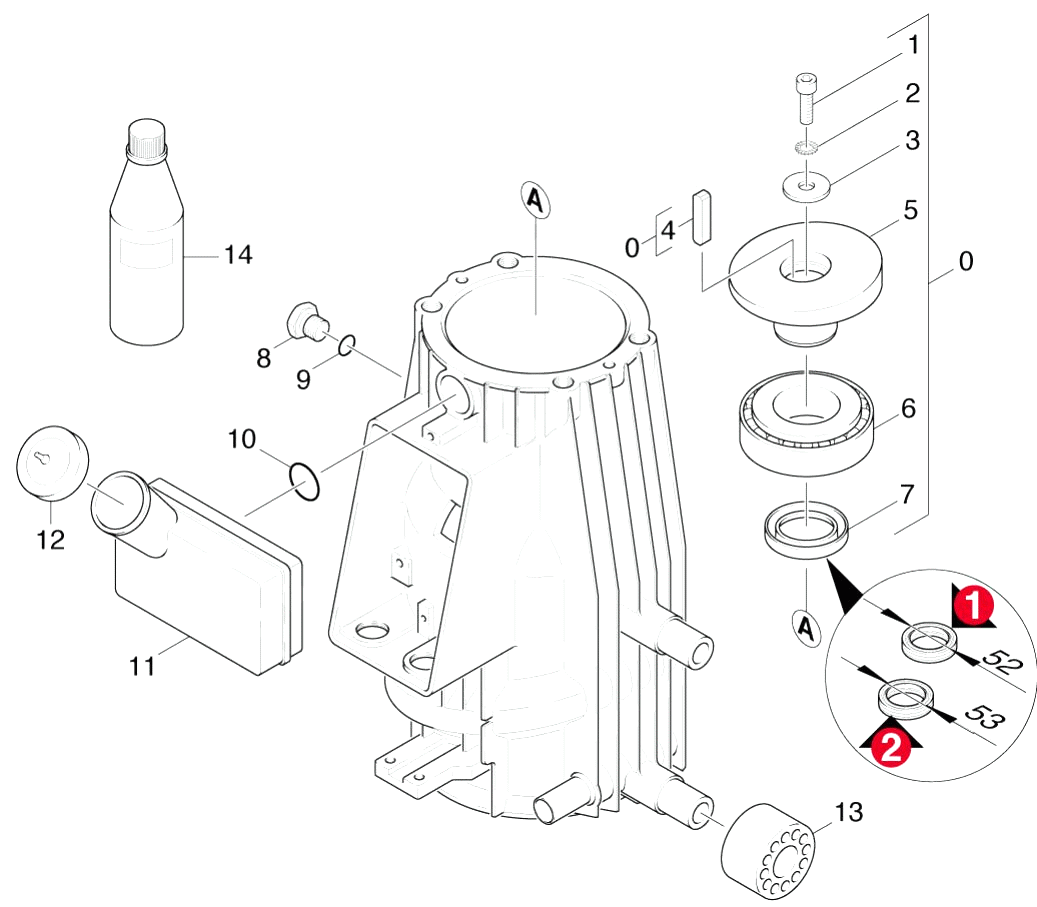

| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-316.0 |
Motor complete |
|
| 1 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 1 |
5.583-125.0 |
Valve screw |
|
| 1 |
5.067-031.0 |
Device cover for replacement |
|
| 1 |
5.321-534.0 |
Handhold few |
|
| 2 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 2 |
6.362-500.0 |
O-Ring seal complete /1ST.-R. |
|
| 2 |
5.321-546.0 |
Handhold |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 3 |
5.115-565.0 |
Washer |
|
| 3 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 3 |
7.306-133.0 |
Screw M6x50 -8.8-R3R (In6Rd) |
|
| 3 |
5.322-012.0 |
Hand wheel |
|
| 4 |
7.318-035.0 |
Parallel key 8x7x25 -C45R DIN 6885-1 |
|
| 4 |
4.580-262.0 |
Valve complete |
|
| 4 |
7.311-003.0 |
Hexagon nut M6 -8-A2E ISO 4032 |
|
| 4 |
6.362-642.0 |
O-Ring d. 7,65x1,78 -NBR 80 |
|
| 5 |
5.120-245.0 |
Wobble plate |
|
| 5 |
7.306-091.0 |
Cylinder head screw M12x90- 8.8-A3E ISO |
|
| 5 |
6.304-099.0 |
Saucer-head screw M 6x 18-4.8-R2R |
|
| 5 |
5.481-178.0 |
Lever |
|
| 6 |
6.401-225.0 |
Taper roller bearing 41 |
|
| 6 |
4.580-238.0 |
Proportioning valve chemistry |
|
| 6 |
5.404-079.0 |
Hollow screw |
|
| 7 |
7.367-009.0 |
Radial shaft seal ring A35x52x7-NBR DIN |
|
| 7 |
7.367-005.0 |
Radial shaft seal ring A35x53x7-NBR DIN |
|
| 7 |
5.411-117.0 |
Screw plug |
|
| 7 |
6.388-216.0 |
Hose DN 5 |
|
| 7 |
5.553-348.0 |
Piston |
|
| 8 |
5.411-100.0 |
Screw plug |
|
| 8 |
7.362-004.0 |
Joint ring A12x15,5 -Cu DIN 7603 |
|
| 8 |
5.581-243.0 |
Valve seat |
|
| 9 |
6.363-273.0 |
O-Ring seal 11,0 x 2,0 |
|
| 9 |
5.442-833.0 |
Piece of tube |
|
| 9 |
5.731-652.0 |
Filter with weight |
|
| 9 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 10 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 10 |
5.550-187.0 |
Cylinder head |
|
| 10 |
5.071-069.0 |
Tank |
|
| 10 |
5.332-413.0 |
Helical spring |
|
| 11 |
5.070-457.0 |
Tank oil |
|
| 11 |
5.332-999.0 |
Helical spring |
|
| 11 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 11 |
6.362-964.0 |
O-Ring seal complete |
|
| 12 |
5.063-195.0 |
Cover |
|
| 12 |
7.401-907.0 |
Sphere 3/8 G200-1.4301 DIN 5401 |
|
| 12 |
5.023-334.0 |
C-Profile |
|
| 12 |
5.427-214.0 |
Manifold |
|
| 13 |
5.057-055.0 |
Support |
|
| 13 |
4.581-019.0 |
Valve seat |
|
| 13 |
7.309-015.0 |
Screw assembly M8x16-8.8-A2E-S4-N ISO106 |
|
| 13 |
6.362-992.0 |
O-Ring seal complete 2,6X1,9 |
|
| 14 |
6.288-016.0 |
Gear oil 1L |
|
| 14 |
6.362-858.0 |
O-Ring seal 11,0 X 1,5 |
|
| 14 |
6.343-186.0 |
Locking ring |
|
| 14 |
6.343-170.0 |
Retaining clip |
|
| 14 |
5.316-400.0 |
Bolt |
|
| 15 |
6.647-401.0 |
Cable complete |
|
| 15 |
6.647-379.0 |
Cable with plug |
|
| 15 |
4.421-275.0 |
Adapter pipelines |
|
| 16 |
6.303-174.0 |
Screw 6,0X20-ST-A2R |
|
| 16 |
4.037-013.0 |
Hook |
|
| 17 |
4.591-028.0 |
Overflow valve |
|
| 17 |
5.004-641.0 |
Strap |
|
| 18 |
5.311-177.0 |
Hexagon nut |
|
| 18 |
5.605-226.0 |
Housing |
|
| 18 |
5.605-230.0 |
Housing |
|
| 19 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 19 |
6.310-053.0 |
Putting nut |
|
| 20 |
6.362-575.0 |
O-Ring seal 12,42 KOMPL |
|
| 20 |
5.029-027.0 |
Tube |
|
| 21 |
6.362-365.0 |
O-Ring seal complete 1ST.-R.- 7,65X 1,7 |
|
| 21 |
5.110-773.0 |
Sleeve |
|
| 22 |
6.362-445.0 |
O-Ring seal 16,0 X 2,4-NBR 80 |
|
| 22 |
6.343-137.0 |
Quick-fastener |
|
| 23 |
6.435-308.0 |
Wheel |
|
| 24 |
6.630-008.0 |
Micro switch |
|
| 25 |
5.057-054.0 |
Support |
|
| 26 |
6.388-194.0 |
Hose DN 7 |
|
