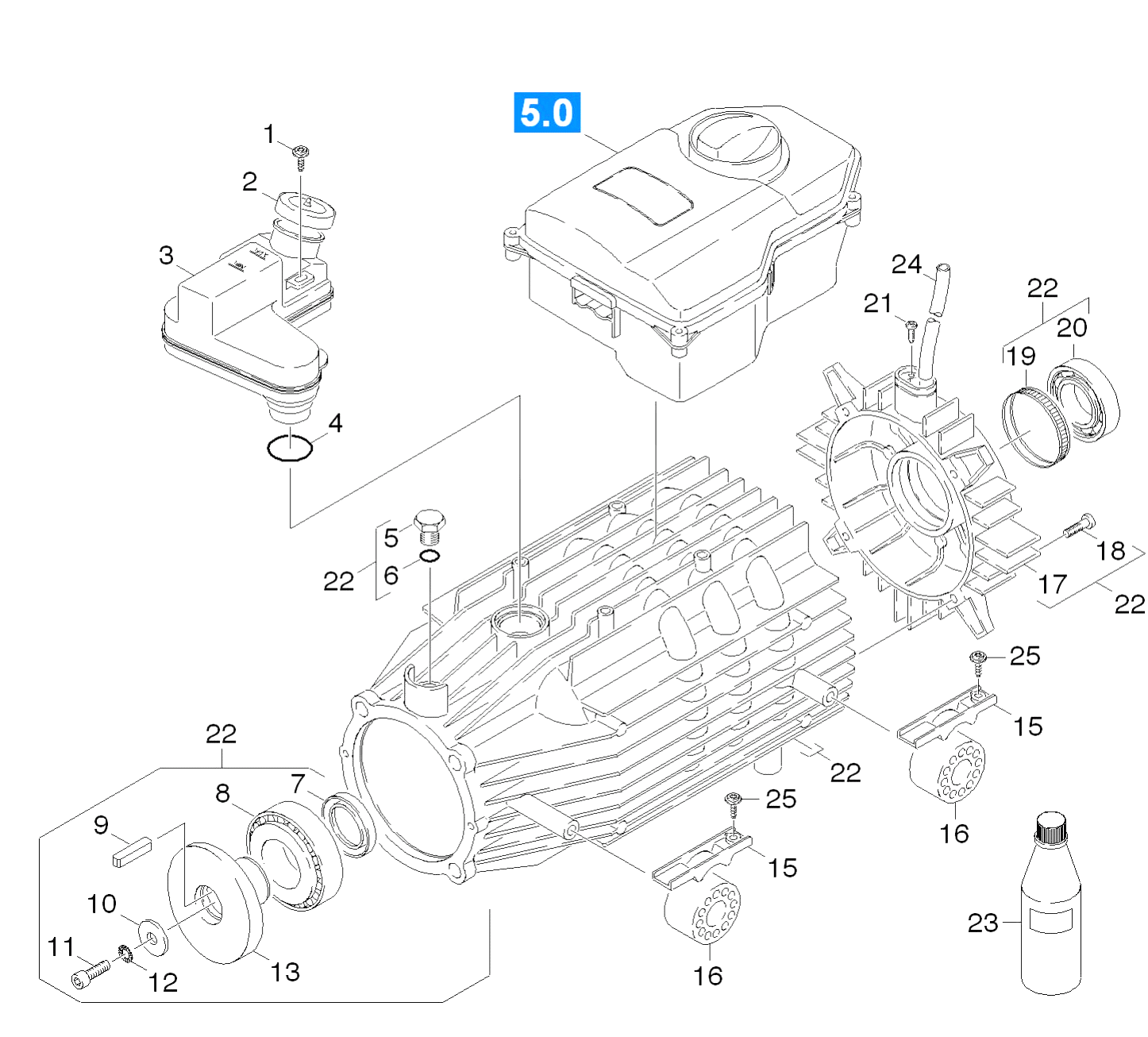

Karcher (Керхер) Мотор (0.112-816.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-108.0	Screw 5x20 -10.9-R2R (In6Rd)
2	5.063-195.0	Cover
3	5.070-604.0	Tank
4	6.362-526.0	O-Ring seal 29,1 X 2,55 -NBR 70
5	5.411-100.0	Screw plug
6	6.363-273.0	O-Ring seal 11,0 x 2,0
7	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
8	6.401-225.0	Taper roller bearing 41
9	4.515-092.0	Колесо в сборе
9	7.318-035.0	Parallel key 8x7x25 -C45R DIN 6885-1
10	5.069-035.0	Кожух
10	5.115-565.0	Washer
11	5.032-463.0	Covering cap hose guide
11	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
12	7.303-110.0	Screw 5x35 -10.9-R2R (In6Rd)
12	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
13	5.013-091.0	Funnel
13	4.120-240.0	Wobble plate -nur f?r Ersatz-
14	5.057-062.0	Support
15	5.033-342.0	Axle
15	5.029-000.0	Axle
15	5.802-288.0	Mounting part
16	5.032-426.0	Covering cap
16	5.767-005.0	Rubber buffer
17	5.251-049.0	Bearing support right
17	5.064-006.0	Bearing cover B
18	5.251-048.0	Bearing support left
18	7.303-049.0	Screw M6x25-ST-A3R (IN6RD)
19	5.032-406.0	Covering cap
19	6.343-010.0	Tolerance ring 62x10
20	5.032-413.0	Covering cap drawer
20	6.401-253.0	Ball bearing 6305-2Z
21	4.050-601.0	Frame complete
21	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
22	4.580-608.0	Proportioning valve chemistry
22	4.623-457.0	Motor complete only for replacement
23	6.388-194.0	Hose DN 7
23	6.288-016.0	Gear oil 1L
24	6.388-216.0	Hose DN 5
24	6.642-011.0	Insulating hose 10
25	5.731-652.0	Filter with weight
25	7.303-110.0	Screw 5x35 -10.9-R2R (In6Rd)
26	6.648-814.0	Cable complete
26	6.648-773.0	Cable complete
27	6.343-186.0	Locking ring
28	6.646-044.0	Plug CEE-32 A
28	6.646-030.0	Plug CEE 16A
29	6.389-567.0	Hose clip
30	6.343-162.0	Lock washer -25
