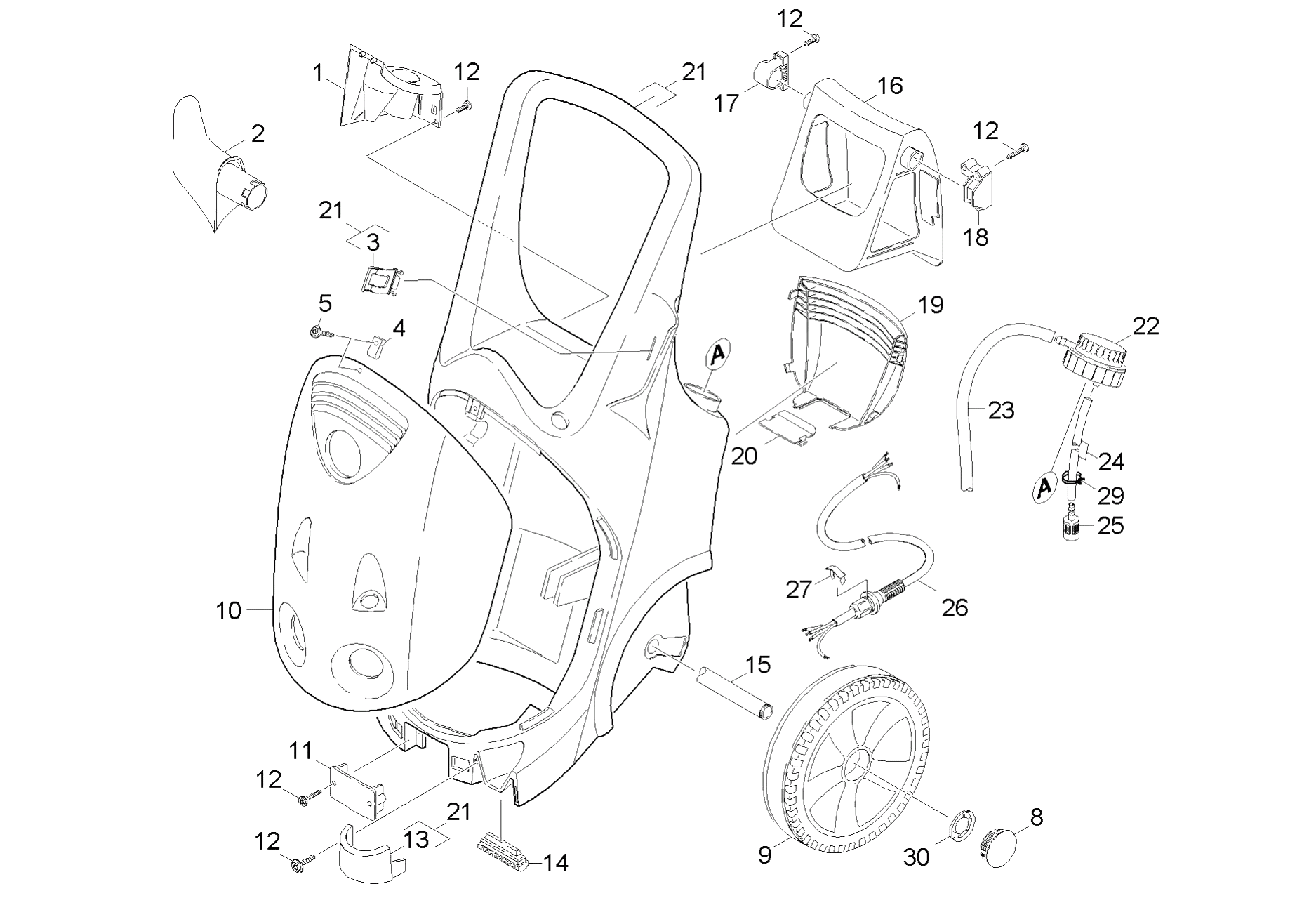

Karcher (Керхер) Корпус (0.115-181.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.667-061.0	Nozzle holder
2	5.044-668.0	Holder
3	5.044-666.0	Holder jet pipe
4	6.310-053.0	Putting nut
5	6.304-099.0	Saucer-head screw M 6x 18-4.8-R2R
8	2.889-086.0	Set wheel cap
9	4.515-344.0	Wheel complete
10	5.069-441.0	Cover basalt grey only for replacement R
11	5.032-463.0	Covering cap hose guide
12	5.033-390.0	Tube accessories holder 1
12	7.303-110.0	Screw 5x35 -10.9-R2R (In6Rd)
13	7.304-233.0	Hexagonal head screw M 6X 70-A4-70 ISO
13	5.013-091.0	Funnel
14	7.306-129.0	Screw M6x40 -8.8-R3R (In6Rd)
14	5.057-062.0	Support
15	4.862-225.0	Filter chemistry regulation
15	5.033-342.0	Axle
16	6.388-216.0	Hose DN 5
16	5.032-426.0	Covering cap
17	7.305-038.0	Countersunk screw M5x10-A2-70-schw (IN6
17	5.251-049.0	Bearing support right
18	5.044-906.0	Holder chemistry
18	5.251-048.0	Bearing support left
19	7.312-002.0	Washer 5-200HV-A3E ISO 7090
19	5.032-406.0	Covering cap
20	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
20	5.032-413.0	Covering cap drawer
21	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
22	7.311-622.0	Cap nut M 6-A2 DIN 986
23	6.343-137.0	Quick-fastener
24	6.435-308.0	Wheel
25	5.111-067.0	Spacer sleeve
26	6.403-059.0	Plain bearing
27	5.105-637.0	Axle
28	5.052-077.0	Stand qusty grey HD Cage
29	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
