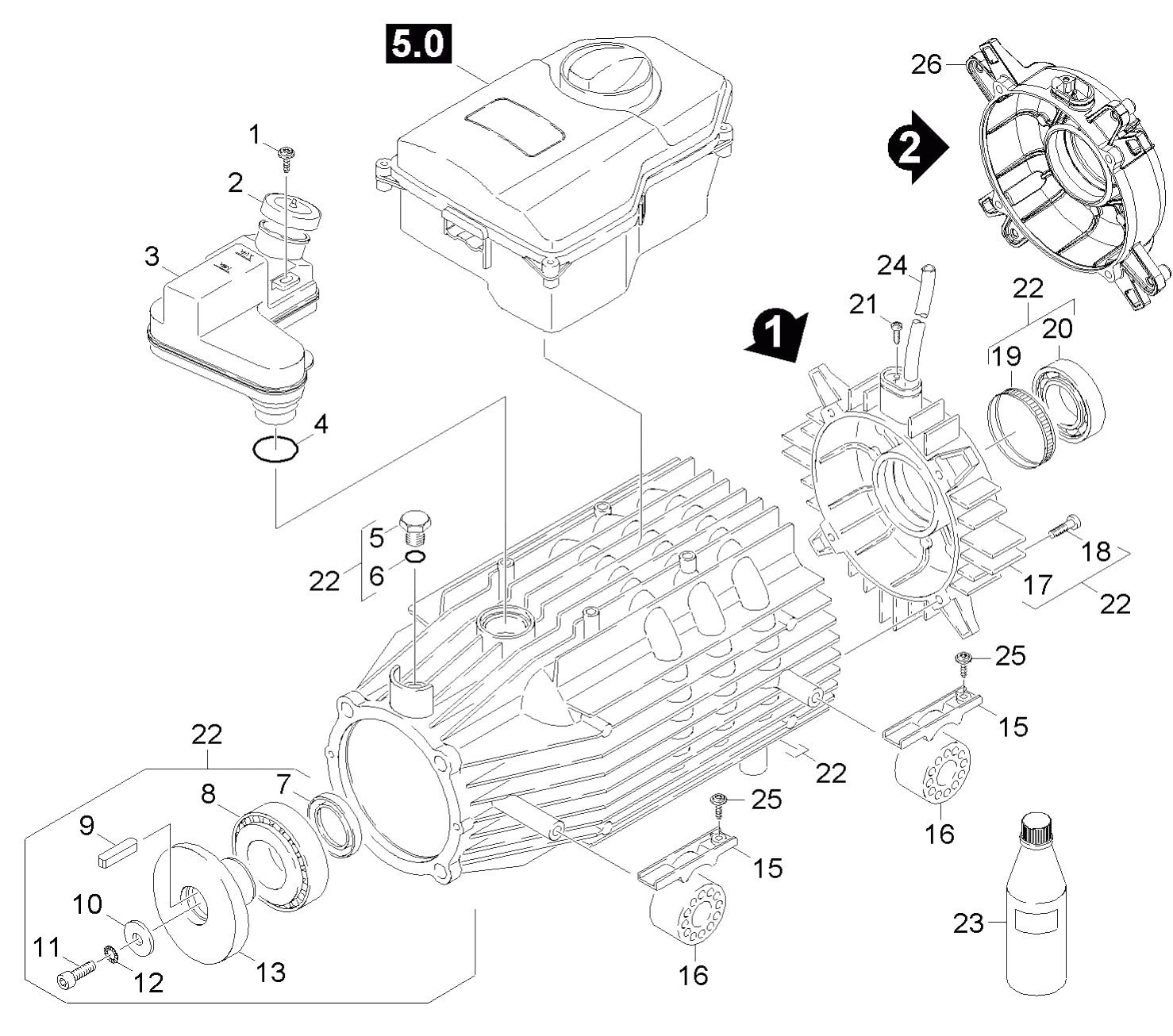

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 7.303-108.0 | Screw 5x20 -10.9-R2R (In6Rd) | |
| 2 | 5.063-195.0 | Cover | |
| 3 | 5.070-604.0 | Tank | |
| 4 | 6.362-722.0 | O-Ring seal 28,0 X 3,0 | |
| 5 | 5.411-100.0 | Screw plug | |
| 6 | 6.363-273.0 | O-Ring seal 11,0 x 2,0 | |
| 7 | 7.367-009.0 | Radial shaft seal ring A35x52x7-NBR DIN | |
| 8 | 6.401-225.0 | Taper roller bearing 41 | |
| 9 | 7.318-035.0 | Parallel key 8x7x25 -C45R DIN 6885-1 | |
| 10 | 5.115-565.0 | Washer | |
| 11 | 7.306-041.0 | Cylinder head screw M8x20 -8.8-A2E ISO | |
| 12 | 7.312-159.0 | Toothed lock washer A8,4-FST-PH DIN 679 | |
| 13 | 5.120-356.0 | Wobble plate | |
| 13 | 4.120-240.0 | Wobble plate -nur f?r Ersatz- | |
| 15 | 5.802-288.0 | Mounting part | |
| 16 | 5.767-005.0 | Rubber buffer | |
| 17 | 5.064-006.0 | Bearing cover B | |
| 18 | 7.303-049.0 | Screw M6x25-ST-A3R (IN6RD) | |
| 19 | 6.343-010.0 | Tolerance ring 62x10 | |
| 20 | 6.401-253.0 | Ball bearing 6305-2Z | |
| 21 | 7.303-031.0 | Screw M4x10 -St-P2R (In6Rd) | |
| 22 | 4.623-651.0 | Motor complete only for replacement |
