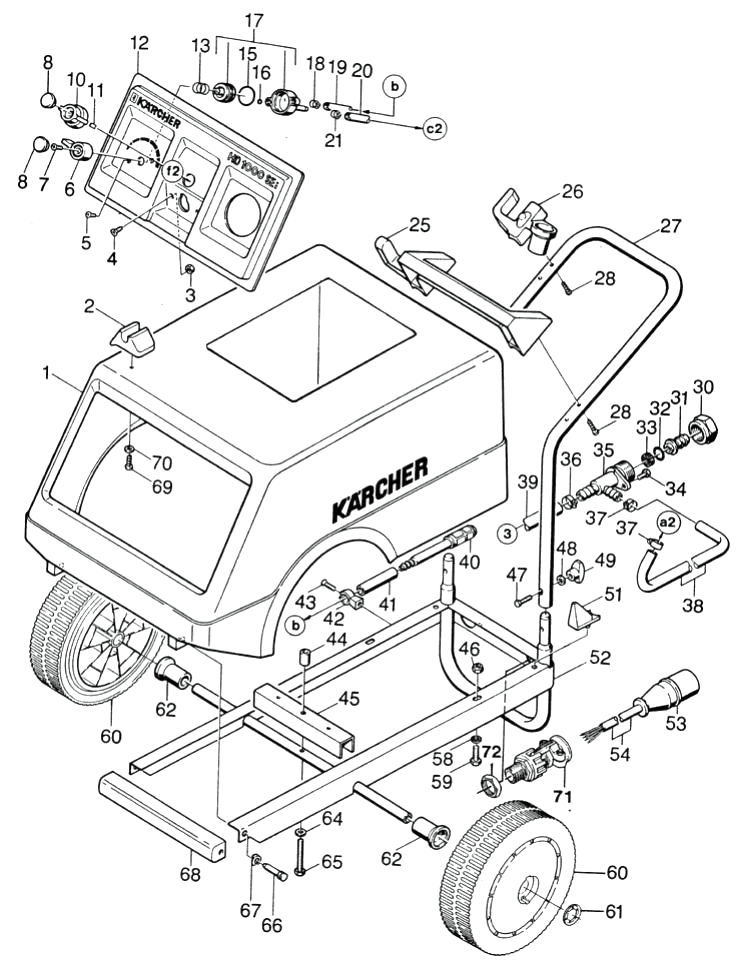

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.066-361.0 | Cover | |
| 2 | 5.042-252.0 | Holder | |
| 3 | 7.311-421.0 | Hexagon nut M 5-04-A2E ISO 10511 | |
| 4 | 7.305-050.0 | Countersunk screw M5x20 -A2-70-s (In6Rd | |
| 5 | 7.305-035.0 | Countersunk screw M 4x10-A2-70-SCHW (IN | |
| 6 | 5.321-023.0 | CONTROL KNOB | |
| 7 | 7.305-025.0 | Countersunk screw M4x18 -4.8-A2E ISO 20 | |
| 8 | 5.132-010.0 | Plug | |
| 10 | 5.321-111.0 | Handhold | |
| 11 | 6.313-003.0 | Locking spring | |
| 12 | 5.841-234.0 | Control panel | |
| 13 | 5.332-028.0 | Helical spring | |
| 15 | 6.362-385.0 | O-Ring seal 26,0 X 2,5-NBR 70 | |
| 16 | 6.362-386.0 | O-Ring seal 5,0 x 1,5-NBR 80 | |
| 17 | 4.580-102.0 | Valve | |
| 18 | 6.388-515.0 | Hose clip | |
| 19 | 6.388-225.0 | Hose DN 7 | |
| 20 | 6.388-194.0 | Hose DN 7 |
