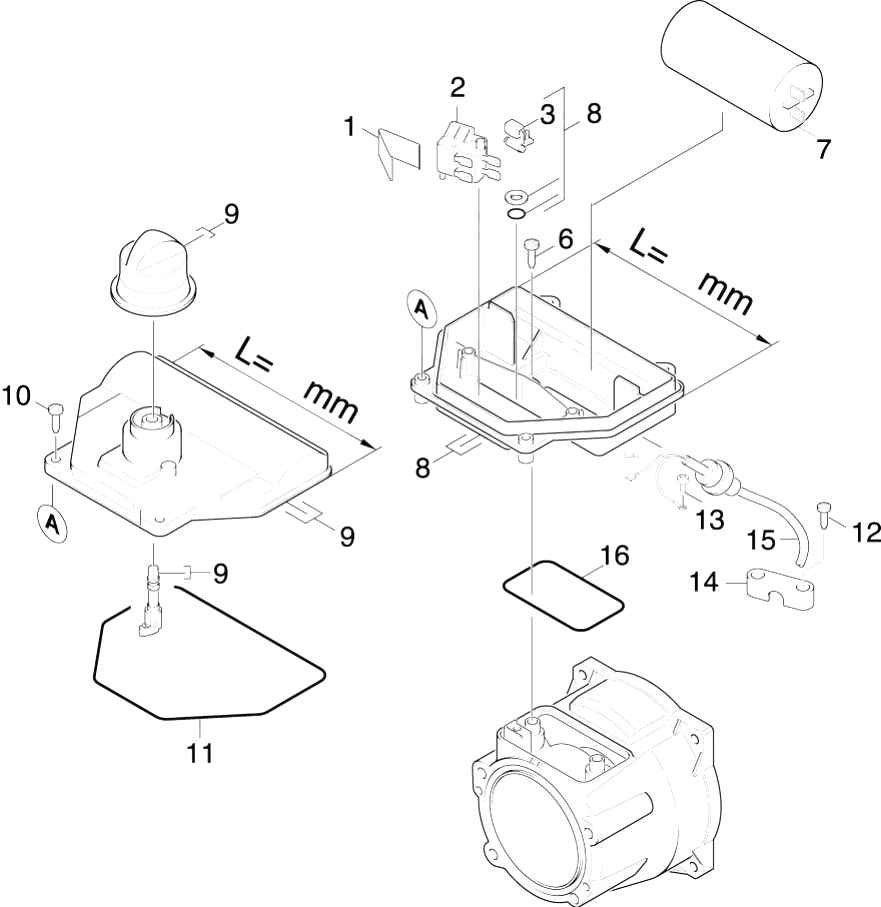

Karcher (Керхер) Электроприборный шкаф (0.126-712.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.337-027.0	Plate spring
2	6.631-946.0	Micro switch
3	4.047-003.0	Rocker switch complete
6	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
7	6.661-129.0	Capacitor 25MF
8	4.800-845.0	Electric box complete only for replaceme
8	4.800-852.0	Electric box complete
9	4.063-785.0	Cover electric box
9	4.063-591.0	Cover electric box
10	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
11	6.273-070.0	Seal string cellular rubber 4
12	6.303-199.0	Oval head screw 4,2x 16
13	5.031-312.0	Covering cap
13	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
14	5.034-505.0	Retaining bracket cable
15	6.362-887.0	O-Ring seal 65,0 X 2,5
15	6.648-361.0	Cable with plug *RA H05RN-F 3G1/5,6M
15	6.647-404.0	Cable with plug *GB
15	6.647-406.0	Cable with plug H05RN-F 3G1-5m *DK
15	6.648-968.0	Cable with plug H05 VV-F 3G1/5,6m *EU
15	6.648-971.0	Кабель с штепсель *Aus
15	6.649-903.0	Cable with plug *CH
15	6.647-739.0	Cable with plug
16	6.362-887.0	O-Ring seal 65,0 X 2,5
