Karcher (Керхер) Управляющий корпус (0.107-742.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

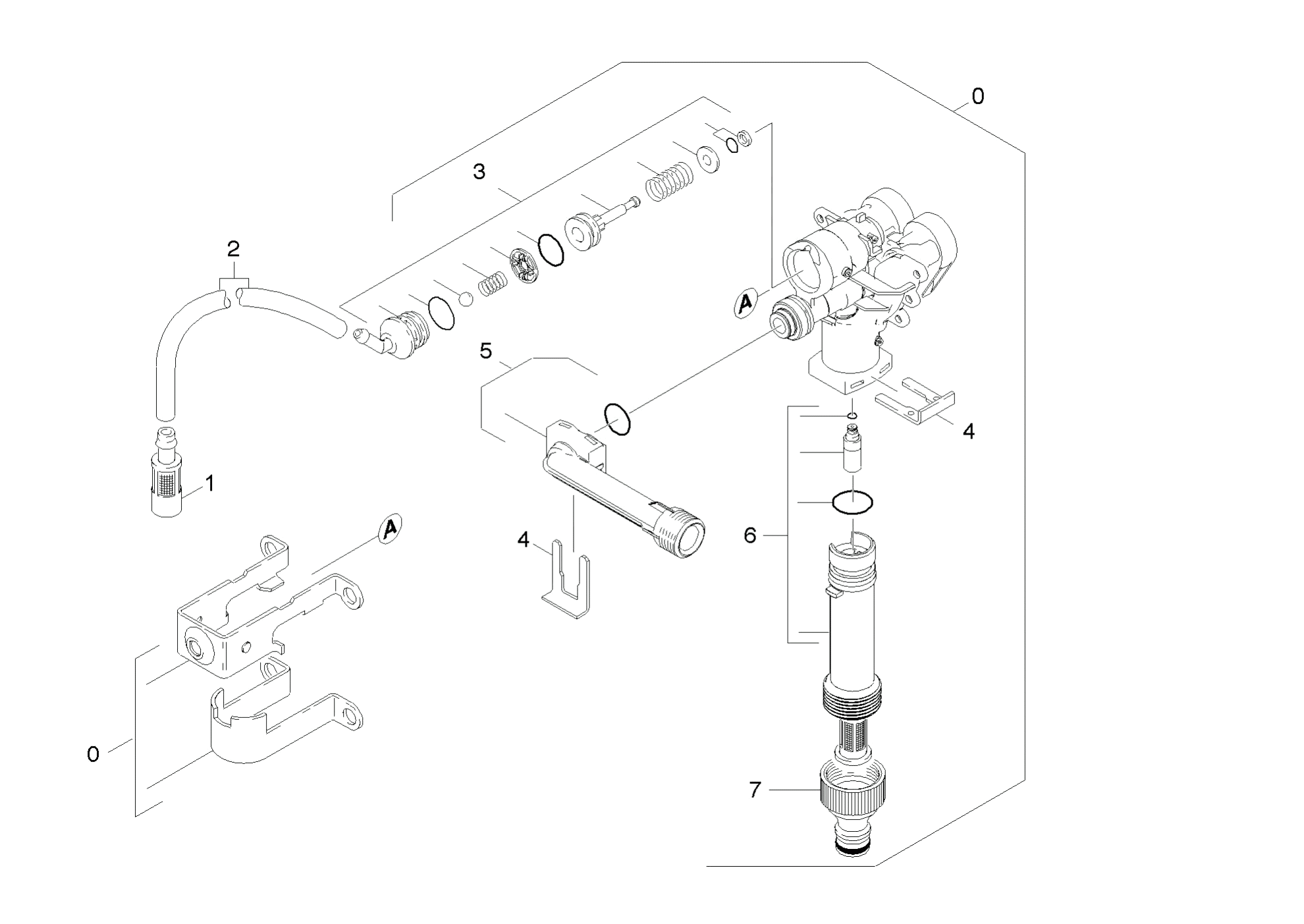

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.550-744.0	Cylinder head replacement upright K2.XX
1	5.731-652.0	Filter with weight
1	5.037-164.0	Clamp
2	6.388-216.0	Hose DN 5
2	5.332-464.0	Pressure spring
3	2.884-133.0	Spare part set control piston chemistry
3	6.363-198.0	O-Ring seal 6x2 90 shore PUR
4	9.081-421.0	Кольцо круглого сечения 18 х 3
4	5.048-406.0	Clamp
4	6.390-871.0	Шланг высокого давления M 6 м/1 МПа
5	9.039-308.0	Крышка K130
5	4.063-783.0	Outlet high-pressure with O-Ring seal
6	9.011-911.0	Filter cleaning agents W107/207
6	4.063-834.0	Suction cover and safety valve (rot) Er
6	6.362-498.0	O-Ring seal 6,75x1,78 NBR 70
7	9.001-741.0	FRONT HOUSING MODULAR COMPACT
7	6.465-031.0	Connection 3/4
8	9.001-219.0	Housing and control piston
9	9.036-801.0	Connection suction side black
10	9.081-422.0	Фасонное уплотнение
11	9.001-215.0	Spare part set cylinder head
13	6.362-875.0	Grooved ring
14	9.001-110.0	Moulded part complete
15	9.001-149.0	Spare parts set valve
16	9.001-106.0	Joining piece
17	9.001-107.0	Cage complete
18	9.047-026.0	Пружина
19	9.001-108.0	Injector complete
20	9.001-211.0	Spare part set suction connection
21	6.465-031.0	Connection 3/4
