Karcher (Керхер) Pучной пистолет-распылитель (0.148-467.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

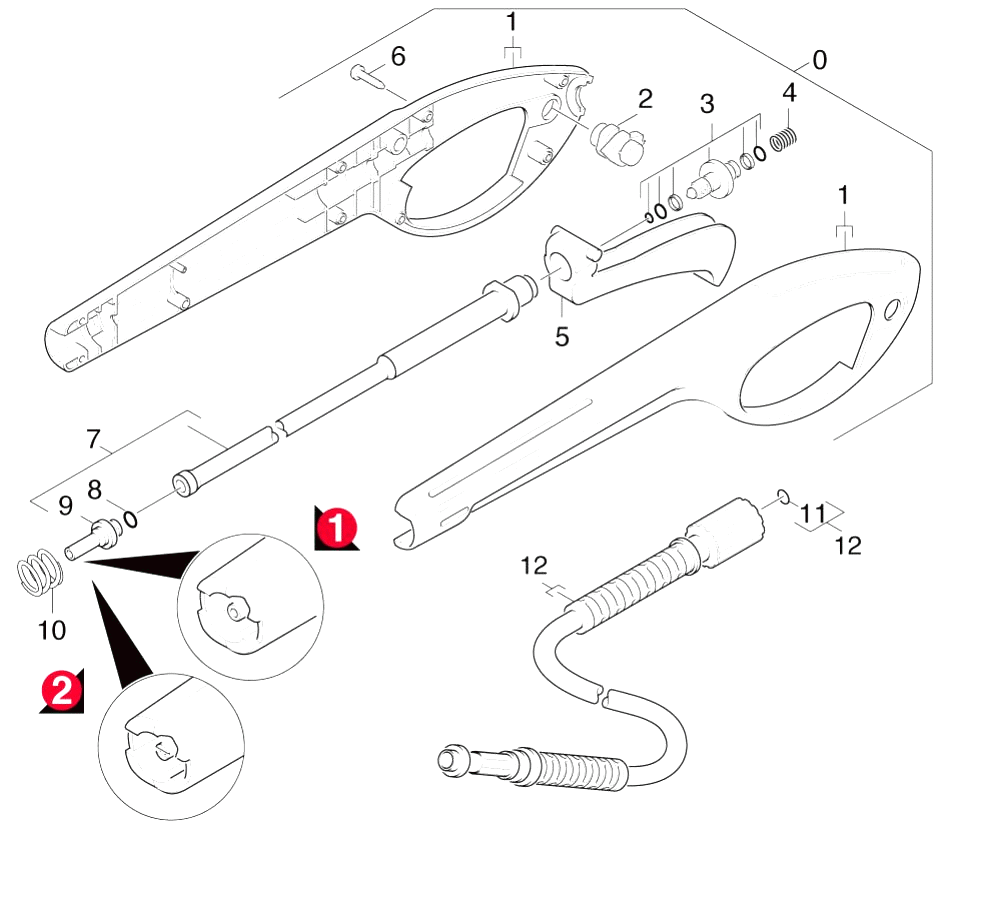

REF.	АРТИКУЛ	ОПИСАНИЕ
0	9.001-125.0	Pistol only for replacement -KAERCHER 9
0	9.001-095.0	Pistol only for replacement 99
0	4.550-595.0	Cylinder head complete replacement
1	9.036-408.0	365 TRIGGER GUN HANDLES (CASING)
1	9.001-741.0	FRONT HOUSING MODULAR COMPACT
1	5.037-164.0	Clamp
1	6.388-216.0	Hose DN 5
2	6.964-044.0	Moulded part
2	9.001-110.0	Moulded part complete
2	5.332-464.0	Pressure spring
2	5.731-652.0	Filter with weight
3	9.011-402.0	Bush completely
3	6.363-198.0	O-Ring seal 6x2 90 shore PUR
3	2.884-133.0	Spare part set control piston chemistry
4	6.964-002.0	Spring
4	6.390-871.0	Шланг высокого давления M 6 м/1 МПа
4	4.550-507.0	Cylinder head complete welding assembly
5	5.481-159.0	Lever
5	9.001-149.0	Spare parts set valve
5	5.048-407.0	Sheet metal component delivery side
6	6.303-122.0	M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
6	6.362-498.0	O-Ring seal 6,75x1,78 NBR 70
6	5.048-408.0	Sheet metal component suction side
7	9.011-397.0	Tube pistol 99
7	5.048-406.0	Clamp
8	6.362-898.0	O-Ring seal 7X2 NBR90
8	4.063-691.0	Suction cover and safety valve
9	9.036-607.0	Joining piece
9	5.031-068.0	Joining piece
9	6.465-031.0	Connection 3/4
10	5.332-349.0	Pressure spring
12	9.082-057.0	Шланг высокого давления 7,5/130
12	9.036-444.0	Sleeve
14	7.311-569.0	Square nut M4 -04-A2E DIN 562
17	9.036-322.0	Supporting disk
18	6.362-875.0	Grooved ring
20	9.001-105.0	Spare parts set cylinder head
24	9.081-422.0	Фасонное уплотнение
25	9.001-128.0	Spare part set control head
26	9.039-117.0	Cover
26	2.889-075.0	Spare part set pressure cap
27	7.306-042.0	Cylinder head screw M8x25 -8.8-A2E ISO4
28	9.001-186.0	Spare part set
32	9.001-108.0	Injector complete
34	9.047-026.0	Пружина
35	9.001-107.0	Cage complete
38	9.001-106.0	Joining piece
42	6.465-031.0	Connection 3/4
