Karcher (Керхер) Управляющий корпус (0.108-008.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

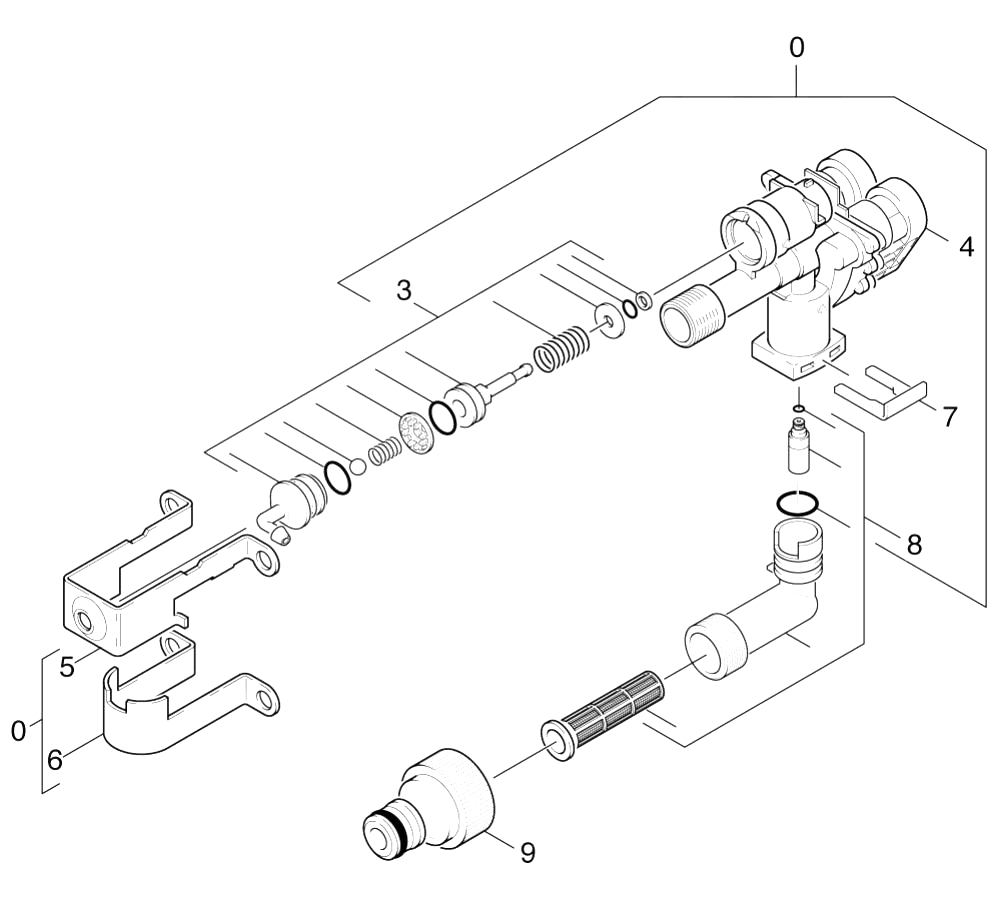

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.550-566.0	Cylinder head complete only for replacem
0	2.642-172.0	G 160 Q pistol Quick Connect
1	5.037-164.0	Clamp
1	5.332-464.0	Pressure spring
1	5.731-609.0	Фильтр с утяжелителем
2	5.332-464.0	Pressure spring
2	2.641-721.0	H 9 Q high pressure hose Quick Connect
2	6.388-216.0	Hose DN 5
3	2.884-174.0	Spare part set control piston chemistry
3	6.363-198.0	O-Ring seal 6x2 90 shore PUR
3	2.885-325.0	Spare parts set nipple chemistry (-90°)
4	4.550-507.0	Cylinder head complete welding assembly
4	6.390-871.0	Шланг высокого давления M 6 м/1 МПа
4	2.885-285.0	Spare parts set control piston with nipp
5	5.048-407.0	Sheet metal component delivery side
5	4.551-056.0	Cylinder head for replacement (684)
6	5.048-408.0	Sheet metal component suction side
6	6.362-498.0	O-Ring seal 6,75x1,78 NBR 70
6	5.048-406.0	Clamp
7	5.048-406.0	Clamp
7	4.063-885.0	Suction cover and safety valve K2 MR Top
8	4.063-000.0	Suction cover only for replacement + SV
8	6.288-072.0	Silicon grease
9	6.465-031.0	Connection 3/4
9	6.506-016.0	O-Ring seal 15,54x2,62-NBR 70
10	5.731-598.0	Fine filter
11	6.465-031.0	Connection 3/4
