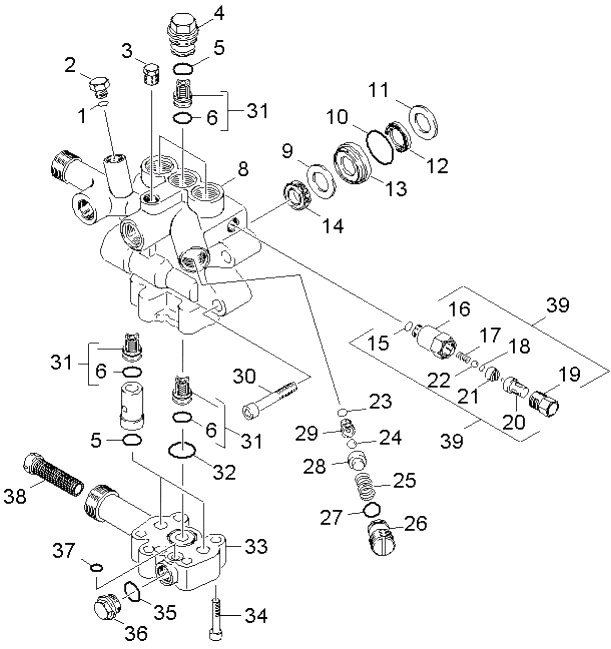

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.491-347.0	Cap of a tank complete
1	4.060-395.0	Housing complete only for replacement
2	5.411-070.0	Screw plug
3	7.382-274.0	"""Screw plug R1/8""""-CuZn DIN 909 """
3	5.394-402.0	Protection part
4	6.491-348.0	Seal
4	5.031-709.0	Moulded part
5	5.311-192.0	Union nut
6	6.363-003.0	O-Ring seal 13,0 X 2,0-NBR 90
6	4.764-139.0	Nozzle holder only for replacement 045
6	9.194-518.0	Screw M4X6
7	7.401-917.0	Sphere 10,0 G100-1.4301 DIN 5401
8	6.362-831.0	O-Ring d. 22x2 NBR 90
8	9.194-522.0	Wing nut
9	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
9	5.031-370.0	Moulded part
9	5.115-492.0	Washer
10	9.197-002.0	5/16-18 NE NYLON INSERT L/N ZC 5UM
10	5.031-597.0	Rectifier
10	6.491-345.0	Air filter insert
11	5.115-493.0	Washer
13	6.618-090.0	Ignition plug
13	5.112-402.0	Bush
14	6.365-408.0	Grooved ring 16x24x5.3
15	6.362-101.0	O-Ring seal 8 X 2
16	5.402-637.0	Screw union
17	5.332-233.0	Helical spring
18	6.363-599.0	O-Ring seal 4,0 x 2,0
18	9.194-496.0	Joint ring
19	5.411-150.0	Screw plug
20	6.413-067.0	Thermovalve
20	9.194-526.0	Washer
22	7.401-009.0	Sphere 4,762 KL3-1.4301 DIN 5401
22	6.491-176.0	Parallel key 6,3X36
24	7.401-908.0	Sphere 7 G300 -1.4301 DIN 5401
24	6.288-050.0	Engine oil 1L
26	5.583-089.0	Valve screw
27	9.194-505.0	Exhaust
28	5.582-075.0	Valve disc
30	7.306-125.0	Cylinder head screw M10x70-8.8-A3E ISO4
32	6.362-547.0	O-Ring seal 20,0x1,5-NBR 70
34	7.306-044.0	Cylinder head screw M8x35 -8.8-A2E ISO4
36	7.382-235.0	Screw plug M18x1,5-A-CuZn DIN 7604
38	6.414-282.0	Strainer
