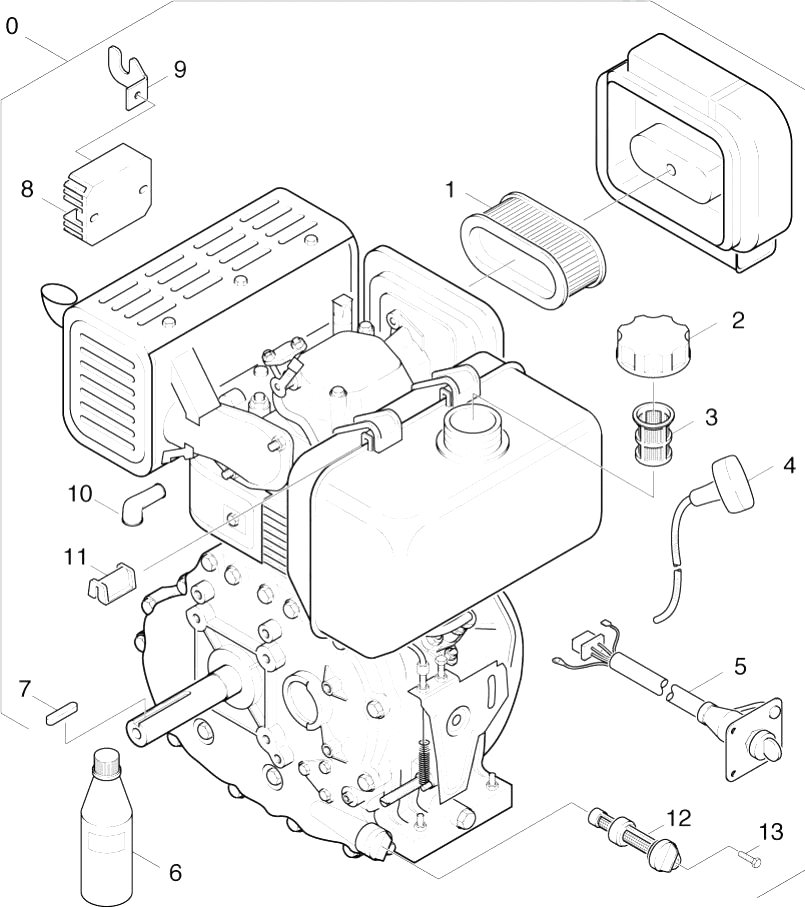

Karcher (Керхер) Мотор (0.112-197.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
6.491-271.0 |
Дизельный двигатель 10 л.с. |
|
| 1 |
6.491-958.0 |
Air filter insert |
|
| 1 |
5.321-494.0 |
Handhold few |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 2 |
6.491-261.0 |
Cap of a tank complete |
|
| 2 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 3 |
7.306-087.0 |
Screw M6x10 -8.8-R3R (In6Rd) |
|
| 3 |
6.618-019.0 |
Protecting cap |
|
| 3 |
5.322-012.0 |
Hand wheel |
|
| 4 |
6.491-265.0 |
Pull cord complete |
|
| 4 |
7.304-404.0 |
Hexagonal head screw M8x40-8.8-A2E ISO |
|
| 4 |
6.362-642.0 |
O-Ring d. 7,65x1,78 -NBR 80 |
|
| 5 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 5 |
6.491-998.0 |
Parallel key 6.3x50 |
|
| 5 |
5.481-178.0 |
Lever |
|
| 6 |
6.288-050.0 |
Engine oil 1L |
|
| 6 |
5.332-264.0 |
Helical spring |
|
| 6 |
5.404-079.0 |
Hollow screw |
|
| 7 |
6.431-114.0 |
Зажим ниппеля |
|
| 7 |
5.553-348.0 |
Piston |
|
| 8 |
6.491-275.0 |
Control device |
|
| 8 |
4.481-058.0 |
Lever |
|
| 8 |
5.581-243.0 |
Valve seat |
|
| 9 |
7.312-264.0 |
Washer 5-100HV-A3E ISO 7094 |
|
| 9 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 10 |
5.394-923.0 |
Protecting cap |
|
| 10 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 10 |
5.332-413.0 |
Helical spring |
|
| 11 |
7.311-512.0 |
Hexagon nut M 6-8-A2E ISO 7040 |
|
| 11 |
6.362-477.0 |
O-Ring seal complete 1ST.-R. |
|
| 12 |
6.491-471.0 |
Oil filter |
|
| 12 |
6.321-069.0 |
Handhold M6x20 |
|
| 12 |
6.491-993.0 |
Starter rope complete |
|
| 12 |
5.427-214.0 |
Manifold |
|
| 13 |
7.306-118.0 |
Screw M 6x35 -8.8-R3R (In6Rd) |
|
| 13 |
7.306-057.0 |
Screw M4x10 -8.8-R2R (In6Rd) |
|
| 13 |
6.362-964.0 |
O-Ring seal complete |
|
| 14 |
6.310-112.0 |
"""Union nut 1"""" """ |
|
| 14 |
6.491-261.0 |
Cap of a tank complete |
|
| 14 |
5.316-400.0 |
Bolt |
|
| 15 |
6.390-124.0 |
Hose stem D 19 |
|
| 15 |
5.110-596.0 |
Sleeve |
|
| 16 |
6.363-006.0 |
O-Ring seal 20X2,8 |
|
| 16 |
6.491-471.0 |
Oil filter |
|
| 16 |
4.037-013.0 |
Hook |
|
| 17 |
6.414-511.0 |
Water filter complete |
|
| 17 |
6.362-503.0 |
O-Ring seal 8,0 X 1,0 |
|
| 19 |
6.431-114.0 |
Зажим ниппеля |
|
| 20 |
5.402-673.0 |
Screw union |
|
| 20 |
6.391-420.0 |
High pressure hose neutrally DN 6 |
|
| 21 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
| 22 |
6.362-160.0 |
O-Ring seal 17,3 X 2,4 |
|
| 22 |
7.382-235.0 |
Screw plug M18x1,5-A-CuZn DIN 7604 |
|
| 23 |
6.363-045.0 |
O-Ring seal 8X1,25 NBR |
|
| 24 |
6.363-166.0 |
O-Ring seal |
|
| 24 |
6.362-547.0 |
O-Ring seal 20,0x1,5-NBR 70 |
|
| 26 |
5.066-957.0 |
Крышка |
|
| 26 |
5.583-155.0 |
Valve screw |
|
