Karcher (Керхер) FR Basic (0.114-883.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

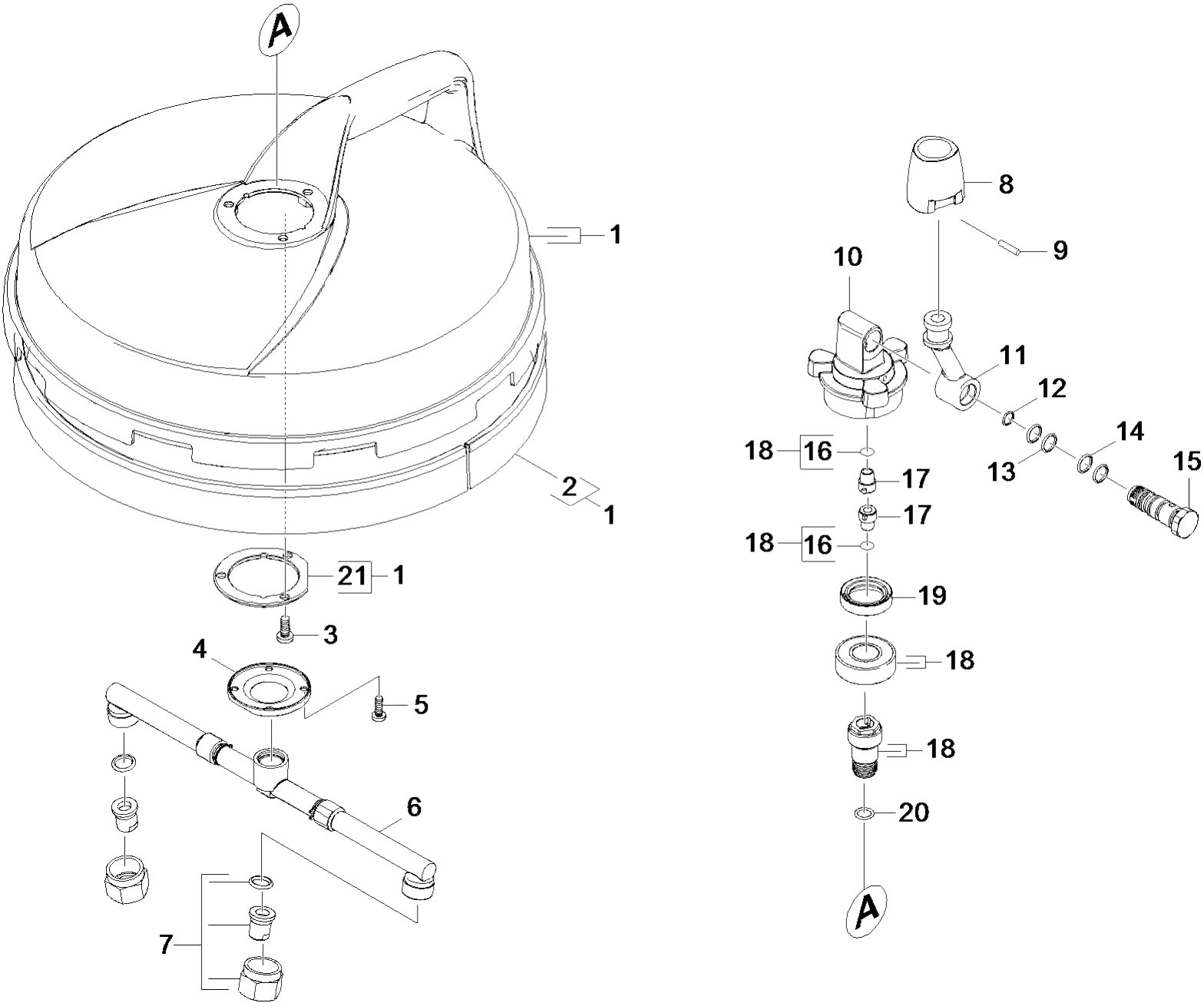

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.880-001.0	Набор запасных частей FR Basic
2	6.371-051.0	Brush-corona FR 28
3	7.306-181.0	Screw M 5x 12-A2-70 (In6Rd)
4	5.122-478.0	Flange
5	7.306-204.0	Screw M 3X 10-A2-70 (IN6RD)
6	4.764-154.0	Nozzle holder
7	6.369-831.0	Brush-corona FR 30
7	2.639-187.0	Nozzle pack 025
7	2.640-401.0	Nozzle pack 020-500-650 l/h
7	2.640-482.0	Nozzle pack 018
8	7.303-117.0	Screw 4x20 -A2-70 (In6Rd)
8	5.394-530.0	Protection part complete
9	7.367-000.0	Radial shaft seal ring A20x30x7-NBR DIN
9	6.343-150.0	Pin 03
10	7.311-028.0	Hexagon nut M 4-04-A2E ISO 4035
10	5.481-401.0	Base body
11	5.122-483.0	Flange
11	5.481-402.0	Hinge part
12	7.312-052.0	Washer 5 -A2 ISO 7089
12	6.363-111.0	O-Ring seal 7,0 X 1 -NBR 70
13	7.306-181.0	Screw M 5x 12-A2-70 (In6Rd)
13	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
14	4.764-154.0	Nozzle holder
14	6.362-958.0	O-Ring seal 9 x 2-NBR 90
15	7.312-067.0	Washer 4-A2 ISO 7089
15	5.100-569.0	Axle
16	6.343-150.0	Pin 03
16	6.362-658.0	O-Ring seal 7 X 1,5-NBR 90
17	5.394-530.0	Protection part complete
17	5.111-322.0	Sleeve
18	4.250-082.0	Bearing complete only for replacement
19	2.640-482.0	Nozzle pack 018
19	2.640-442.0	Nozzle pack 032
19	2.640-401.0	Nozzle pack 020-500-650 l/h
19	2.639-188.0	Nozzle pack 04-1100-1300 l/h
19	2.639-187.0	Nozzle pack 025
19	7.367-000.0	Radial shaft seal ring A20x30x7-NBR DIN
20	5.064-128.0	Cover
20	6.362-388.0	O-Ring seal 8,0x1,5 -EPDM 70
21	7.306-209.0	Screw M 4X 20-A2-70 (In6Rd)
21	5.122-483.0	Flange
22	6.362-388.0	O-Ring seal 8,0x1,5 -EPDM 70
23	4.250-078.0	Bearing complete
24	6.362-658.0	O-Ring seal 7 X 1,5-NBR 90
25	5.111-322.0	Sleeve
26	5.108-267.0	Turned part
27	5.321-716.0	Handhold
27	5.321-752.0	Handhold
29	7.383-004.0	Union nut B1 LL15 -Ms DIN3870
