Karcher (Керхер) Детали (0.102-698.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

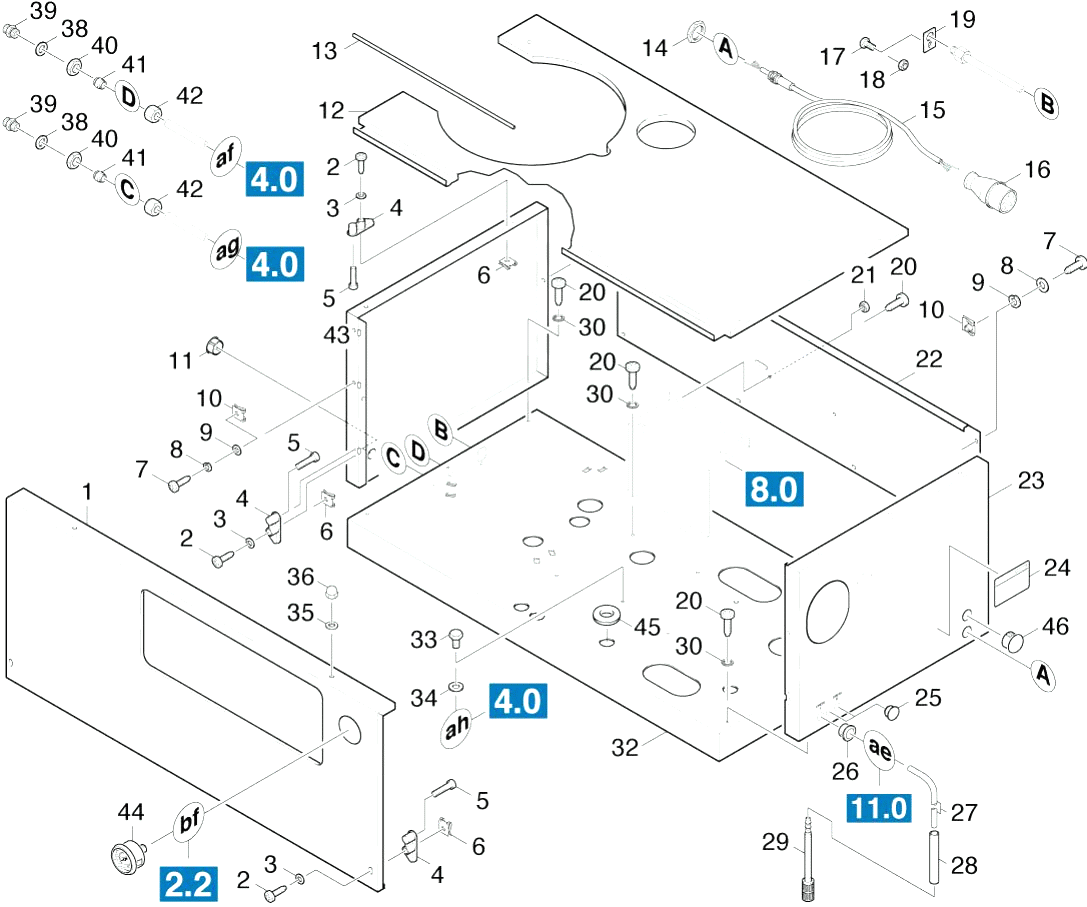

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.065-653.0	Panel
2	7.303-080.0	Sheet metal screw ST4,8X32-ST-A2R (KOMB
3	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
4	5.057-026.0	Support
5	6.303-122.0	M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
6	6.310-034.0	Speed nut
7	7.303-076.0	Sheet metal screw ST4,8X13 -St-R2R (In6
8	7.313-016.0	Spring washer B 5-1.4310 DIN 127
9	7.312-052.0	Washer 5 -A2 ISO 7089
10	6.310-121.0	Speed nut
11	6.368-079.0	Cap
12	5.065-282.0	Panel
13	5.394-164.0	Protection part
14	6.641-484.0	Locknut PG16
15	4.822-147.0	Cable
16	6.646-044.0	Plug CEE-32 A
16	6.646-356.0	Plug CEE-32A
16	6.646-030.0	Plug CEE 16A
17	7.304-382.0	Hexagonal head screw M 6x12-8.8-A2E ISO
18	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
20	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
21	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
22	5.065-651.0	Rear panel
23	5.065-654.0	Side panel
24	5.382-394.0	Rating plate 100X60,K?R.,MADE IN GERMANY
25	6.368-099.0	Cap
26	6.641-494.0	Wire protecting sleeve
27	6.388-194.0	Hose DN 7
28	5.025-747.0	Tube
29	6.414-136.0	Filter
30	7.312-172.0	Toothed lock washer A5,3-FSt-A3E DIN 67
32	4.050-532.0	Base frame
33	6.303-035.0	Screw M8x12-ST-A2E DIN 7500-1
34	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
35	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
36	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
38	5.115-239.0	Washer
39	5.403-094.0	Double connection
40	7.311-104.0	Hexagon nut M12x1,5 -04-A2E ISO 8675
41	6.386-160.0	Cutting ring D 6-L/S
42	6.386-346.0	Union nut A 6-L
43	5.065-652.0	Side panel
44	6.421-170.0	Pressure gauge 0-315 BAR
45	6.641-404.0	Wire protecting sleeve
46	6.368-028.0	Protecting cap 26,5
