Мойка Karcher (Керхер) HDS 1291 ST *EU (1.699-911.0)

Karcher (Керхер) Детали (0.102-698.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

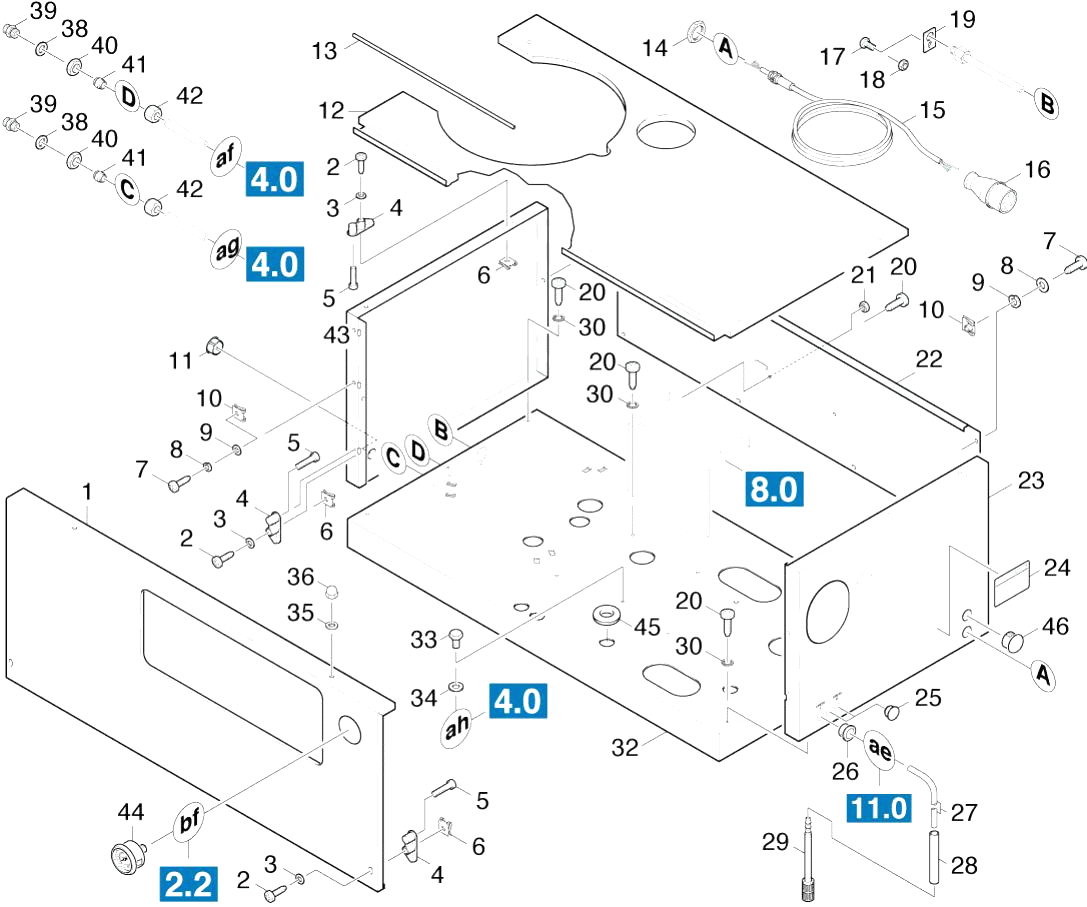

REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 5.065-653.0 Panel
2 7.303-080.0 Sheet metal screw ST4,8X32-ST-A2R (KOMB
3 7.312-278.0 Washer 5-200HV-A2E ISO7093-1
4 7.312-172.0 Toothed lock washer A5,3-FSt-A3E DIN 67
4 5.057-026.0 Support
5 7.303-038.0 Screw M5x12 -St-P2R (In6Rd)
5 6.303-122.0 M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
6 6.641-484.0 Locknut PG16
6 6.310-034.0 Speed nut
7 7.303-076.0 Sheet metal screw ST4,8X13 -St-R2R (In6
8 6.368-099.0 Cap
8 7.313-016.0 Spring washer B 5-1.4310 DIN 127
9 4.820-193.0 Cable
9 7.312-052.0 Washer 5 -A2 ISO 7089
10 6.646-030.0 Plug CEE 16A
10 6.310-121.0 Speed nut
11 6.641-494.0 Wire protecting sleeve
11 6.368-079.0 Cap
12 6.388-194.0 Hose DN 7
12 5.065-282.0 Panel
13 5.025-747.0 Tube
13 5.394-164.0 Protection part
14 6.414-136.0 Filter
14 6.641-484.0 Locknut PG16
15 6.303-122.0 M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
15 4.822-147.0 Cable
16 6.310-034.0 Speed nut
16 6.646-030.0 Plug CEE 16A
16 6.646-044.0 Plug CEE-32 A
16 6.646-356.0 Plug CEE-32A
17 5.057-026.0 Support
17 7.304-382.0 Hexagonal head screw M 6x12-8.8-A2E ISO
18 7.312-002.0 Washer 5-200HV-A3E ISO 7090
18 7.311-425.0 Hexagon nut M6 -04-A2E ISO 10511
19 7.303-080.0 Sheet metal screw ST4,8X32-ST-A2R (KOMB
20 5.065-281.0 Panel
20 7.303-038.0 Screw M5x12 -St-P2R (In6Rd)
21 4.050-191.0 Base frame
21 7.311-421.0 Hexagon nut M 5-04-A2E ISO 10511
22 6.641-404.0 Wire protecting sleeve
22 5.065-651.0 Rear panel
23 7.312-003.0 Washer 6 -200HV-A3E ISO 7090
23 5.065-654.0 Side panel
24 7.311-380.0 Cap nut M6 -6-A2E DIN 1587
24 5.382-394.0 Rating plate 100X60,K?R.,MADE IN GERMANY
25 5.065-227.0 Side panel
25 6.368-099.0 Cap
26 6.343-006.0 Fuse
26 6.641-494.0 Wire protecting sleeve
27 6.373-346.0 Bolt
27 6.388-194.0 Hose DN 7
28 6.368-079.0 Cap
28 5.025-747.0 Tube
29 7.303-076.0 Sheet metal screw ST4,8X13 -St-R2R (In6
29 6.414-136.0 Filter
30 7.312-052.0 Washer 5 -A2 ISO 7089
30 7.312-172.0 Toothed lock washer A5,3-FSt-A3E DIN 67
31 7.313-016.0 Spring washer B 5-1.4310 DIN 127
32 4.050-532.0 Base frame
33 6.303-035.0 Screw M8x12-ST-A2E DIN 7500-1
34 7.312-159.0 Toothed lock washer A8,4-FST-PH DIN 679
35 7.312-003.0 Washer 6 -200HV-A3E ISO 7090
36 7.311-380.0 Cap nut M6 -6-A2E DIN 1587
38 5.115-239.0 Washer
39 5.403-094.0 Double connection
