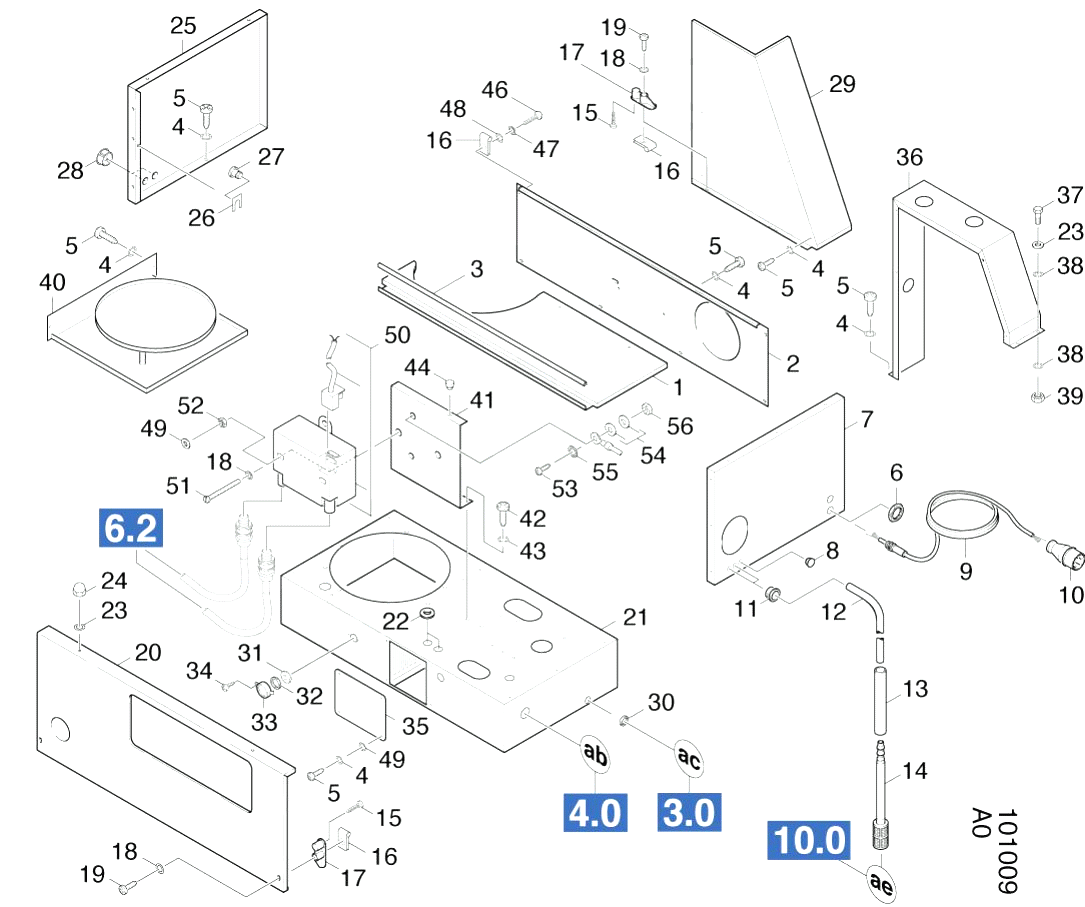

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.065-298.0 | Panel | |
| 2 | 5.065-236.0 | Rear panel | |
| 3 | 6.368-089.0 | Edge protection | |
| 4 | 7.312-172.0 | Toothed lock washer A5,3-FSt-A3E DIN 67 | |
| 5 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 6 | 6.641-484.0 | Locknut PG16 | |
| 7 | 5.065-285.0 | Side panel | |
| 8 | 6.368-099.0 | Cap | |
| 9 | 4.820-193.0 | Cable | |
| 10 | 6.646-030.0 | Plug CEE 16A | |
| 11 | 6.641-494.0 | Wire protecting sleeve | |
| 12 | 6.388-194.0 | Hose DN 7 | |
| 32 | 5.364-100.0 | Flat gasket | |
| 33 | 5.000-590.0 | Plate | |
| 34 | 7.303-136.0 | Sheet metal screw ST3,5X 6,5-ST-R2R (IN | |
| 35 | 5.063-833.0 | Cover | |
| 35 | 5.063-435.0 | Cover | |
| 36 | 5.052-029.0 | Stand | |
| 37 | 7.306-092.0 | Screw M6x20-ST- 8.8-R3R (IN6RD) | |
| 38 | 7.312-167.0 | Toothed lock washer A6,4-FSt-A3E DIN 67 | |
| 39 | 7.311-425.0 | Hexagon nut M6 -04-A2E ISO 10511 | |
| 40 | 4.039-019.0 | Tub | |
| 41 | 5.052-030.0 | Stand | |
| 42 | 6.303-035.0 | Screw M8x12-ST-A2E DIN 7500-1 |
