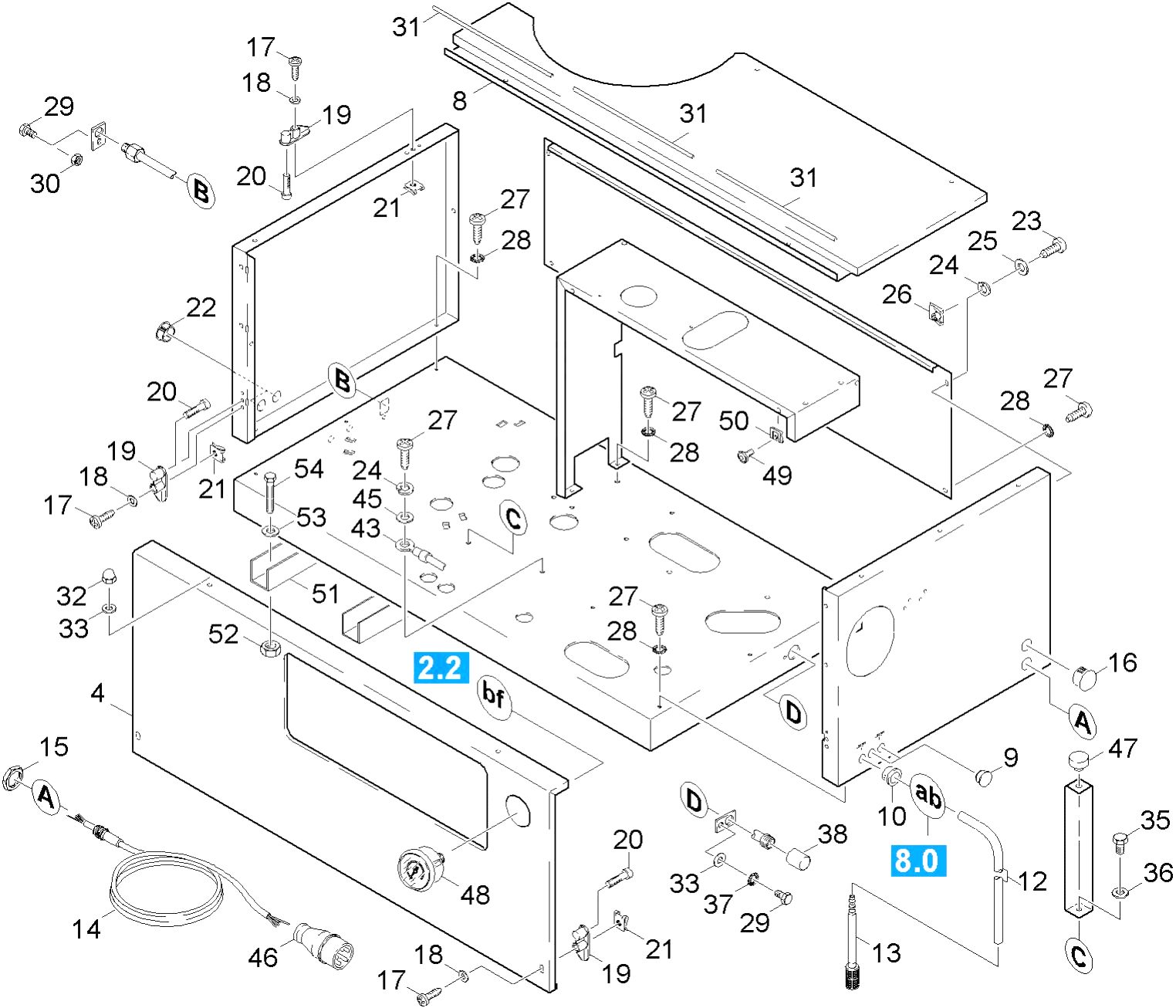

Karcher (Керхер) Детали (0.115-441.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 4 |
5.065-740.0 |
Panel basalt grey |
|
| 8 |
5.065-739.0 |
Panel basalt grey |
|
| 9 |
6.368-099.0 |
Cap |
|
| 10 |
6.641-494.0 |
Wire protecting sleeve |
|
| 11 |
6.388-194.0 |
Hose DN 7 |
|
| 12 |
5.025-747.0 |
Tube |
|
| 13 |
5.394-164.0 |
Protection part |
|
| 13 |
6.414-136.0 |
Filter |
|
| 14 |
6.641-484.0 |
Locknut PG16 |
|
| 14 |
4.822-147.0 |
Cable |
|
| 15 |
4.822-147.0 |
Cable |
|
| 15 |
6.648-409.0 |
Locknut grey M25 |
|
| 16 |
6.646-356.0 |
Plug CEE-32A |
|
| 16 |
6.368-028.0 |
Protecting cap 26,5 |
|
| 17 |
7.304-382.0 |
Hexagonal head screw M 6x12-8.8-A2E ISO |
|
| 17 |
7.303-080.0 |
Sheet metal screw ST4,8X32-ST-A2R (KOMB |
|
| 18 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 18 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 19 |
5.057-026.0 |
Support |
|
| 20 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 20 |
7.303-095.0 |
Screw 4x 12-ST-10.9-R2R (IN6RD) |
|
| 21 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 21 |
6.310-034.0 |
Speed nut |
|
| 22 |
5.065-651.0 |
Rear panel |
|
| 22 |
6.368-079.0 |
Cap |
|
| 23 |
5.065-654.0 |
Side panel |
|
| 23 |
7.303-076.0 |
Sheet metal screw ST4,8X13 -St-R2R (In6 |
|
| 24 |
5.382-394.0 |
Rating plate 100X60,K?R.,MADE IN GERMANY |
|
| 24 |
7.313-002.0 |
Spring washer B 5-FSt-A3E DIN 127 |
|
| 25 |
6.368-099.0 |
Cap |
|
| 25 |
7.312-052.0 |
Washer 5 -A2 ISO 7089 |
|
| 26 |
6.641-494.0 |
Wire protecting sleeve |
|
| 26 |
6.310-121.0 |
Speed nut |
|
| 27 |
6.388-194.0 |
Hose DN 7 |
|
| 27 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 28 |
5.025-747.0 |
Tube |
|
| 28 |
7.312-172.0 |
Toothed lock washer A5,3-FSt-A3E DIN 67 |
|
| 29 |
6.414-136.0 |
Filter |
|
| 29 |
7.304-382.0 |
Hexagonal head screw M 6x12-8.8-A2E ISO |
|
| 30 |
7.312-172.0 |
Toothed lock washer A5,3-FSt-A3E DIN 67 |
|
| 30 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 31 |
5.394-164.0 |
Protection part |
|
| 32 |
5.364-100.0 |
Flat gasket |
|
| 32 |
4.050-532.0 |
Base frame |
|
| 32 |
7.311-380.0 |
Cap nut M6 -6-A2E DIN 1587 |
|
| 33 |
5.000-590.0 |
Plate |
|
| 33 |
6.303-035.0 |
Screw M8x12-ST-A2E DIN 7500-1 |
|
| 33 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 34 |
7.303-136.0 |
Sheet metal screw ST3,5X 6,5-ST-R2R (IN |
|
| 34 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 35 |
5.063-833.0 |
Cover |
|
| 35 |
5.063-435.0 |
Cover |
|
| 35 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 35 |
6.303-035.0 |
Screw M8x12-ST-A2E DIN 7500-1 |
|
| 36 |
5.052-029.0 |
Stand |
|
| 36 |
7.311-380.0 |
Cap nut M6 -6-A2E DIN 1587 |
|
| 36 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 37 |
7.306-092.0 |
Screw M6x20-ST- 8.8-R3R (IN6RD) |
|
| 37 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 38 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 38 |
5.115-239.0 |
Washer |
|
| 38 |
6.368-071.0 |
Protecting cap 3/4 Z |
|
| 39 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 39 |
5.403-094.0 |
Double connection |
|
| 40 |
4.039-019.0 |
Tub |
|
| 40 |
7.311-104.0 |
Hexagon nut M12x1,5 -04-A2E ISO 8675 |
|
| 41 |
5.052-030.0 |
Stand |
|
| 41 |
6.386-160.0 |
Cutting ring D 6-L/S |
|
| 42 |
6.303-035.0 |
Screw M8x12-ST-A2E DIN 7500-1 |
|
| 42 |
6.386-346.0 |
Union nut A 6-L |
|
| 43 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 43 |
5.065-652.0 |
Side panel |
|
| 43 |
4.822-148.0 |
Cable green/yellow 2,5mm?x600mm |
|
| 44 |
6.421-350.0 |
Pressure gauge yellow 0-3,15MPa (315 Bar |
|
| 45 |
6.641-404.0 |
Wire protecting sleeve |
|
| 45 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 46 |
7.303-076.0 |
Sheet metal screw ST4,8X13 -St-R2R (In6 |
|
| 46 |
6.368-028.0 |
Protecting cap 26,5 |
|
| 46 |
6.646-044.0 |
Plug CEE-32 A |
|
| 47 |
6.339-022.0 |
Rubber buffer |
|
| 48 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 48 |
6.421-350.0 |
Pressure gauge yellow 0-3,15MPa (315 Bar |
|
| 49 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 49 |
6.304-153.0 |
Oval head screw M6x12-A2 aehnl: ISO 738 |
|
| 50 |
6.622-231.0 |
Ignition transformer |
|
| 50 |
6.310-082.0 |
Putting nut M6 |
|
| 51 |
7.306-187.0 |
Screw M5x50 -A2-70 (In6Rd) |
|
| 51 |
5.017-819.0 |
Angle boiler Gas 9/16 |
|
| 52 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 52 |
7.311-068.0 |
Hexagon nut M 8-A2-70 ISO 4032 |
|
| 53 |
7.306-058.0 |
Screw M 4X 12- 8.8-R2R K-IN6RD |
|
| 53 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 54 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 54 |
7.304-538.0 |
Hexagonal head screw M8x16-A4-70 ISO 40 |
|
| 55 |
7.312-230.0 |
Serrated lock washer A4,3-FSt-A3E DIN67 |
|
| 56 |
7.311-001.0 |
Hexagon nut M4 -8-A2E ISO 4032 |
|
