Karcher (Керхер) Детали (0.102-221.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

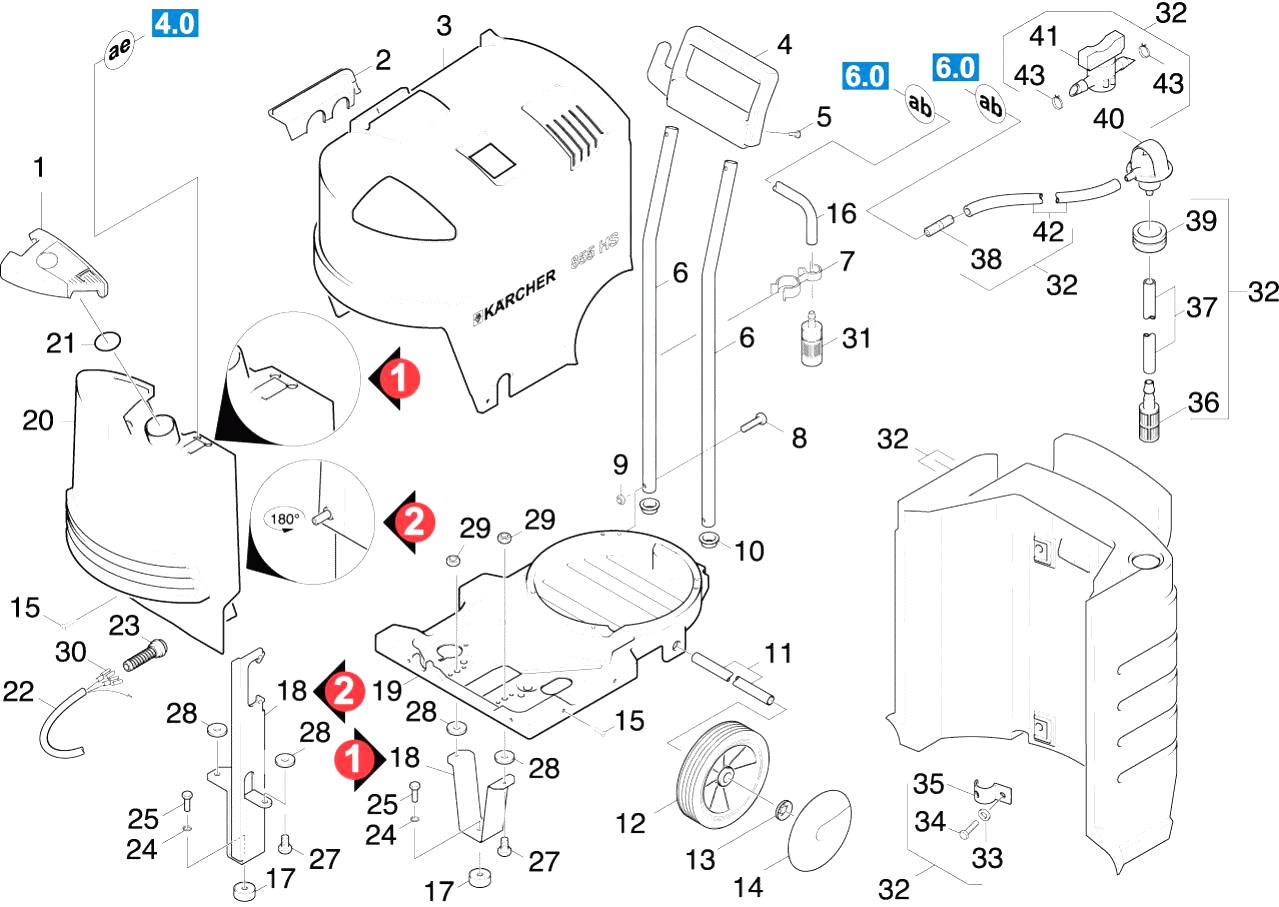

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.030-877.0	Cover tank
2	5.030-857.0	Covering cap
3	9.036-292.0	Device cover
4	5.321-241.0	Handhold
5	7.303-080.0	Sheet metal screw ST4,8X32-ST-A2R (KOMB
6	5.321-410.0	Handhold
7	6.389-508.0	Hose holder
8	7.306-184.0	Screw M5x30 -A2-70 (In6Rd)
9	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
10	6.647-220.0	Wire protecting sleeve
11	5.105-208.0	Axle
12	9.036-344.0	Wheel
13	6.343-168.0	Lock washer
14	9.036-345.0	Wheel cap
15	7.303-082.0	Sheet metal screw ST4,8X13-A2-70-SCHW (I
17	6.339-113.0	Rubber buffer
18	9.039-060.0	Sheet metal component pedestal
18	9.039-162.0	Sheet metal component pedestal
19	9.039-054.0	Frame
20	9.011-635.0	Tank fuel
21	6.362-367.0	O-Ring seal 25,0 X 5,0 -NBR 60
22	9.084-039.0	Кабель с штепсель
22	9.084-036.0	Кабель с штепсель
23	6.903-987.0	Cable bushing Z12,5E
24	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
25	7.304-540.0	Hexagonal head screw M 6x8-A4-70 ISO 40
26	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
27	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
