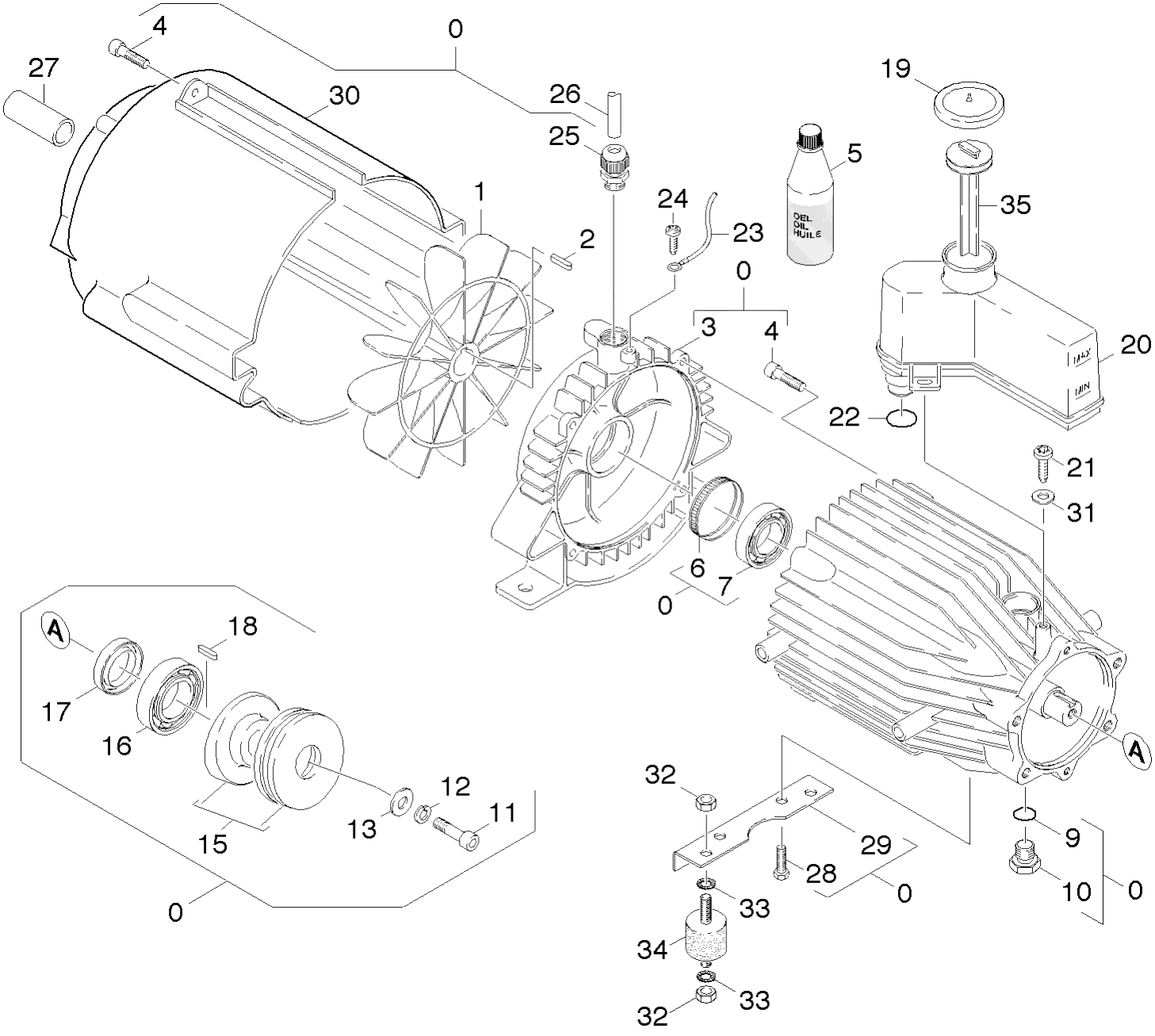

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.623-474.0 | Motor complete only for replacement | |
| 1 | 5.600-046.0 | Blower wheel | |
| 2 | 7.318-079.0 | Parallel key A 5x5x25-C45R DIN 6885 | |
| 3 | 5.063-955.0 | Bearing cover B | |
| 4 | 7.303-048.0 | Screw M6x20 -St-R3R (In6Rd) | |
| 5 | 6.288-016.0 | Gear oil 1L | |
| 6 | 6.343-171.0 | Tolerance ring | |
| 7 | 6.401-285.0 | Ball bearing 6204 2RS | |
| 9 | 6.363-273.0 | O-Ring seal 11,0 x 2,0 | |
| 10 | 5.411-100.0 | Screw plug | |
| 11 | 7.306-092.0 | Screw M6x20-ST- 8.8-R3R (IN6RD) | |
| 12 | 7.313-003.0 | Spring washer B 6-FSt-A3E DIN 127 | |
| 13 | 7.312-260.0 | Washer 6 -100HV-A3E ISO 7094 | |
| 15 | 4.120-197.0 | Wobble plate complete only for replaceme | |
| 16 | 7.401-032.0 | Ball bearing 7305-B-WAELZLAGST DIN 628 | |
| 17 | 7.367-156.0 | Radial shaft seal ring A30x40x7-NBR DIN | |
| 18 | 7.318-003.0 | Parallel key 5X 5X 18-C45R DIN 6885 | |
| 19 | 5.063-195.0 | Cover | |
| 20 | 5.070-521.0 | Tank oil |
