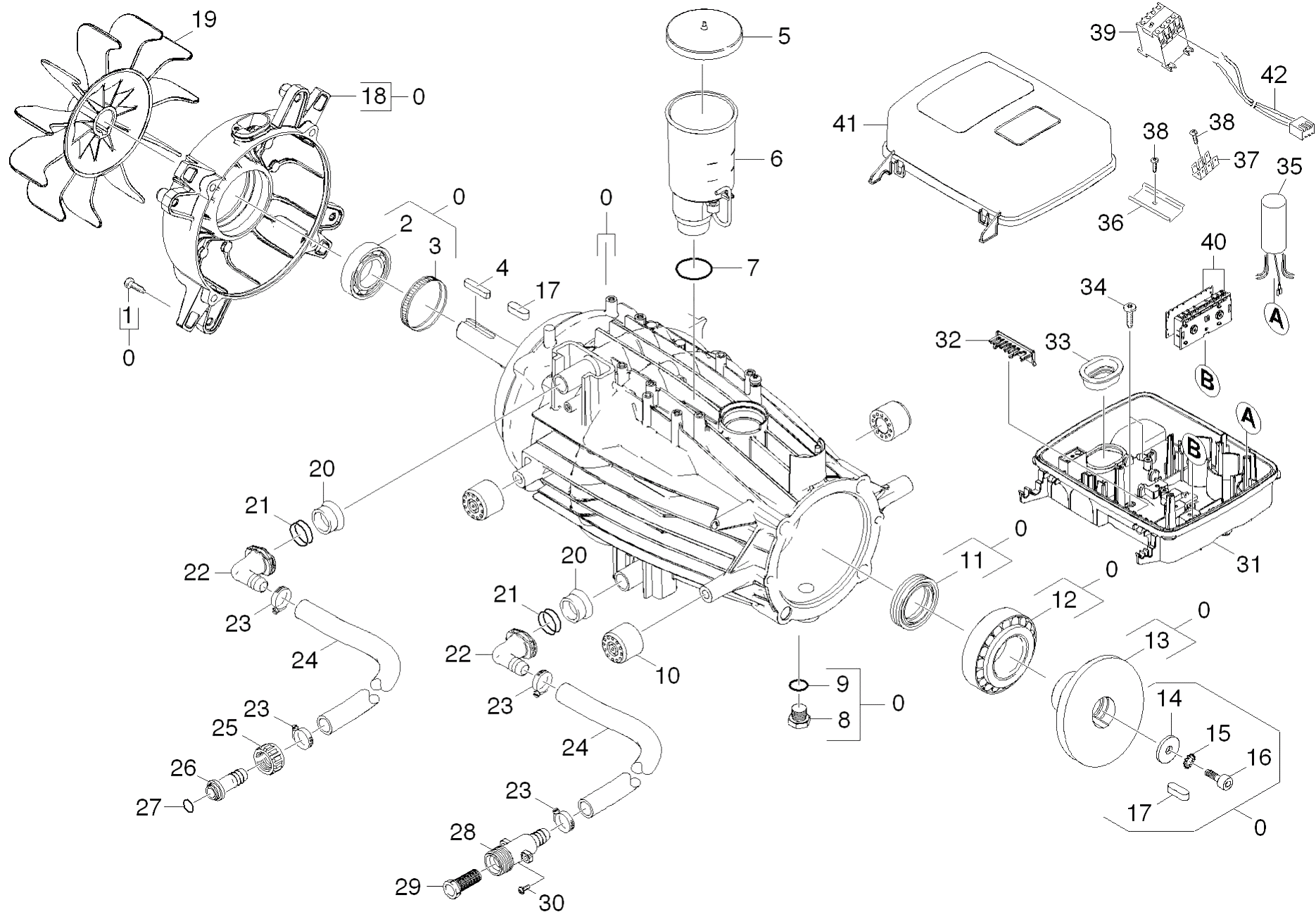

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.623-918.0 | Motor complete only for replacement | |
| 1 | 7.303-049.0 | Screw M6x25-ST-A3R (IN6RD) | |
| 2 | 6.401-253.0 | Ball bearing 6305-2Z | |
| 3 | 6.343-010.0 | Tolerance ring 62x10 | |
| 4 | 7.318-032.0 | Parallel key 6x6x32-C45R DIN 6885 | |
| 5 | 5.063-189.0 | Cover | |
| 6 | 4.070-904.0 | Tank only for replacement | |
| 7 | 6.362-722.0 | O-Ring seal 28,0 X 3,0 | |
| 8 | 5.411-100.0 | Screw plug | |
| 9 | 6.362-458.0 | O-Ring seal 11,0x2,0-NBR 70 | |
| 10 | 5.767-005.0 | Rubber buffer | |
| 11 | 7.367-009.0 | Radial shaft seal ring A35x52x7-NBR DIN | |
| 12 | 6.401-405.0 | Taper roller bearing | |
| 14 | 5.115-565.0 | Washer | |
| 15 | 7.312-159.0 | Toothed lock washer A8,4-FST-PH DIN 679 | |
| 16 | 7.306-041.0 | Cylinder head screw M8x20 -8.8-A2E ISO | |
| 17 | 7.318-030.0 | Parallel key 6x6x25 -C45R DIN 6885-1 | |
| 18 | 5.061-186.0 | Bearing cover B | |
| 19 | 5.600-087.0 | Blower wheel |
