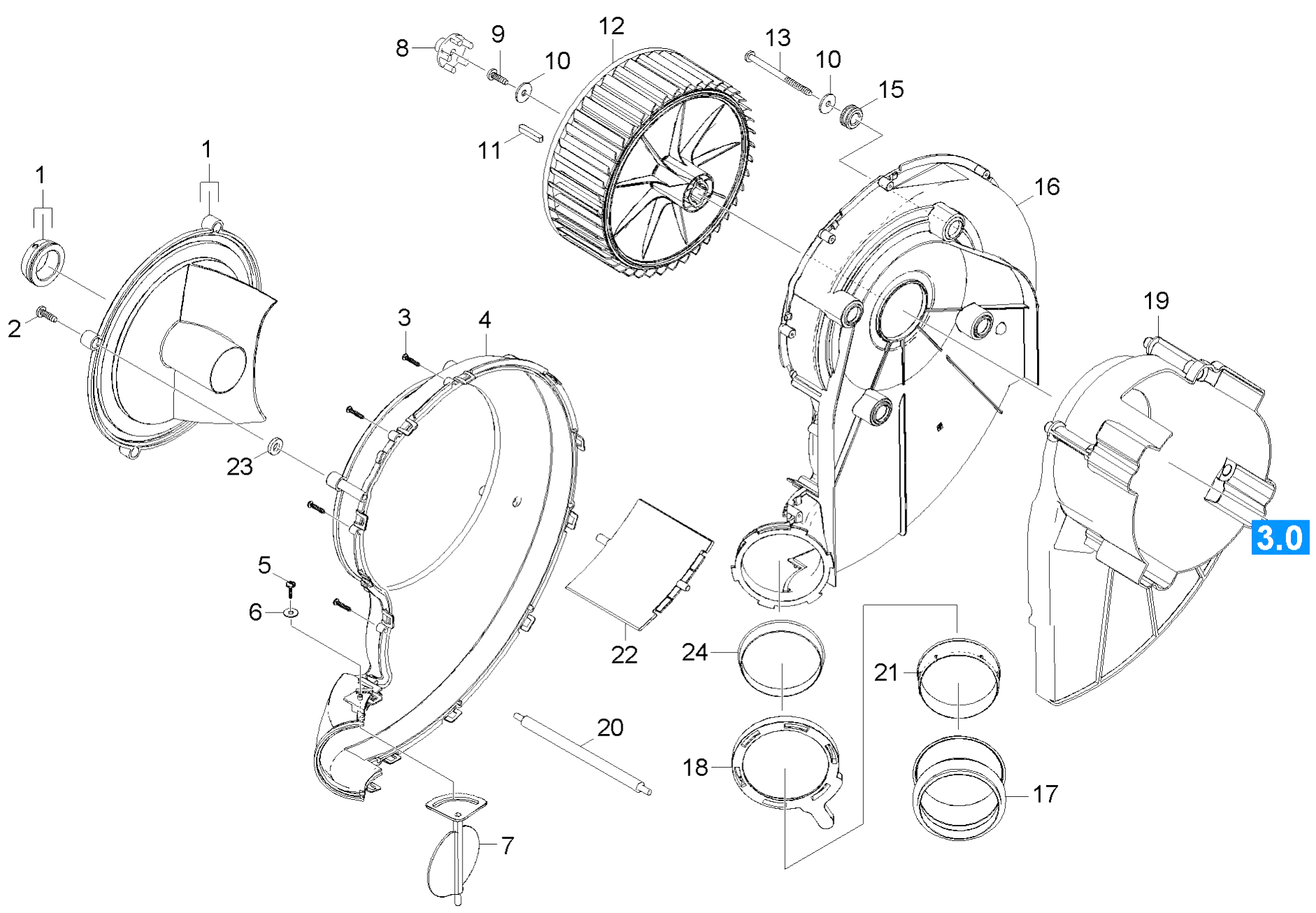

Karcher (Керхер) Воздуходувка (0.104-459.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.064-277.0	Cover internal part
2	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
3	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
4	5.064-238.0	Cover blower
5	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
6	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
7	5.606-009.0	Air flap
8	5.411-100.0	Screw plug
8	5.471-097.0	Coupler fuel pump
9	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
9	6.304-145.0	Screw M 6X20-R3R (IN6RD)
10	5.767-005.0	Rubber buffer
10	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
11	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
11	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
12	6.401-405.0	Taper roller bearing
12	5.600-084.0	Blower wheel
13	4.120-248.0	Wobble plate -nur fuer Ersatz-
13	6.303-517.0	Self-tapping screw M6x100
14	5.115-565.0	Washer
15	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
15	5.379-019.0	Rubber ring
16	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
16	5.605-304.0	Housing blower
17	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
17	5.195-252.0	Seal air circulation
18	5.061-186.0	Bearing cover B
18	5.075-036.0	Closure
19	5.600-087.0	Blower wheel
19	5.692-088.0	Air circulation
20	5.043-055.0	Holder
21	5.263-094.0	Tensioning part air circulation
22	5.912-003.0	Regulating flap blower
23	5.116-397.0	Washer
24	5.263-096.0	Tensioning part air circulation
30	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
31	5.061-319.0	Housing electric box
32	5.263-086.0	Tensioning part
33	5.365-285.0	Profile gasket
34	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
36	5.802-261.0	Mounting part
37	6.641-270.0	Plug
38	7.303-106.0	Screw 4x12 -10.9-R2R (IN6RD)
39	6.632-334.0	Power contactor LC1 D32 B7
40	2.885-054.0	Frame circuit board complete
41	5.064-226.0	Cover electric box
42	6.649-384.0	Cable 2x0,35 350mm
