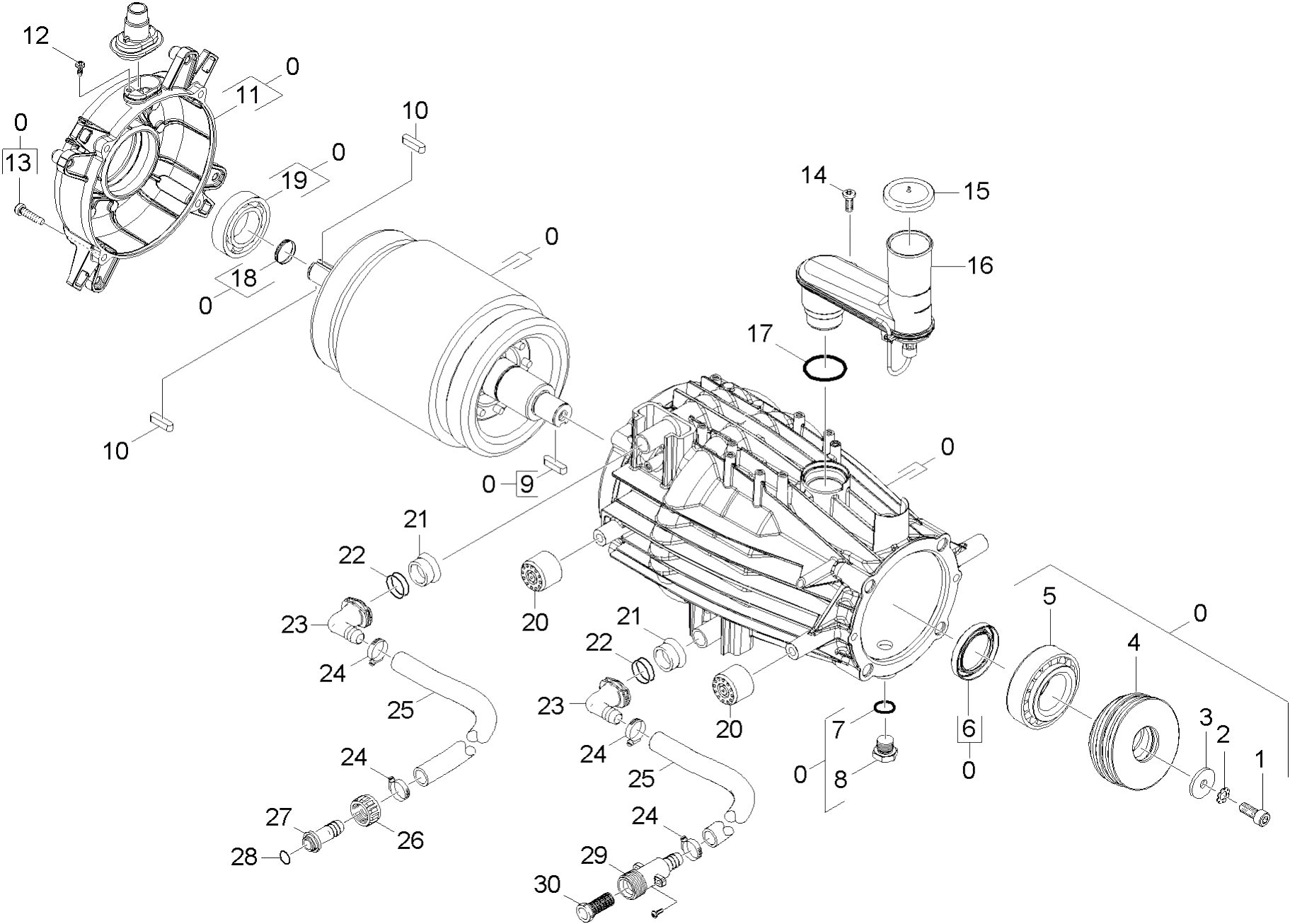

Karcher (Керхер) Мотор (0.113-364.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.624-027.0	Motor complete nur fuer Ersatz
0	4.624-148.0	Motor complete only for replacement
1	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
2	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
3	5.115-565.0	Washer
4	4.120-251.0	Wobble plate complete only for replaceme
4	4.120-247.0	Wobble plate complete only for replaceme
5	6.401-405.0	Taper roller bearing
6	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
7	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
8	5.411-100.0	Screw plug
9	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
10	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
11	5.061-186.0	Bearing cover B
12	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
13	7.303-049.0	Screw M6x25-ST-A3R (IN6RD)
14	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
15	5.063-195.0	Cover
16	4.070-748.0	Tank oil complete
17	6.362-722.0	O-Ring seal 28,0 X 3,0
18	6.343-010.0	Tolerance ring 62x10
19	6.401-253.0	Ball bearing 6305-2Z
