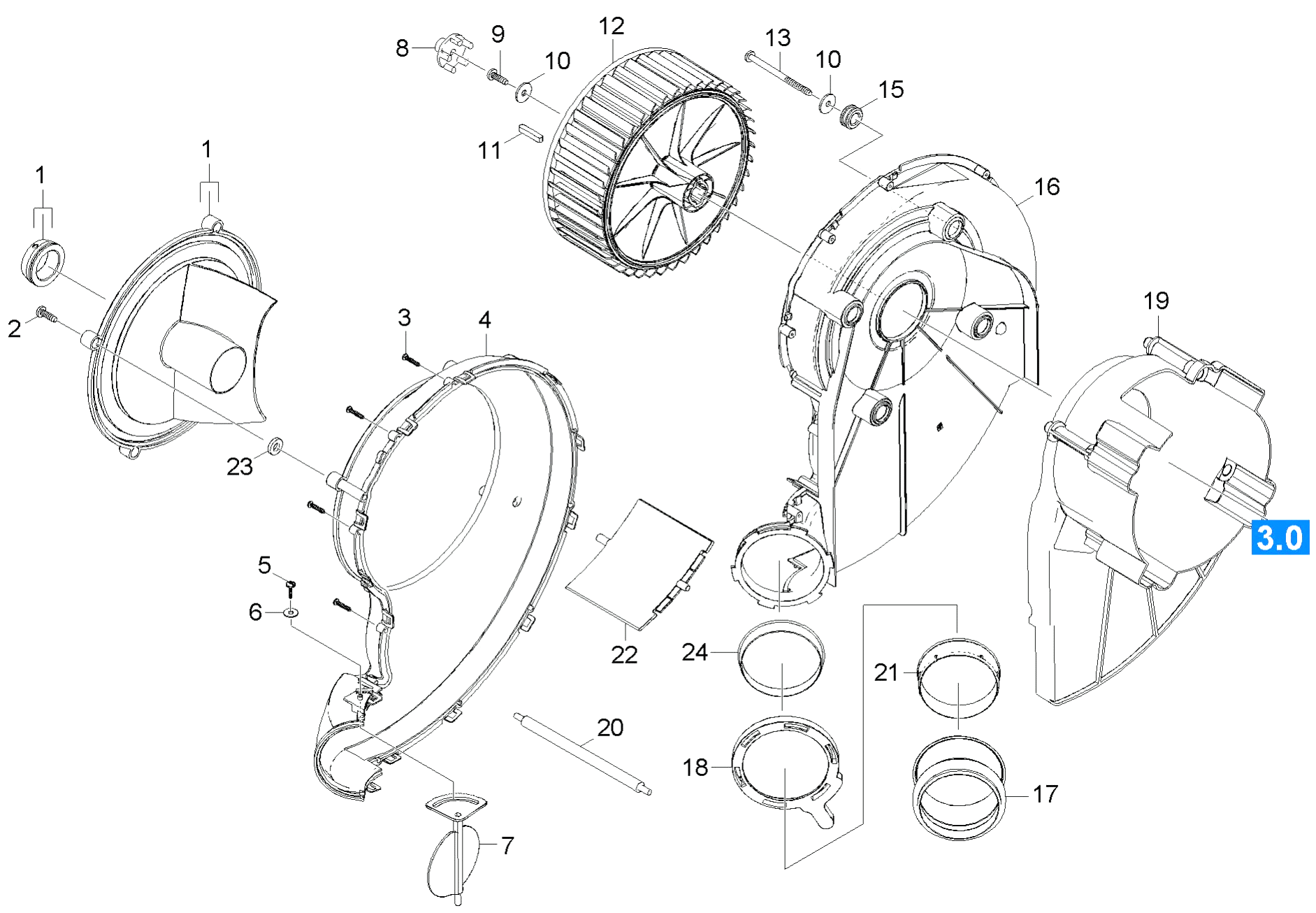

Karcher (Керхер) Воздуходувка (0.104-459.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.064-277.0	Cover internal part
2	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
3	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
4	5.064-238.0	Cover blower
5	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
6	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
7	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
7	5.606-009.0	Air flap
8	5.411-100.0	Screw plug
8	5.471-097.0	Coupler fuel pump
9	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
9	6.304-145.0	Screw M 6X20-R3R (IN6RD)
10	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
10	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
11	5.061-186.0	Bearing cover B
11	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
12	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
12	5.600-084.0	Blower wheel
13	7.303-049.0	Screw M6x25-ST-A3R (IN6RD)
13	6.303-517.0	Self-tapping screw M6x100
14	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
15	5.064-457.0	Cover qusty grey SAE 90
15	5.379-019.0	Rubber ring
16	4.070-887.0	Tank oil complete
16	5.605-304.0	Housing blower
17	6.362-722.0	O-Ring seal 28,0 X 3,0
17	5.195-252.0	Seal air circulation
18	6.343-010.0	Tolerance ring 62x10
18	5.075-036.0	Closure
19	6.401-253.0	Ball bearing 6305-2Z
19	5.692-088.0	Air circulation
20	5.767-005.0	Rubber buffer
20	5.043-055.0	Holder
21	5.110-341.0	Sleeve
21	5.263-094.0	Tensioning part air circulation
22	6.362-579.0	O-Ring seal 17,5 X 3,5
22	5.912-003.0	Regulating flap blower
23	5.427-415.0	Manifold
23	5.116-397.0	Washer
24	7.373-022.0	Hose clip A-16-27x9 -W2-2 DIN3017
24	5.263-096.0	Tensioning part air circulation
25	6.388-719.0	FLEX HOSE(CUT TO REQD LENGTH-M'S)
26	5.310-062.0	Nut
27	5.443-285.0	Hose stem
28	6.362-078.0	O-Ring seal 13,3x2,4
29	5.427-432.0	Manifold
30	6.414-141.0	Strainer
31	5.365-336.0	Profile gasket
