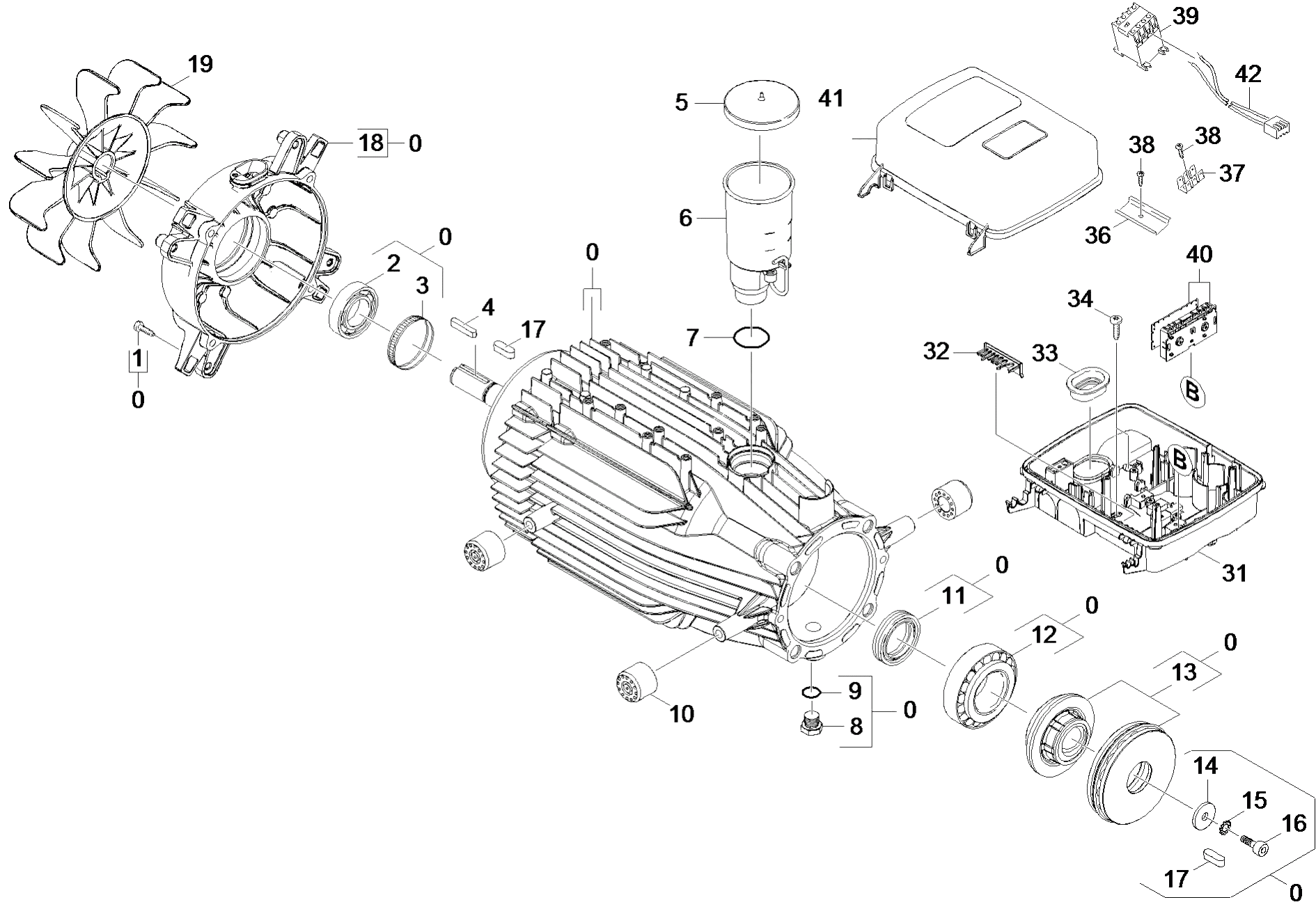

Karcher (Керхер) Мотор (0.115-935.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.624-131.0	Motor complete only for replacement
1	7.303-049.0	Screw M6x25-ST-A3R (IN6RD)
2	6.401-253.0	Ball bearing 6305-2Z
3	6.343-010.0	Tolerance ring 62x10
4	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
5	5.064-459.0	Cover grey
6	4.070-904.0	Tank only for replacement
7	6.362-722.0	O-Ring seal 28,0 X 3,0
8	5.411-100.0	Screw plug
9	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
10	5.767-005.0	Rubber buffer
11	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
12	6.401-405.0	Taper roller bearing
13	4.120-248.0	Wobble plate -nur fuer Ersatz-
14	5.115-565.0	Washer
15	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
16	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
17	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
18	5.061-186.0	Bearing cover B
19	5.600-087.0	Blower wheel
30	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
31	5.061-319.0	Housing electric box
32	5.263-086.0	Tensioning part
33	5.365-285.0	Profile gasket
34	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
36	5.802-261.0	Mounting part
37	6.641-270.0	Plug
38	7.303-106.0	Screw 4x12 -10.9-R2R (IN6RD)
39	4.632-002.0	Contactor -nur fuer Ersatz-
40	2.885-054.0	Frame circuit board complete
41	5.064-226.0	Cover electric box
42	6.649-384.0	Cable 2x0,35 350mm
