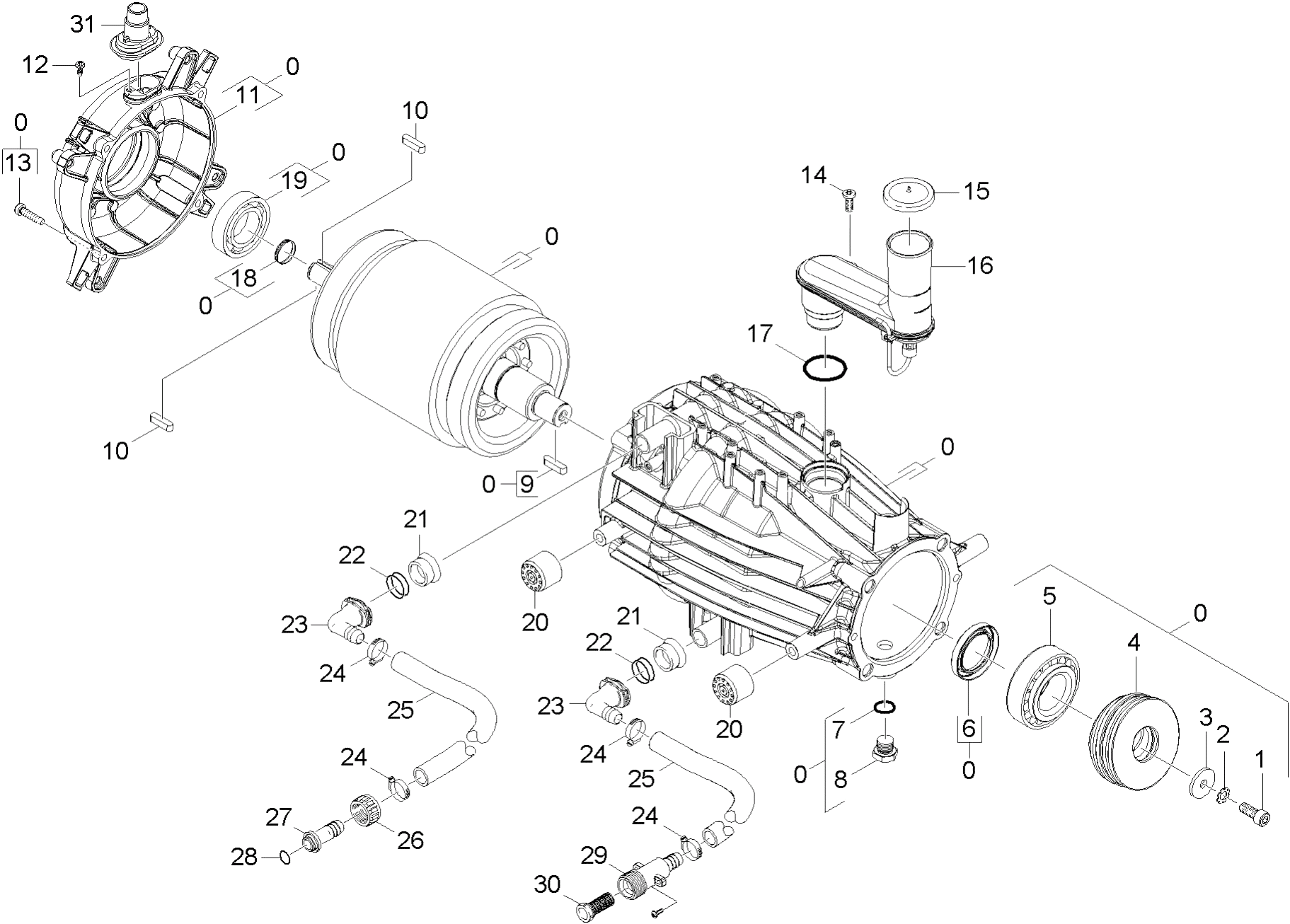

Karcher (Керхер) Мотор (0.110-876.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.624-027.0	Motor complete nur fuer Ersatz
1	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
2	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
3	5.115-565.0	Washer
4	4.120-247.0	Wobble plate complete only for replaceme
5	6.401-405.0	Taper roller bearing
6	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
7	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
8	5.411-100.0	Screw plug
9	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
10	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
11	5.061-186.0	Bearing cover B
12	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
13	7.303-049.0	Screw M6x25-ST-A3R (IN6RD)
14	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
15	5.063-195.0	Cover
16	4.070-748.0	Tank oil complete
17	6.362-722.0	O-Ring seal 28,0 X 3,0
18	6.343-010.0	Tolerance ring 62x10
19	6.401-253.0	Ball bearing 6305-2Z
20	5.767-005.0	Rubber buffer
21	5.110-341.0	Sleeve
22	6.362-579.0	O-Ring seal 17,5 X 3,5
23	5.427-415.0	Manifold
24	7.373-022.0	Hose clip A-16-27x9 -W2-2 DIN3017
25	6.388-719.0	FLEX HOSE(CUT TO REQD LENGTH-M'S)
26	5.310-062.0	Nut
27	5.443-224.0	Hose stem
