Karcher (Керхер) Мотор (0.104-491.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

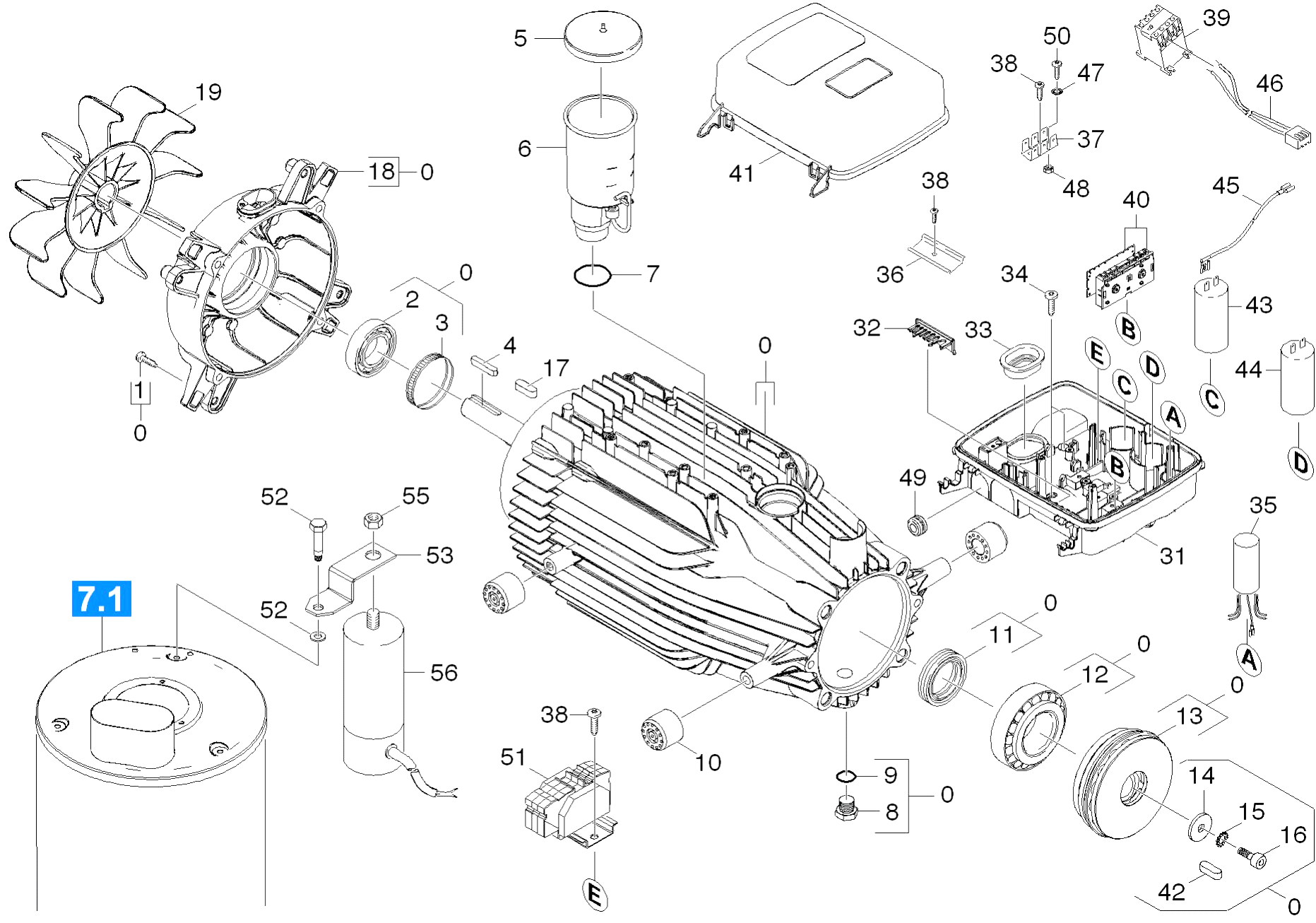

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.623-919.0	Motor complete only for replacement
0	4.623-961.0	Motor complete nur fuer Ersatz
0	4.623-963.0	Motor complete only for replacement
1	7.303-049.0	Screw M6x25-ST-A3R (IN6RD)
2	6.401-253.0	Ball bearing 6305-2Z
3	6.343-010.0	Tolerance ring 62x10
4	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
5	5.064-312.0	Крышка масло
6	4.070-904.0	Tank only for replacement
7	6.362-722.0	O-Ring seal 28,0 X 3,0
8	5.411-100.0	Screw plug
9	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
10	5.767-005.0	Rubber buffer
11	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
12	6.401-405.0	Taper roller bearing
13	4.120-233.0	Wobble plate complete only for replaceme
14	5.115-565.0	Washer
15	5.063-195.0	Cover
15	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
16	4.070-749.0	Tank oil complete
16	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
17	6.362-161.0	O-Ring seal 19,3 X 2,4
17	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
18	6.343-028.0	Распорное монтажное кольцо
18	5.061-186.0	Bearing cover B
19	7.401-134.0	Ball bearing 6203-2RS-WAELZLAGST DIN 625
19	5.600-087.0	Blower wheel
20	5.767-005.0	Rubber buffer
21	5.600-098.0	Blower wheel
22	5.692-117.0	Air circulation extension
23	5.365-336.0	Profile gasket
30	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
31	5.061-319.0	Housing electric box
31	5.033-447.0	Housing electric box
32	5.263-089.0	Tensioning part
32	5.263-092.0	Tensioning part
33	5.365-285.0	Profile gasket
34	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
35	4.828-010.0	Interference suppressor complete
35	6.661-286.0	Interference suppressor one-pole
36	5.802-261.0	Mounting part
37	6.641-270.0	Plug
38	7.303-106.0	Screw 4x12 -10.9-R2R (IN6RD)
39	6.632-334.0	Power contactor LC1 D32 B7
