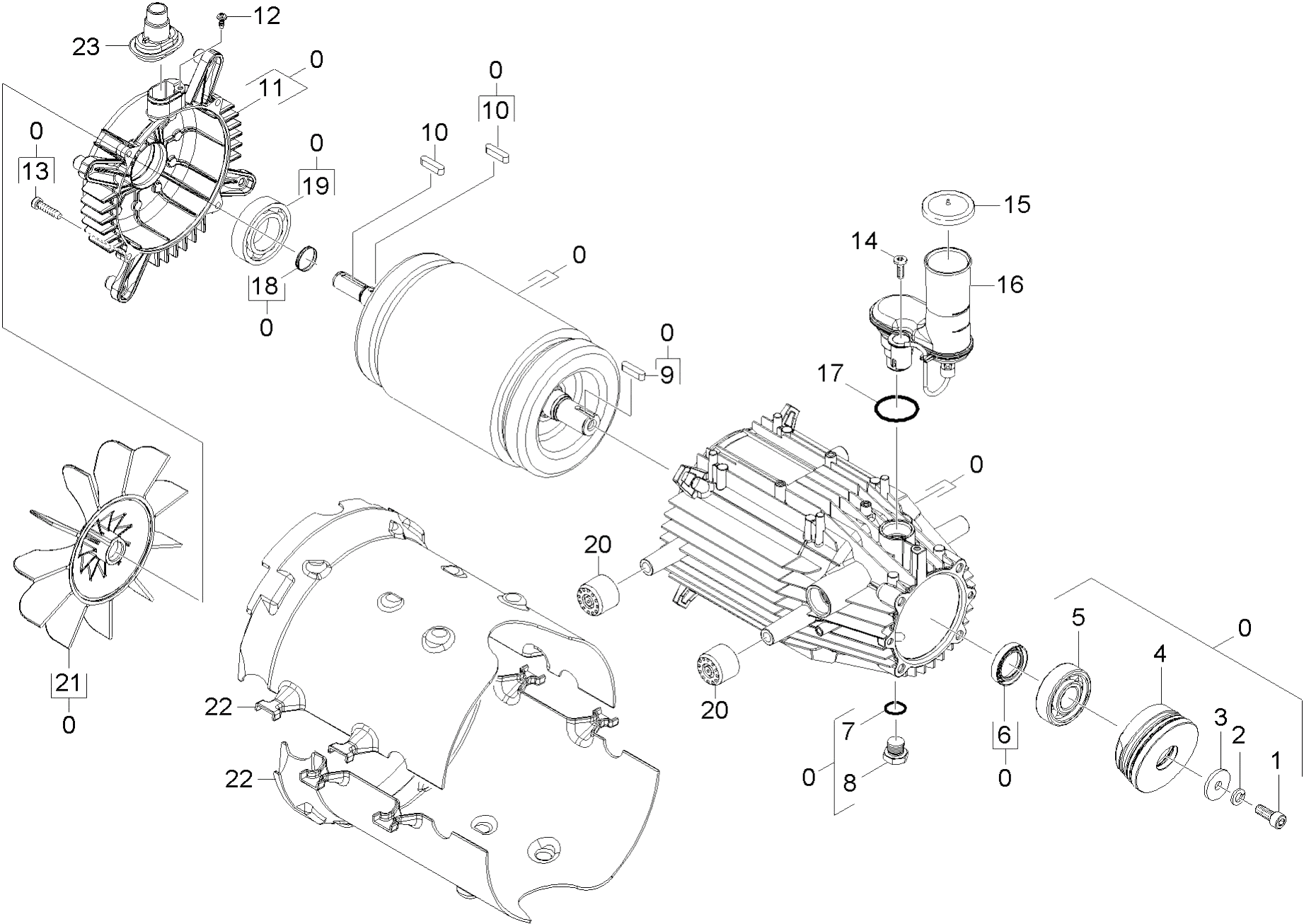

Karcher (Керхер) Мотор (0.113-033.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.624-029.0	Motor complete nur fuer Ersatz
1	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
2	7.313-004.0	Spring washer B 8-FSt-A3E DIN 127
3	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
4	4.120-244.0	Wobble plate complete only for replaceme
5	7.401-155.0	Ball bearing 6304-WAELZLAGERST DIN 625
6	7.367-001.0	Radial shaft seal ring A24x37x7 -NBR DI
7	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
8	5.411-100.0	Screw plug
9	7.318-003.0	Parallel key 5X 5X 18-C45R DIN 6885
10	7.318-005.0	Parallel key 5x5x28-C45R DIN 6885
11	5.064-336.0	Bearing cover B
12	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
13	7.303-042.0	Screw M5x25 -St-R2R (In6Rd)
14	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
15	5.064-367.0	Cover oil
16	4.070-719.0	Tank oil complete
17	6.362-161.0	O-Ring seal 19,3 X 2,4
18	6.343-028.0	Распорное монтажное кольцо
19	7.401-134.0	Ball bearing 6203-2RS-WAELZLAGST DIN 625
20	5.767-005.0	Rubber buffer
21	5.600-098.0	Blower wheel
22	5.692-117.0	Air circulation extension
23	5.365-336.0	Profile gasket
