Karcher (Керхер) Мотор (0.113-096.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

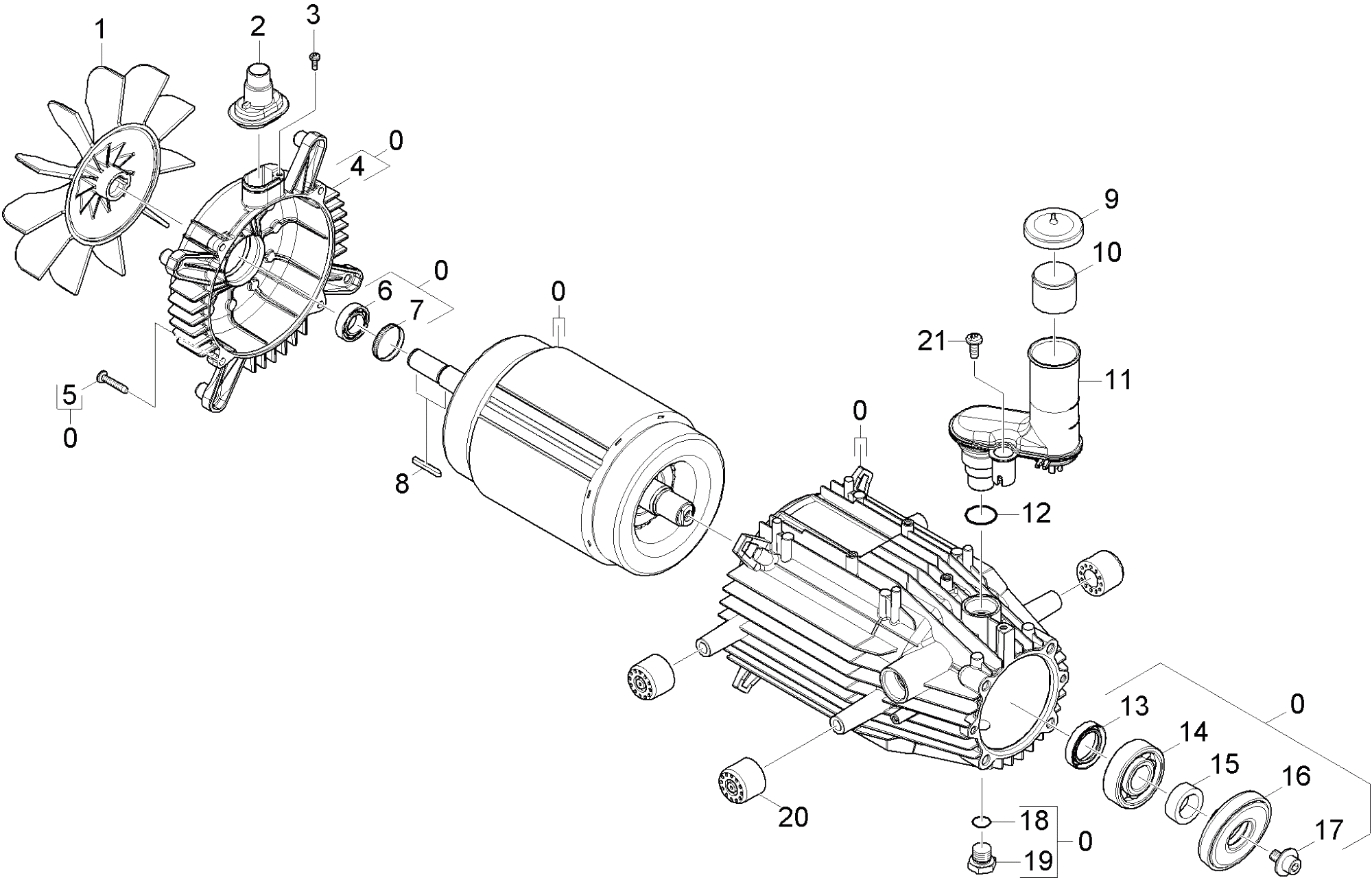

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.624-185.0	Motor complete only for replacement
0	4.624-098.0	Motor complete only for replacement
1	5.600-098.0	Blower wheel
2	5.365-336.0	Profile gasket
3	5.107-291.0	Bar shearing shackle HDS upright U
3	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
4	5.044-216.0	Holder
4	5.064-336.0	Bearing cover B
5	5.065-732.0	Rear panel HDS upright
5	7.303-042.0	Screw M5x25 -St-R2R (In6Rd)
6	5.033-556.0	Chassis HDS upright
6	7.401-134.0	Ball bearing 6203-2RS-WAELZLAGST DIN 625
7	5.105-649.0	Wheel axle HDS upright
7	6.343-028.0	Распорное монтажное кольцо
8	4.515-320.0	Wheel complete
8	7.318-005.0	Parallel key 5x5x28-C45R DIN 6885
9	2.889-086.0	Set wheel cap
9	5.064-367.0	Cover oil
10	5.057-062.0	Support
10	5.132-107.0	Plug
11	4.070-719.0	Tank oil complete
12	5.071-215.0	Tank fuel HDS upright
12	6.362-161.0	O-Ring seal 19,3 X 2,4
13	4.645-315.0	Cover tank only for replacement
13	7.367-001.0	Radial shaft seal ring A24x37x7 -NBR DI
14	7.303-047.0	Screw M6x16 -St-R3R (In6Rd)
14	7.401-155.0	Ball bearing 6304-WAELZLAGERST DIN 625
15	4.649-044.0	Cable with plug nur f?r Ersatz
15	5.116-144.0	Washer
16	5.767-016.0	Rubber buffer
16	6.401-289.0	Wobble plate
17	6.363-565.0	O-Ring seal 60x4
17	9.086-169.0	Болт с шайбой M8x16
18	5.731-039.0	Filter
18	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
19	6.343-162.0	Lock washer -25
19	5.411-100.0	Screw plug
20	5.767-005.0	Rubber buffer
21	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
