Karcher (Керхер) Мотор (0.112-897.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

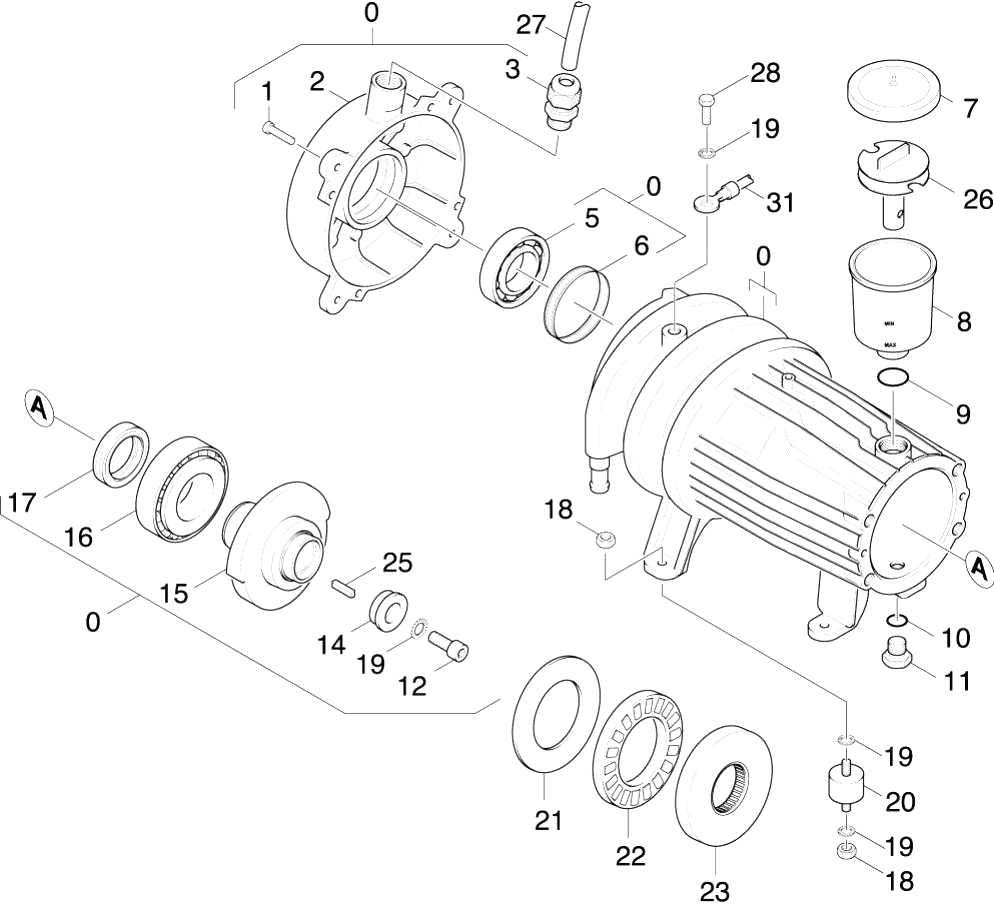

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.623-757.0	Motor complete
0	4.623-788.0	Motor complete only for replacement
0	4.623-835.0	Motor complete only for replacement
0	4.623-833.0	Motor complete only for replacement
0	4.623-789.0	Motor complete only for replacement
1	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
2	5.063-452.0	Cover
3	6.641-356.0	Cable gland PG16
5	6.401-253.0	Ball bearing 6305-2Z
6	6.343-010.0	Tolerance ring 62x10
7	5.063-237.0	Cover
8	5.070-048.0	Box
9	6.362-168.0	O-Ring seal 22,3 X 2,4-NBR 70
10	6.363-273.0	O-Ring seal 11,0 x 2,0
11	5.411-100.0	Screw plug
12	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
13	7.313-051.0	Spring washer 8-FST-A3E DIN 7980
14	5.115-540.0	Washer
15	4.120-182.0	Wobble plate complete
15	4.120-189.0	Wobble plate complete
15	4.120-159.0	Wobble plate complete
16	6.401-225.0	Taper roller bearing 41
17	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
18	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
19	7.312-166.0	Toothed lock washer A8,4-FSt-A3E DIN 67
20	6.339-060.0	Rubber buffer M8
21	6.401-122.0	Rotor disc
22	6.401-123.0	Axial roller cage
23	6.401-124.0	Thrust washer with cage
25	7.318-089.0	Parallel key A 8x5x25-C45R DIN 6885
26	5.030-389.0	Moulded part
27	6.642-011.0	Insulating hose 10
28	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
31	4.820-430.0	Cable green/yellow 1,5mm?x450mm
40	2.885-241.0	Frame circuit board complete
41	5.064-400.0	Cover electric box
43	7.306-057.0	Screw M4x10 -8.8-R2R (In6Rd)
44	7.312-163.0	Toothed lock washer A4,3-FST-PH DIN 679
45	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
46	6.401-122.0	Rotor disc
47	6.401-123.0	Axial roller cage
48	6.401-124.0	Thrust washer with cage
