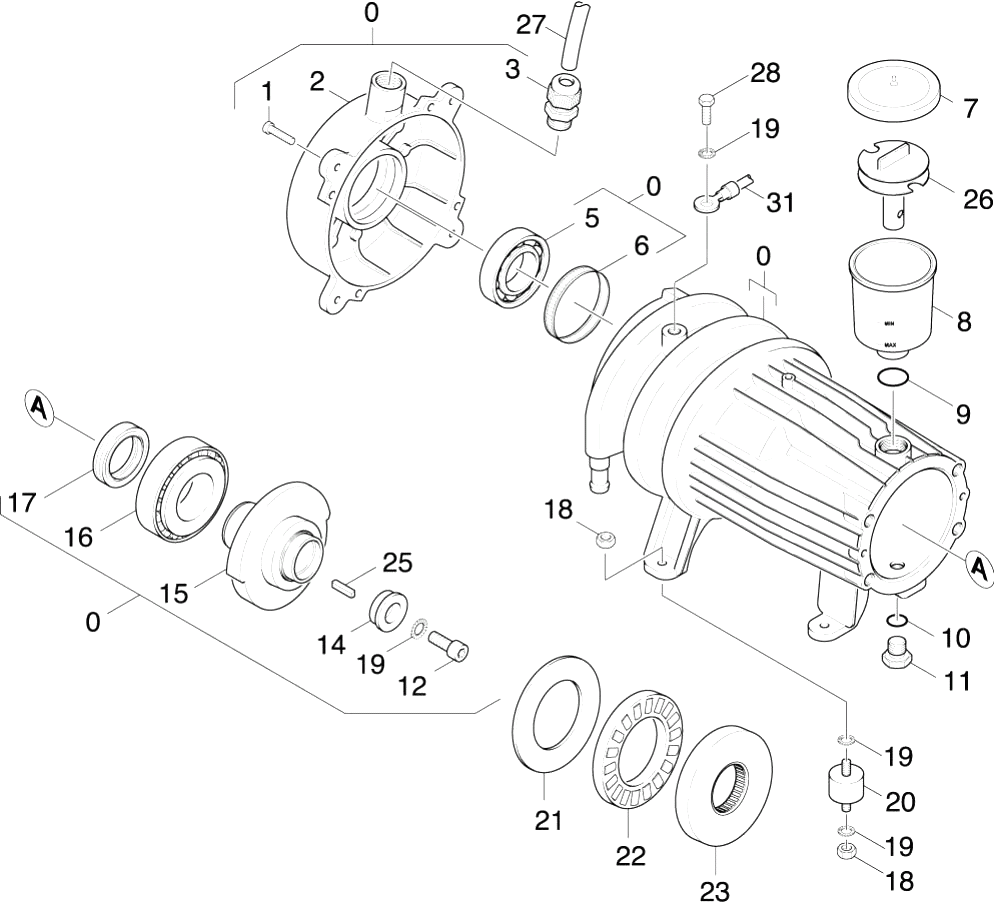

Karcher (Керхер) Мотор (0.112-897.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-788.0 |
Motor complete only for replacement |
|
| 0 |
4.623-757.0 |
Motor complete |
|
| 0 |
4.623-789.0 |
Motor complete only for replacement |
|
| 0 |
4.623-833.0 |
Motor complete only for replacement |
|
| 0 |
4.623-835.0 |
Motor complete only for replacement |
|
| 1 |
7.303-048.0 |
Screw M6x20 -St-R3R (In6Rd) |
|
| 2 |
5.063-452.0 |
Cover |
|
| 3 |
6.641-356.0 |
Cable gland PG16 |
|
| 5 |
6.401-253.0 |
Ball bearing 6305-2Z |
|
| 6 |
6.343-010.0 |
Tolerance ring 62x10 |
|
| 7 |
5.063-237.0 |
Cover |
|
| 8 |
5.070-048.0 |
Box |
|
| 9 |
6.362-168.0 |
O-Ring seal 22,3 X 2,4-NBR 70 |
|
| 10 |
6.363-273.0 |
O-Ring seal 11,0 x 2,0 |
|
| 11 |
5.411-100.0 |
Screw plug |
|
| 12 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 13 |
4.120-189.0 |
Wobble plate complete |
|
| 13 |
4.120-212.0 |
Wobble plate complete |
|
| 13 |
7.313-051.0 |
Spring washer 8-FST-A3E DIN 7980 |
|
| 14 |
5.115-540.0 |
Washer |
|
| 15 |
7.312-166.0 |
Toothed lock washer A8,4-FSt-A3E DIN 67 |
|
| 15 |
4.120-159.0 |
Wobble plate complete |
|
| 15 |
4.120-182.0 |
Wobble plate complete |
|
| 15 |
4.120-189.0 |
Wobble plate complete |
|
| 16 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 16 |
6.401-225.0 |
Taper roller bearing 41 |
|
| 17 |
7.318-089.0 |
Parallel key A 8x5x25-C45R DIN 6885 |
|
| 17 |
7.367-009.0 |
Radial shaft seal ring A35x52x7-NBR DIN |
|
| 18 |
5.061-186.0 |
Bearing cover B |
|
| 18 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 19 |
4.822-784.0 |
Cable AWG 14x120-SW |
|
| 19 |
7.312-166.0 |
Toothed lock washer A8,4-FSt-A3E DIN 67 |
|
| 20 |
5.110-341.0 |
Sleeve |
|
| 20 |
6.339-060.0 |
Rubber buffer M8 |
|
| 21 |
6.362-579.0 |
O-Ring seal 17,5 X 3,5 |
|
| 21 |
6.401-122.0 |
Rotor disc |
|
| 22 |
5.427-415.0 |
Manifold |
|
| 22 |
6.401-123.0 |
Axial roller cage |
|
| 23 |
7.373-022.0 |
Hose clip A-16-27x9 -W2-2 DIN3017 |
|
| 23 |
6.401-124.0 |
Thrust washer with cage |
|
| 24 |
6.390-320.0 |
Hose DN 16 |
|
| 25 |
5.310-061.0 |
"""Nut R 3/4"""" """ |
|
| 25 |
7.318-089.0 |
Parallel key A 8x5x25-C45R DIN 6885 |
|
| 26 |
5.443-224.0 |
Hose stem |
|
| 26 |
5.030-389.0 |
Moulded part |
|
| 27 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 27 |
6.642-011.0 |
Insulating hose 10 |
|
| 28 |
5.427-432.0 |
Manifold |
|
| 28 |
6.303-031.0 |
Screw M8x16-ST-A2R DIN 7500-1 |
|
| 29 |
6.414-141.0 |
Strainer |
|
| 30 |
7.303-086.0 |
Screw 5x30 -10.9-R2R (K-In6Rd) |
|
| 31 |
5.062-312.0 |
Housing electric box |
|
| 31 |
4.820-430.0 |
Cable green/yellow 1,5mm?x450mm |
|
| 32 |
5.263-100.0 |
Tensioning part |
|
| 33 |
5.365-302.0 |
Profile gasket |
|
| 34 |
6.303-153.0 |
Screw M5x15-ST-R2R (IN6RD) |
|
| 35 |
6.661-304.0 |
Capacitor 50µF |
|
| 36 |
5.802-261.0 |
Mounting part |
|
| 37 |
6.641-270.0 |
Plug |
|
| 38 |
6.661-305.0 |
Capacitor 40µF |
|
| 39 |
6.632-334.0 |
Power contactor LC1 D32 B7 |
|
| 40 |
2.885-241.0 |
Frame circuit board complete |
|
| 41 |
5.064-400.0 |
Cover electric box |
|
| 43 |
7.306-057.0 |
Screw M4x10 -8.8-R2R (In6Rd) |
|
| 44 |
7.312-163.0 |
Toothed lock washer A4,3-FST-PH DIN 679 |
|
| 45 |
7.311-001.0 |
Hexagon nut M4 -8-A2E ISO 4032 |
|
| 46 |
6.401-122.0 |
Rotor disc |
|
| 47 |
6.401-123.0 |
Axial roller cage |
|
| 48 |
6.401-124.0 |
Thrust washer with cage |
|
